C41-40kg Self-Contained Power Hammer for Sale Blacksmith Power Forging Hammer
Zaozhuang Tok Machinery Co., Ltd.- Type：Forging Hammer
- Forging Forming Method：Mold Forging
- Power Source：Pneumatic
- Feature：Precision
- Certification：CCC, CE
- Warranty：12 Months
Base Info
- Model NO.：C41-40kg
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Hammer：Small Power Hammer
- Power Hammer：40 Kg
- Transport Package：1080× 600× 1389
- Specification：1350 kgs
- Trademark：tokmc
- Origin：China
- HS Code：8462109000
- Production Capacity：100 Sets, Year
Description
Basic Info.
Model NO. C41-40kg Customized Customized Advantage Use Widely Condition New Hammer Small Power Hammer Power Hammer 40 Kg Transport Package 1080× 600× 1389 Specification 1350 kgs Trademark tokmc Origin China HS Code 8462109000 Production Capacity 100 Sets/ YearProduct Description

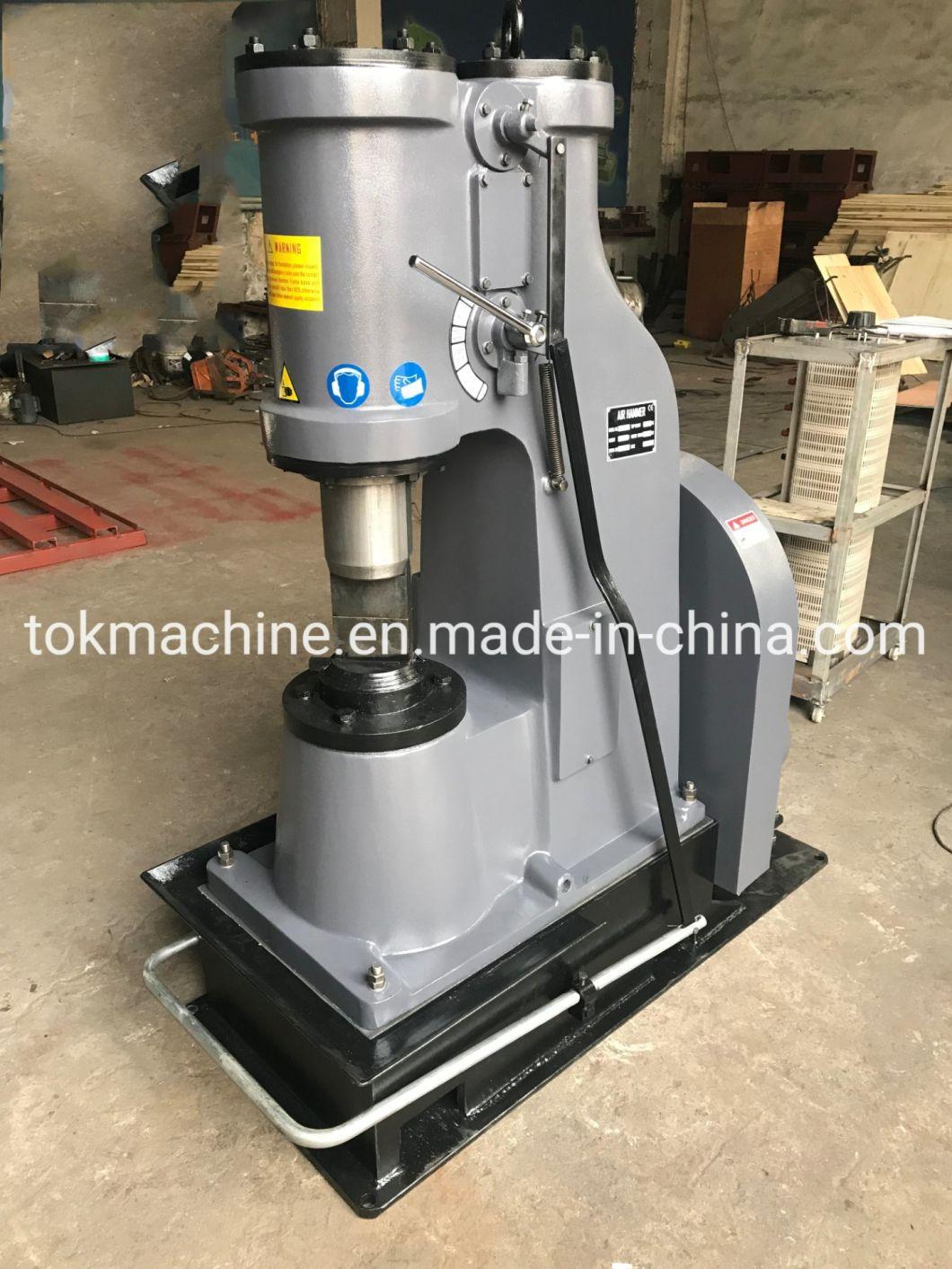

Small Pneumatic Power Hammer C41-40kg Air HammerMain feature
1. The air hammer is used for forging and shaping work pieces
2. Easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 2000kgs
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. forging in bolster dies.

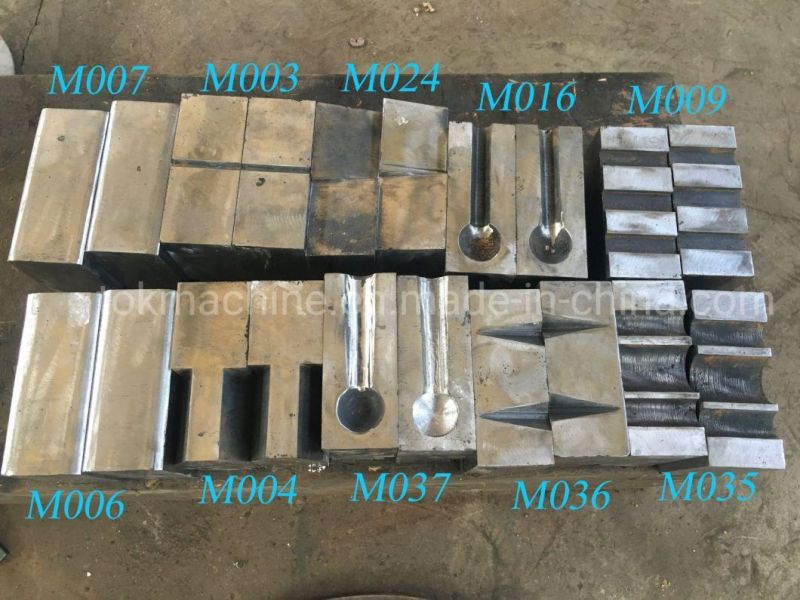

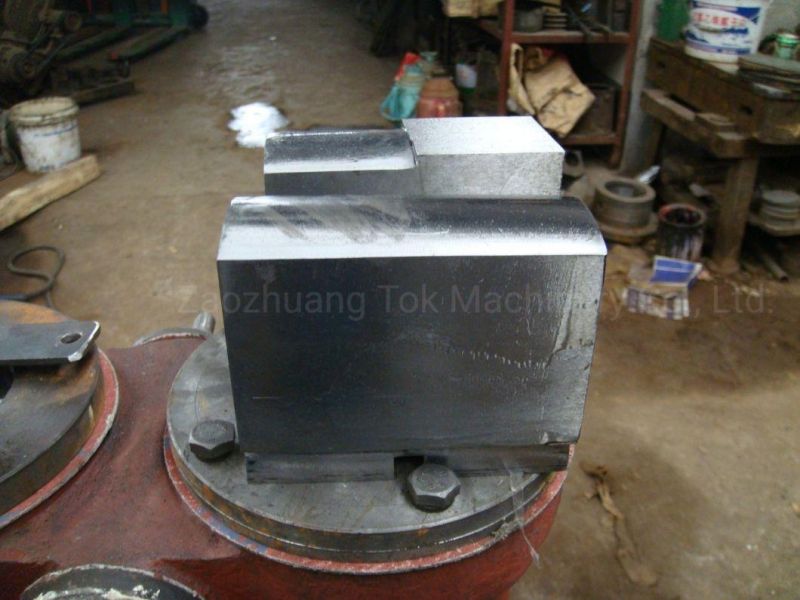

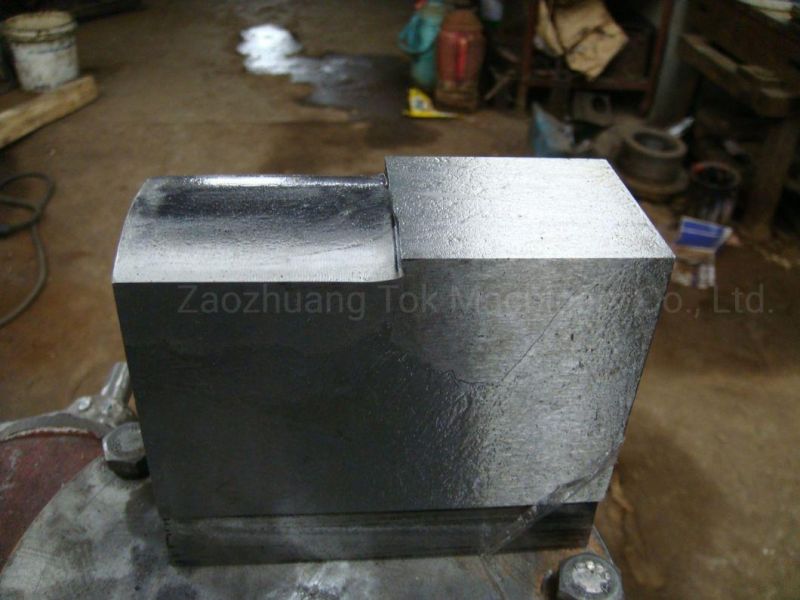

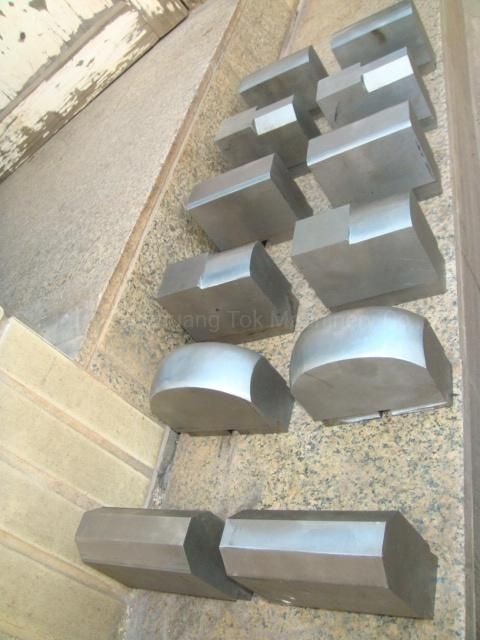

Optional dies
| Specifications | C41-150kg | C41-75kg | C41-40kg |
| Attack energy(J) | 200 | 100 | 53 |
| Work sector altitude(mm) | 370 | 300 | 245 |
| Attack number of times(min-1) | 180 | 210 | 250 |
| Malleable side steel length of side(mm) | 130×130 | 65×65 | 52×52 |
| Malleable round steel length of side(mm) | Φ145 | Φ85 | Φ68 |
| Uses for patrs the power(mm) | 15 | 7.5 | 4 |
| Electrical rotational speed(r.p.m) | 1470 | 1440 | 1440 |
| Anvil weight(kg) | 1800 | 850 | 400 |
| Gross weight(kg) | 5060 | 2800 | 1350 |
| Outlook size(mm) | 2080×1240×2350 | 1600×950×1950 | 1080×600×1389 |
