Compact Press Feeding Line Decoiler Straighteners Servo Roll Feeders
GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.- After-sales Service：One Year Warranty
- Type：Straightener Feeder
- Usage：Material Straightening
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Large Deformation
Base Info
- Model NO.：MAC4-1000F
- Certification：TUV, ISO9001, CE
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Stock Width(mm)：70~1000
- Stock Thickness(mm)：0.6~6.0
- Line Speed(M/Min)：16~24
- Coil Weight(Kg)：7000
- Work Roll Number：Upper6,Lower5
- Main Motor：AC 11.0
- Transport Package：Wooden Box or Vacuum Packing
- Specification：3380*2600*2310mm
- Trademark：RUIHUI
- Origin：China, Dongguan
- HS Code：8462299000
- Production Capacity：20 Sets Per Month
Description
Overview
3 Phase 220V/380V/50HZOperating Air(Mpa) 0.49 0.49 0.49 0.49 0.49
Stock Thickness(mm)0.6 600 800 1000 1300 1600 1.0 600 800 1000 1300 1600 1.2 600 800 1000 1300 1600 1.4 600 800 1000 1300 1600 1.6 600 800 1000 1300 1600 2.0 600 800 1000 1300 1600 2.5 600 800 1000 1157 1600 3.2 550 609 810 800 1350 4.0 430 481 605 710 800 5.0 292 390 420 490 714 6.0 203 271 285 245 600
Product Description
Product Parameters
3 Phase 220V/380V/50HZ
Stock Thickness(mm)

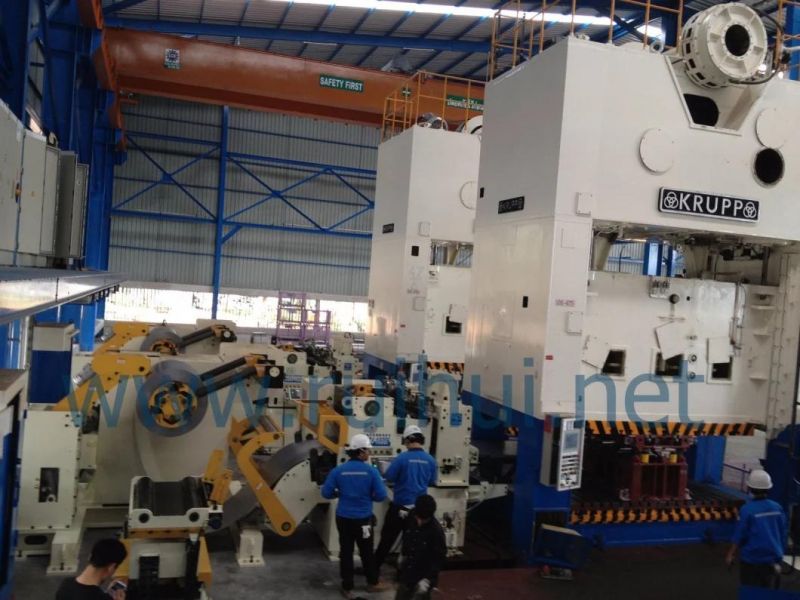

Detailed Photos
Company Profile
Why choose us?
1st,We have a high level of technical research and development team;
2nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3rd, our philosophy: quality is the social responsibility;
4th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5th,We have a highly effective after-sales service team and get customer approval.
