• Model NO.：S25
• Certification：CE, ISO9001
• Type：Sand Casting

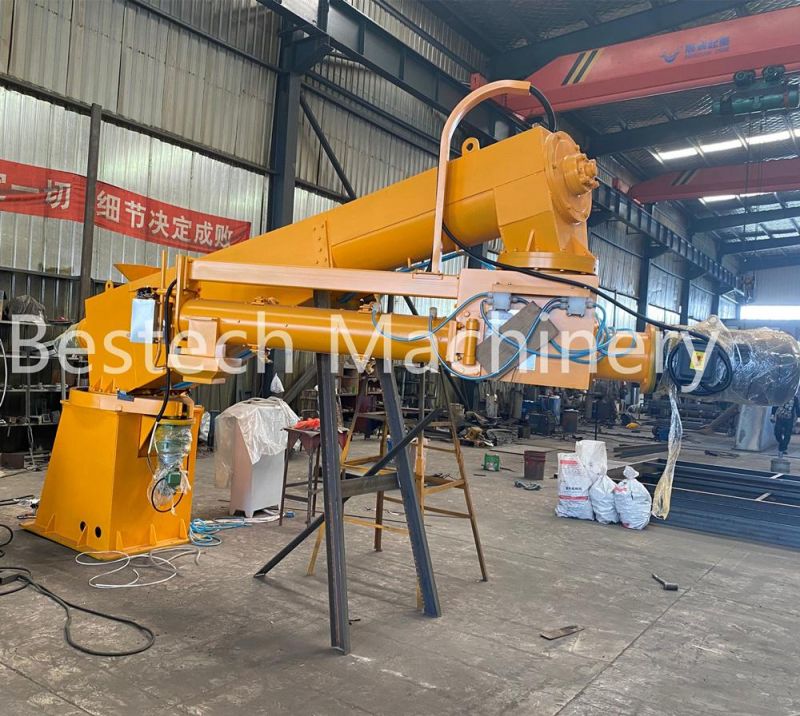

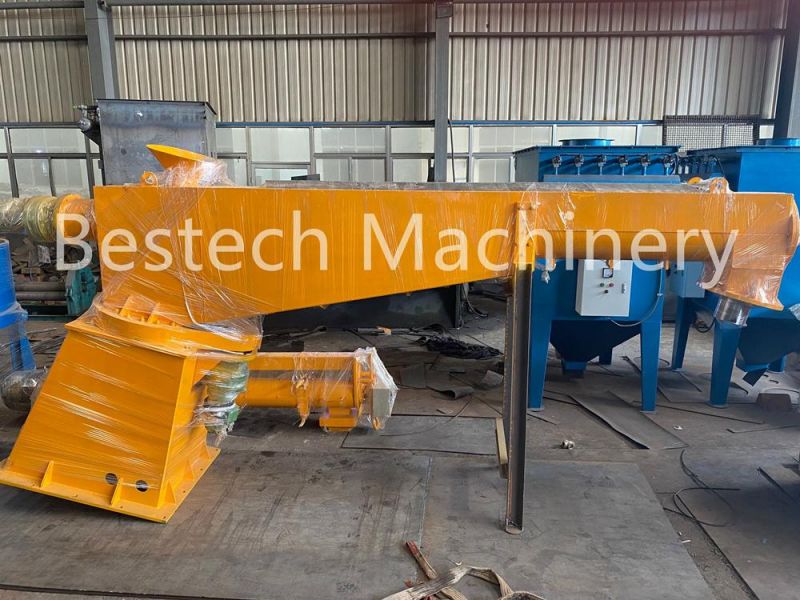

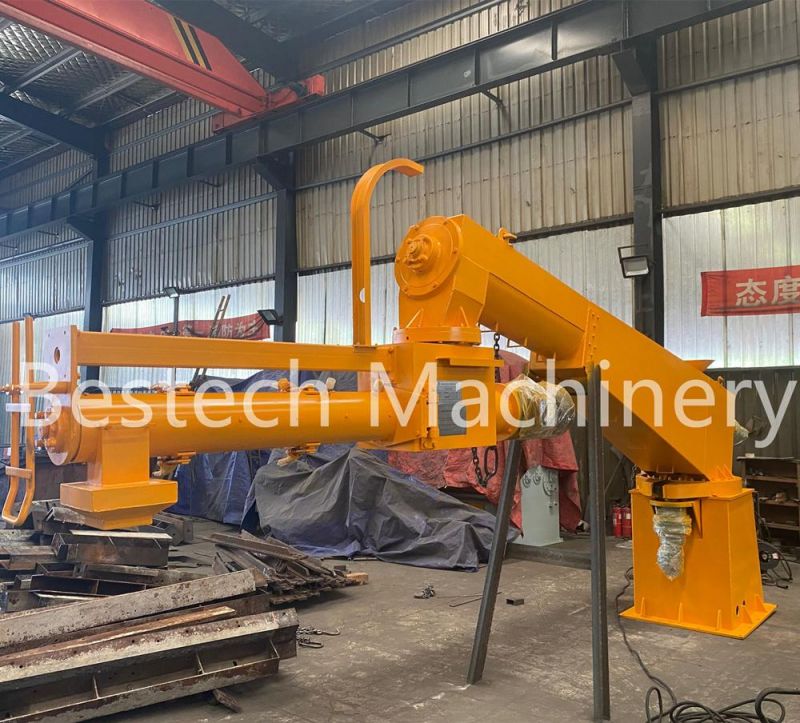

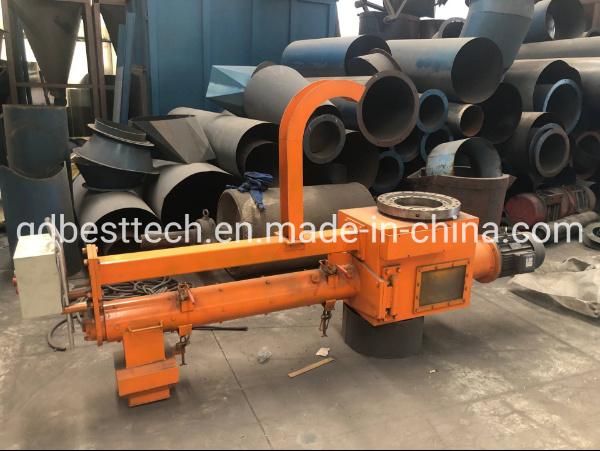

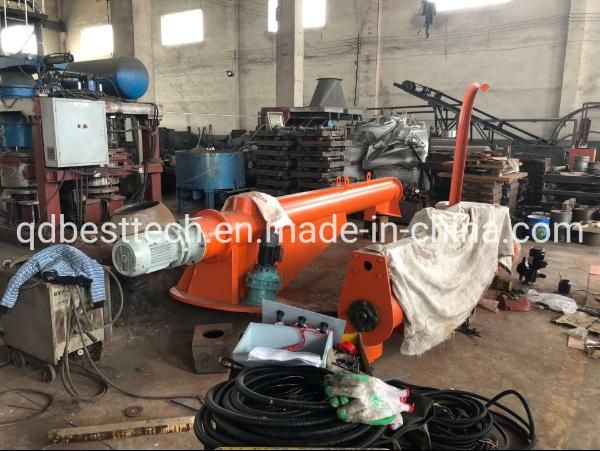

• Name：Double Arm Sand Mixer
• Color：According to Your Requirement
• Type of Sand：Resin Sand
• Use：Foundry
• Transport Package：Wooden Box
• Specification：CE
• Trademark：besttech
• Origin：China
• HS Code：8474390000
• Production Capacity：50sets Per Month



Use method of furan resin for sand mixer

1, resin sand ratio: sand: resin (containing silane) : curing agent =100: (2.0-3.0) : (1.0-4.0)

2. Sand mixing method: first add curing agent to the sand and mix the sand, and mix it for 10-30 seconds in the high-speed sand mixing machine or 30 seconds to 1 minute in the low-speed sand mixing machine.

Then add the resin mixture for 30 seconds to 1 minutes, and immediately mold the core after mixing. It is strictly prohibited to mix sand for a long time or store it for a long time.

Otherwise, it will exceed its usable time to reduce its strength or not solidify
Technical Parameter

type

productivity (T/H)

arm length(mm)
forearm length(mm)
the sand mouth height(mm)
assembly power(kw)
S255
5
2200
1200
1400
10.47
S2510
10
3000
1300
1600
16.5
S2515
15
3000
1600
1600
28.04
S2520
20
2600/3000
2100
1600
30.0
S2530
30
3000/4000
2100
1600
32.0
S2540
40
3500/4000
2100
1600
39.0
S2550
50
4000/5000
2100
1600
43.0
S2560
60
4000/5000
2100
1600
47.0
