Powder Coating Production/Processing /Making /Paint Manufacturing Line for Mixing/ Extruding/Cooling Flaking/Milling Acm-02 to Acm-60
Dongsun Powder Processing Equipment Co., Ltd.- After-sales Service：Available
- Warranty：One Year
- Type：Coating Production Line
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：ACM
- Condition：New
- Mill Motor：4kw
- Rotor Speed：10000rpm
- Classifier Motor：0.75kw
- Classifier Speed：3000rpm
- Fan：5.5kw
- Air：800cbm,H
- Throughput：40-70kg,H
- Overall Dimensions：2100*1800*2200
- Transport Package：Pallet, Case
- Trademark：TOPSUN
- Origin：Yantai, China
- HS Code：8474
- Production Capacity：5 PCS,Month
Description
Basic Info.
Model NO. ACM Condition New Mill Motor 4kw Rotor Speed 10000rpm Classifier Motor 0.75kw Classifier Speed 3000rpm Fan 5.5kw Air 800cbm/H Throughput 40-70kg/H Overall Dimensions 2100*1800*2200 Transport Package Pallet, Case Trademark TOPSUN Origin Yantai, China HS Code 8474 Production Capacity 5 PCS/MonthProduct Description

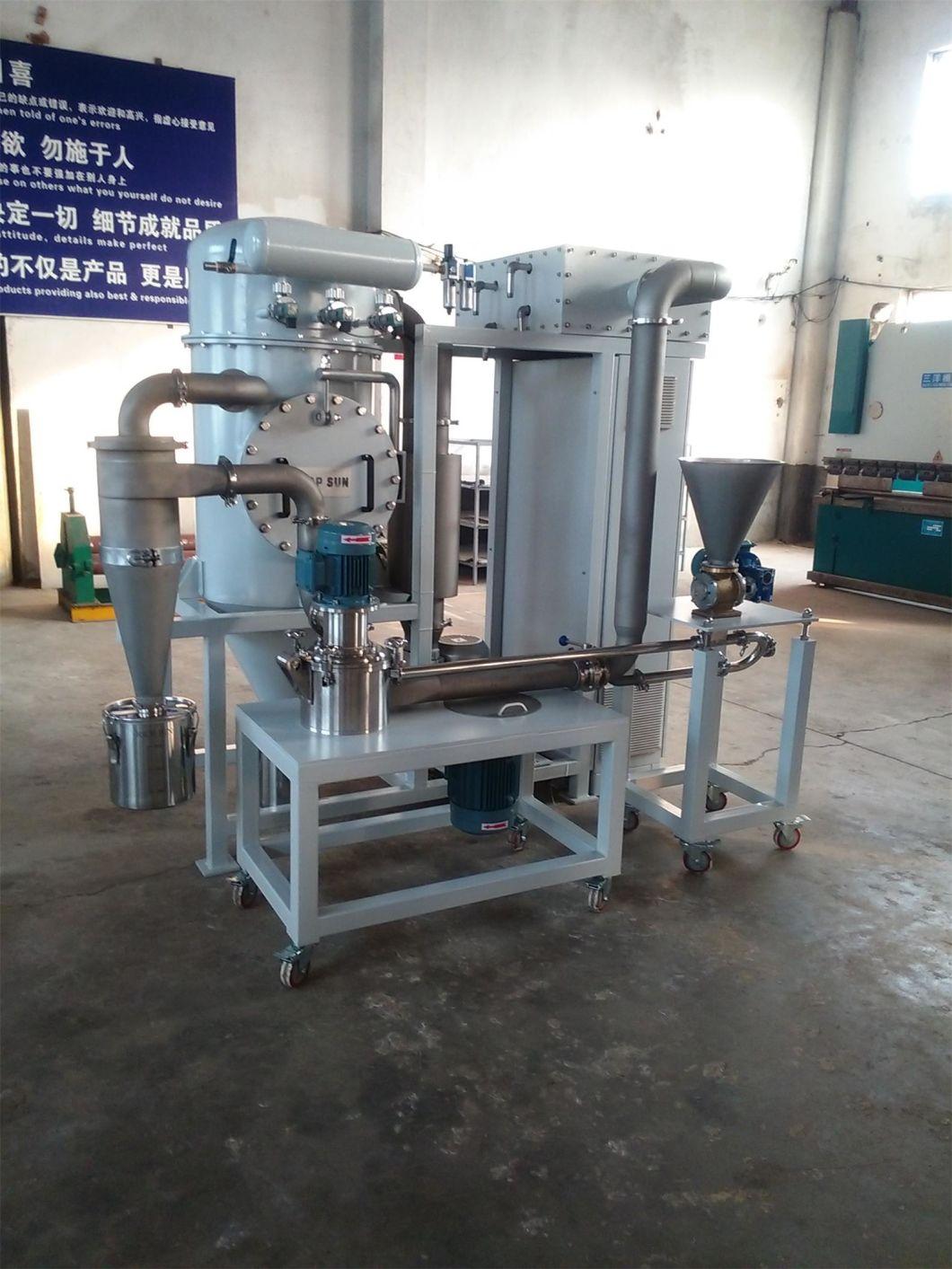

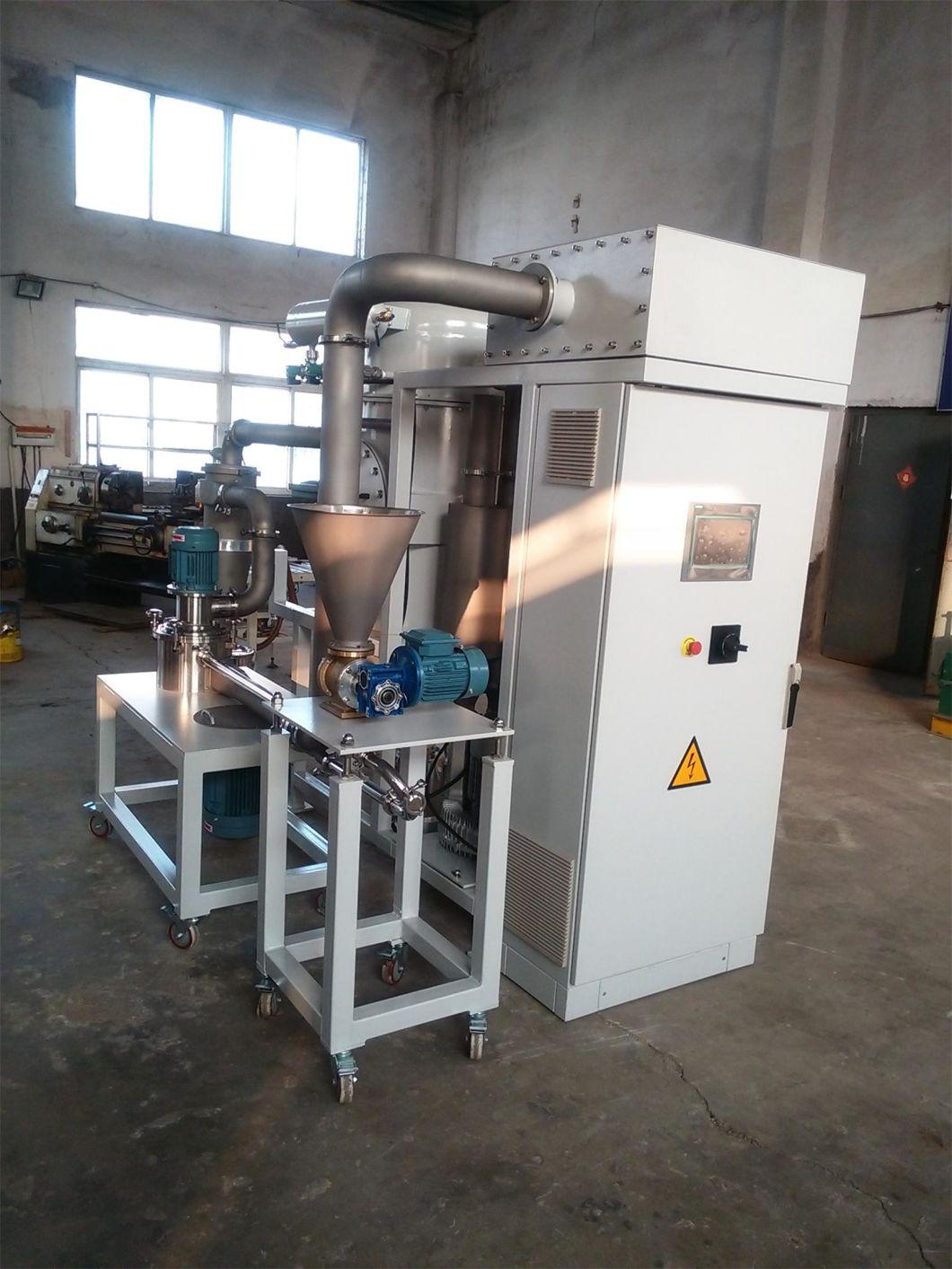

ACM Grinding and Classifying System:
Features:
Safety in accordance with EU explosion resistant standard ATEX/PSR11
Low noise design (from mill to fan system)
Particle size distribution adjustable
Mill body temperature and air intake volume monitoring
Rotary sieve with unique design and durable for mesh wear issue
Whole grinding system designed for powder dust free
Finished powder products with more than 98 percent
High output, easy operation cleaning and maintenance

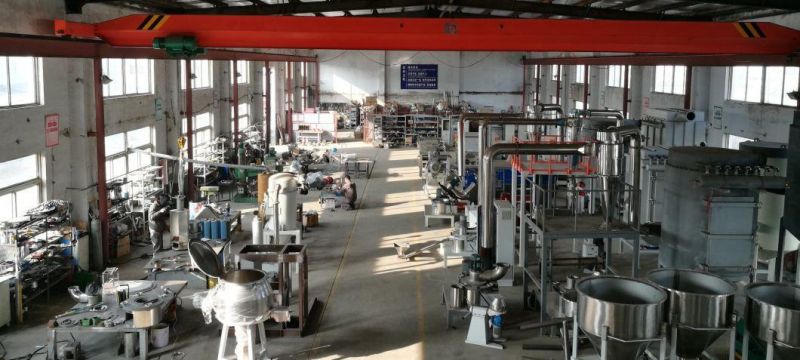

Workshop:
