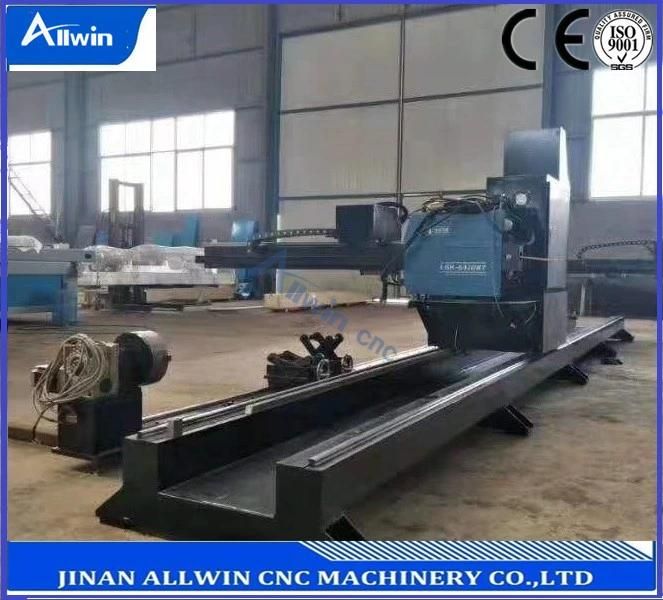

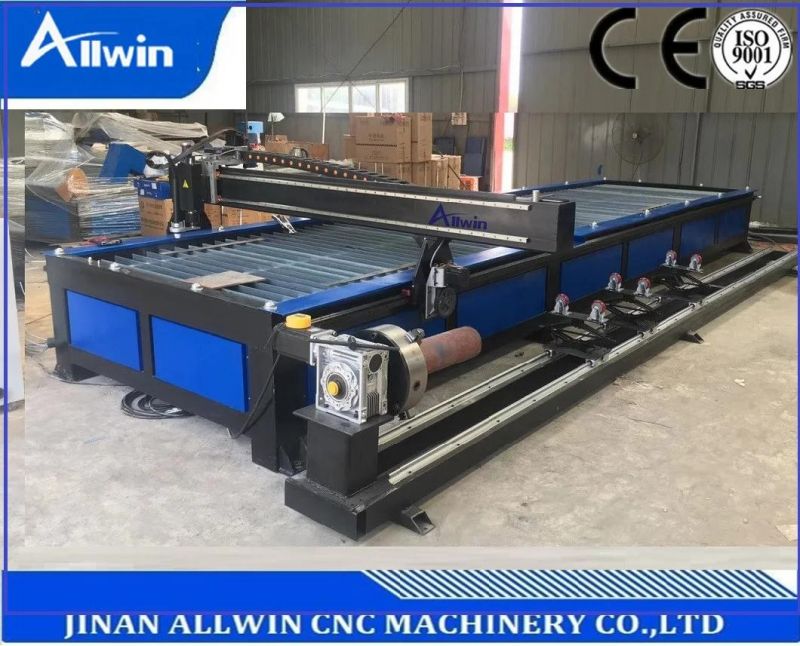

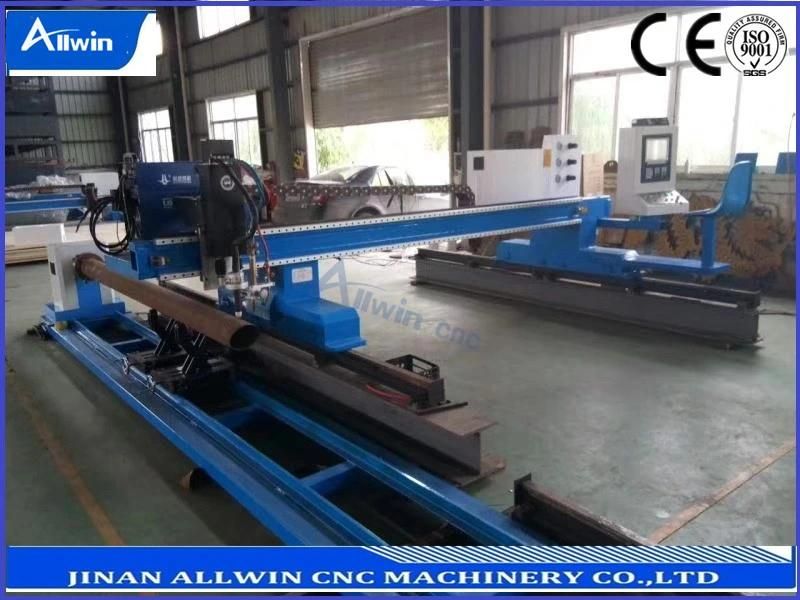

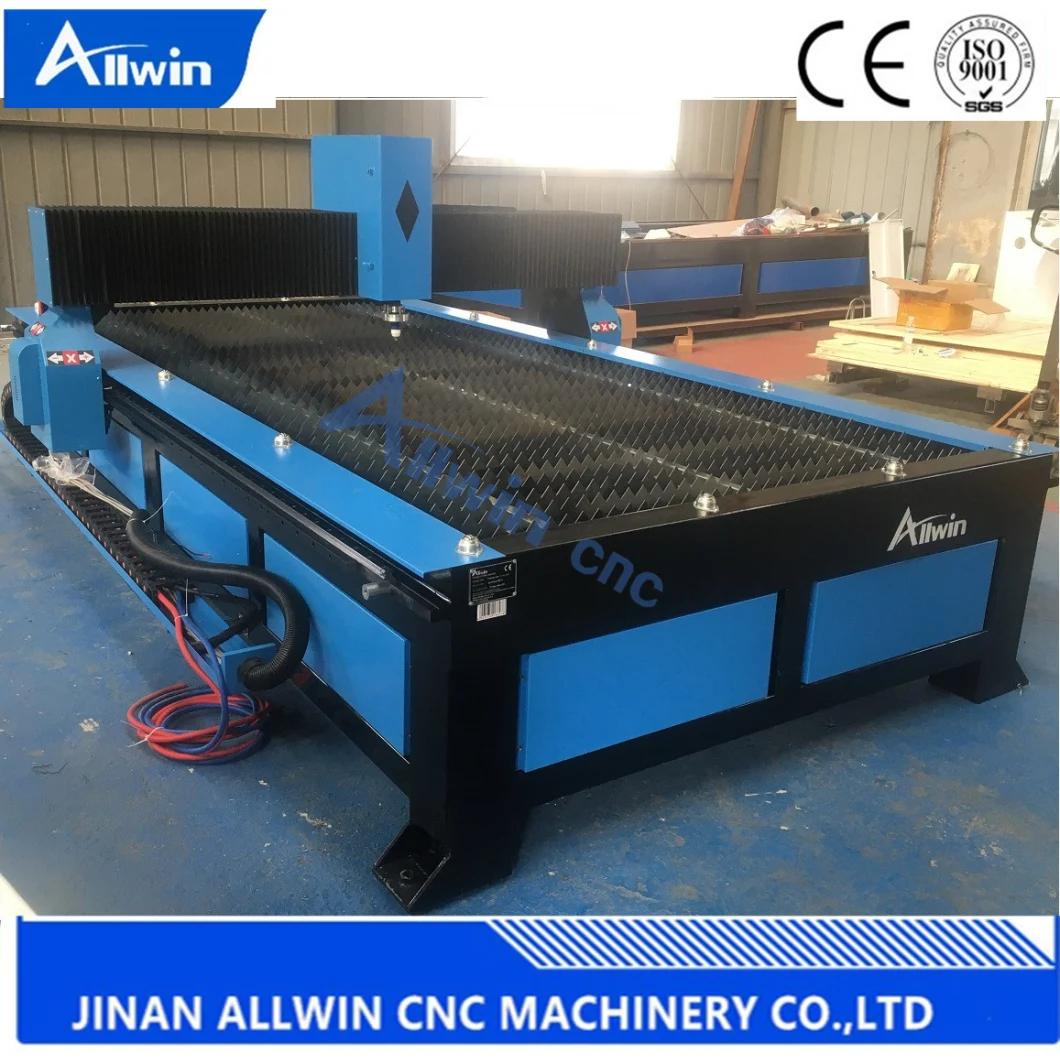

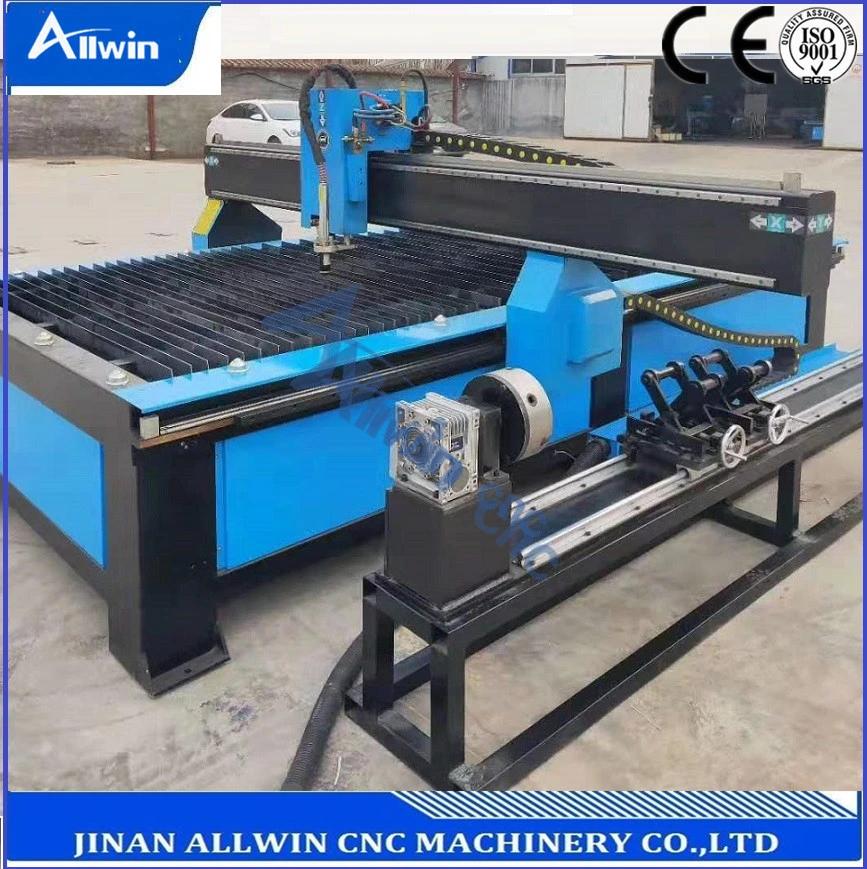

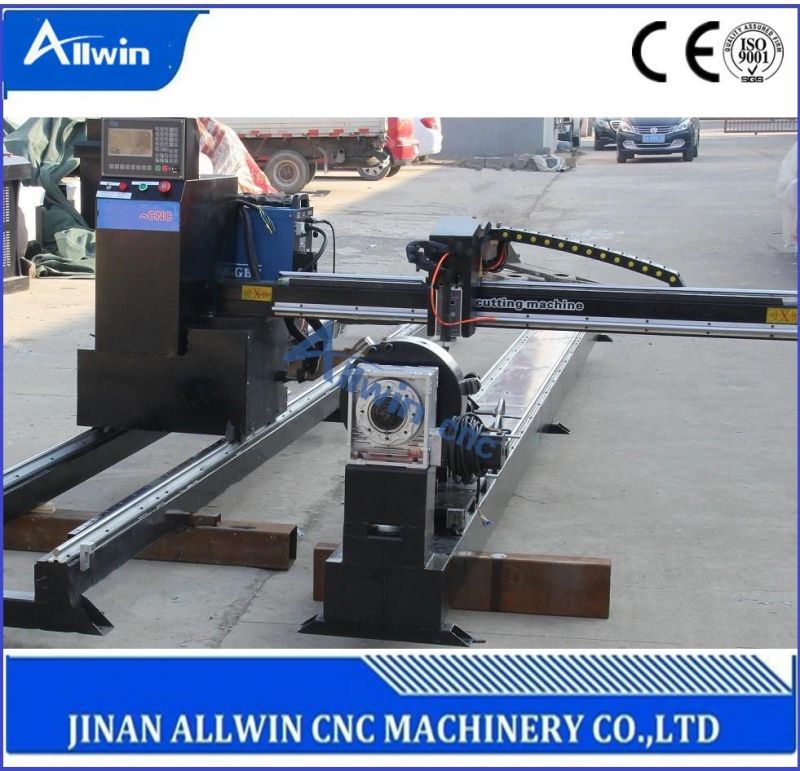

Pipe Tube CNC Plasma Cutting Machine 1530 Plasma Cutter Metal Sheet Carbon Steel
Jinan Allwin CNC Machinery Co., Ltd.- Warranty：18months
- Customized：Customized
Base Info
- Model NO.：2030 1325, 1530
- Layout：Vertical
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Electric
- Cutting Mode：Plasma Xygen
- Name：Metal Plasma Cutter
- CNC System：Automatic CNC
- Machinery：Pipe Plasma Cutter
- Software：Fastcam Artcam
- Machinery Name：CNC Tube Plasma Cutter
- Cutting Model：Plasma and Flame
- Cutter Torch Cooling Method：Air Cooling or Water Cooling
- Current：30-400A Plasma Cutter Source
- Metal Plasma Cutter：Tube Cutting Machine
- Tube Cutting Machinery：Flame and Plasma
- Pipe Cutting：Round Pipe Cutting
- Plasma Power：120A 200A 300A
- Working Area：1500mmx3000mm
- Material：Iron Aluminum Carbon Steel
- Pipe Cutting Machine：Clean Oxygen Cutter
- Transport Package：Wooden Box
- Specification：2030
- Trademark：ALLWIN
- Origin：China
- HS Code：8456909000
- Package size per unit product：370.00cm * 240.00cm * 150.00cm
- Gross weight per unit product：1800.000kg
Description
Name
Specification
Working Area(X*Y)
1500mmx3000mm
Frame
Square tube Integral guide
X Y Z Rail
Taiwan HIWIN Linear guide
Transmission
X/Y rack and pinion drive,Z Taiwan TBI Ball Screw
Motor driver
Japan Panasonic Motor driver
Control System
Start controller with THC function
Cutting Thickness
0.5mm-22mm stainless steel
Plasma Power Supply
according to customer request
Working Speed
8000mm/min
Working Voltage
380V,3PH,50/60HZ
Software
ARTCAM/Type 3/Ucancam

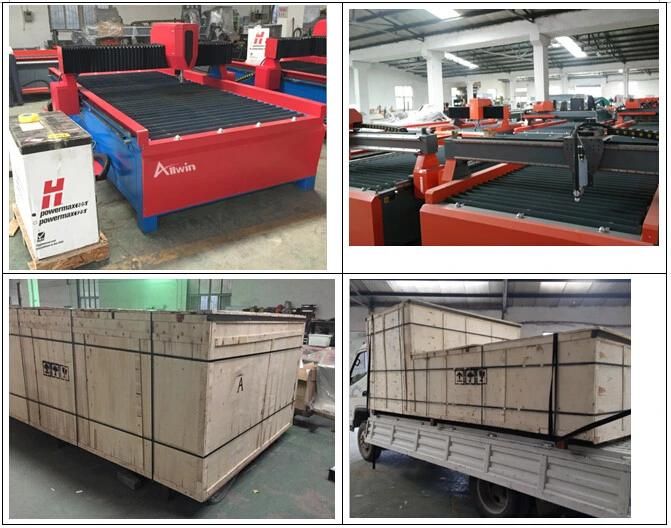

Package of cnc plasma cutter
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Services
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 12 hours on line service
# Replying your email and offer tecnical service within 24 hours
FAQ for CNC plasma cutting table:
Q: Do you have after-sale service and support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this CNC plasma cutting machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
Q: What other things also need after we bought your CNC plasma cutting machines?
A: With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC plasma cutting machine together, then more conveniently to use.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service. Please contact us ASAP and don't try to fix the machine by yourself or someone else. We will response as soon as we can to solve it for you.
