• Model NO.：100

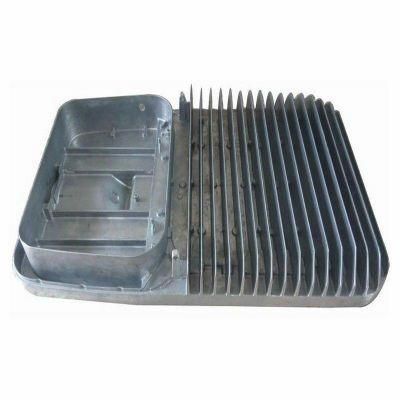

• Usage：Lights, Cars and Motorcycle Accessories
• Features：High Efficiency, Energy Saving, High Yield
• Material：Die Casting Machine Carbon Steel
• Transport Package：Customized
• Specification：4.5*1.2*1.5
• Trademark：longhua Die Casting Machine
• Origin：China(Mainland)
• HS Code：8454301000
• Production Capacity：1set,Sets Per 3-Month

Basic Info.

Model NO. 100 Usage Lights, Cars and Motorcycle Accessories Features High Efficiency, Energy Saving, High Yield Material Die Casting Machine Carbon Steel Transport Package Customized  Specification 4.5*1.2*1.5 Trademark longhua Die Casting Machine Origin China(Mainland) HS Code 8454301000 Production Capacity 1set/Sets Per 3-Month

Product Description

Company Information

Bengbu City Long Hua die casting machine factory was founded in 1982, is a professional R & D, production, sales of die-casting machine, die casting peripheral equipment, die-casting mould of high technology enterprises



On December 10, 2005 Anhui provincial Party secretary Comrade Wang Jinshan, to Long Hua pointed out that the strengthening of science and technology, establish a brand, pay attention to talent, independent innovation"

Longhua was awarded the national science and technology project 2 (National Torch project, major national science and technology projects a). Longhua die-casting machine products has won: "first national Ministry of machinery, products Buyou title", "casting machinery industry standard demonstration unit", "China product quality association member units", "Shou contract re credit enterprises", "import and export Mianjian products", "Alibaba depth inspection factory integrity enterprise", "Anhui Province high technology enterprise" honor.

Long Hua die casting machine products, are to achieve computer aided optimization design (CAD/CAE), hydraulic system using the German technology, Japan's hydraulic technology, the program uses PLC man-machine interface system, human nature, the operation is more simple

Longhua after 35 years of unremitting efforts, long China research and development of magnesium alloy (aluminum) energy saving vacuum die casting machine was awarded the "Anhui Province high-tech projects progress award" a, and gradually won the State Intellectual Property Office nine high-tech patent: a high-tech invention patents, eight Gaoke technology and practical patents.

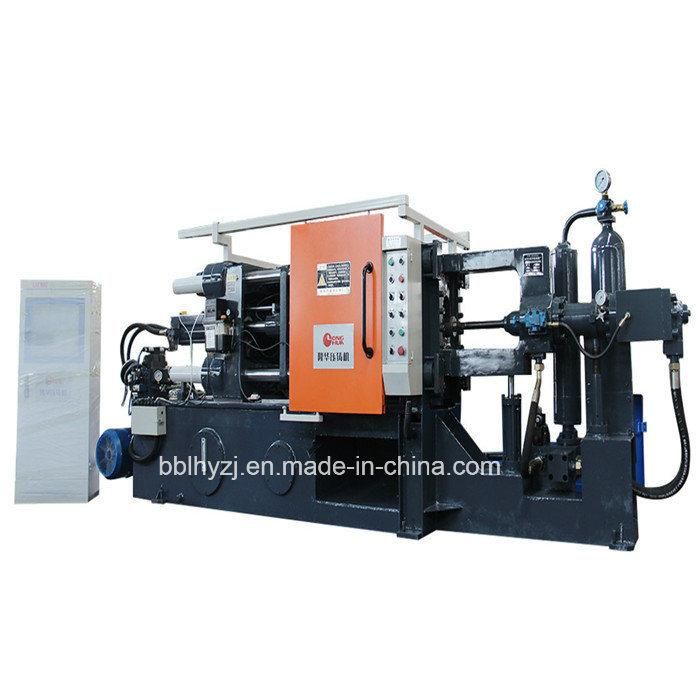

        LH series of standard parameter table (100T)

Items	Unit	Specification
Hydraulic Working Pressure	MPa	7
Clamping Force	KN	1000
Space Between Tie Bars	mm	420*420
Tie Bar Diameter	mm	¢80
Die Opening Stroke	mm	350
Injecction Force(intensify)	KN	180
Plunger launch distance	mm	120
Injection position	mm	0  --  140
Plunger Diameter	mm	¢40----¢60
Injection Stroke	mm	320
Casting pressure (intensify)	MPa	143/92/64
Casting Fiange Protrusion	mm	10
Casting Fiange Diameter	mm	110
(40Mpa) Max Casting Area Under40Mpa	CM2	375
lnjection Weight(Al)	Kg	1.6
Die Height(Min--Max)	mm	200~500
Ejector Force	KN	100
Ejector Steoke	mm	80
Motor Capacity	Kw	11
Machine Dimensions  (L*W*H)	m	4.5*1.2*1.5
Referential Machine Weight For Uplifting	T	4.5
Oil Tank Capacity	L	300

WE reserve the right to make any technical improvement without further notice

Main Features

1.  Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and speed control as well as low pressure die close protection functions).
2.  Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).
3.  Four-stage (multi-stage) injection system:
     A.Maximum speed> 8M/s (6M / s for those more than 2000T), which can effectively control the filling time and casting formation, in addition to unique braking and uniform acceleration injection function that can effectively prevent flash and allow more flexible injection process.
     B.Minimum speed 0.1-0.7M/s, which can be precisely controlled to prevent air invasion from causing air trap.
     C.Pressure building time ≤15 M/s, which allows to change pressure building speed according to process requirements, strengthening the casting density without causing product distortion.
      D.Dry cycle time is reduced by more than 15%; Oil pump flow increases by more than 20%; Cooler capacity is enhanced by more than 100%; Proportion of conforming finished products rise by 100%; productivity is improved by 20% as compared to the past.
4.  The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
5.  Unique static and dynamic performance with dual core-pulling devices ensures one-time formation of precise, complicated products.
6.  The injection system uses European draw-bar structure with a variety of choices for center and eccentric injection positions that provide easy adjustment, high precision, and applicability to various complex molds.
7.  Large-scale die-casting machine above 1600T uses hydraulic pumping means which allows safe and fast replacement of large molds.
8.  Independent quick clamping system and unique hydraulic driven gear-type mold height adjusting mechanism are resistant to impact, providing longer service life and fast production, with an output on a shift increased by over 15%.
9.  Liquid nitrogen super low temperature installation method ensures precision and prolongs service life of toggle parts.
10.  High quality, high rigidity and wear resistant casting platen adopts finite element analysis design that brings even stress distribution, little distortion and precise mold clamping.
11.  Electric central lubrication system provides scheduled, quantitative lubrication and improves service life.
12.  Electrical and hydraulic components are well-known brands made in Europe, Japan and China Taiwan.
13.  Die-casting unit island design provides various interfaces and software packages for a variety of advanced intelligent peripheral devices.
14,  Hydraulic system consists of:The most advanced uniform accelerated multistage injection system in ten world
