Hydraulic Automatic 3 Rollers Mechanical Plate Rolling Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Automation：Mechanical
  • Weight：600kg

Base Info

  • Model NO.：W11 3X1500
  • Max Thickenss of Plate：3mm
  • Max Length of Plate：1500mm
  • up Roller Diameter：165mm
  • Down Roller Diameter：155mm
  • Motor Power：5.5kw
  • Rolling Speed：8m,Min
  • Yield Limit：245MPa
  • Transport Package：FCL,LCL with Plastic Film Covered
  • Specification：2700x1200x800mm
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8462299000
  • Production Capacity：100 Sets,Month

Description

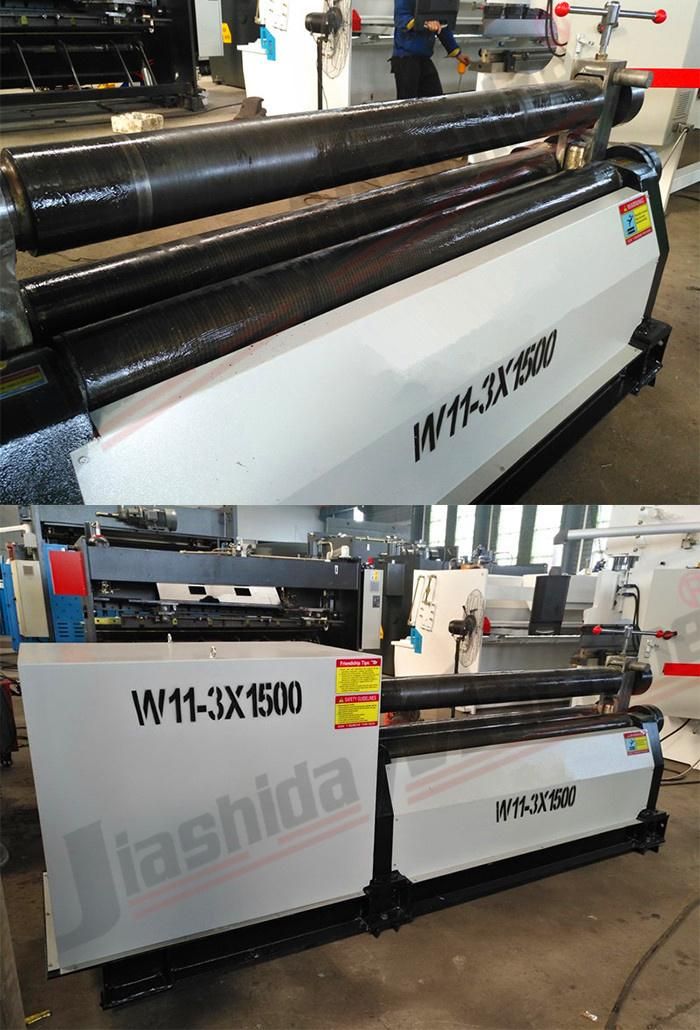

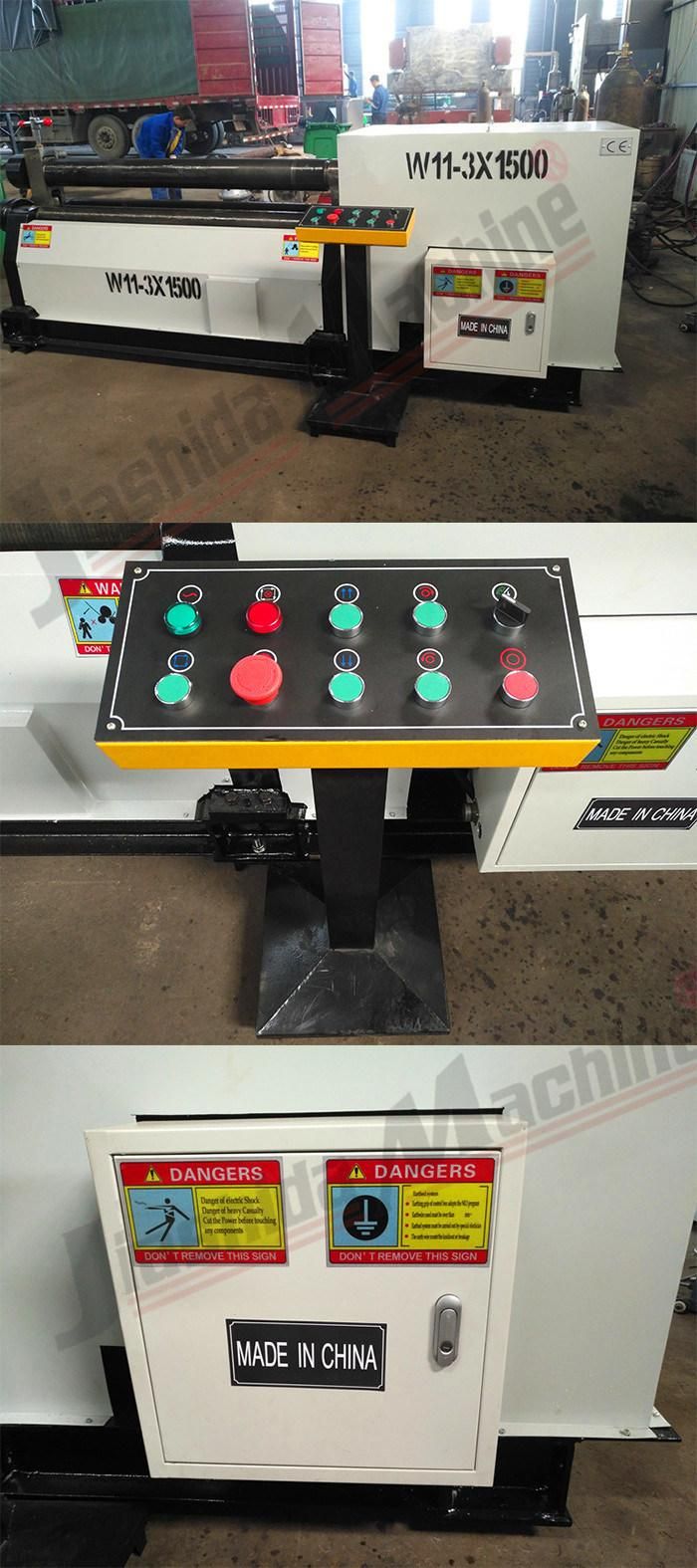

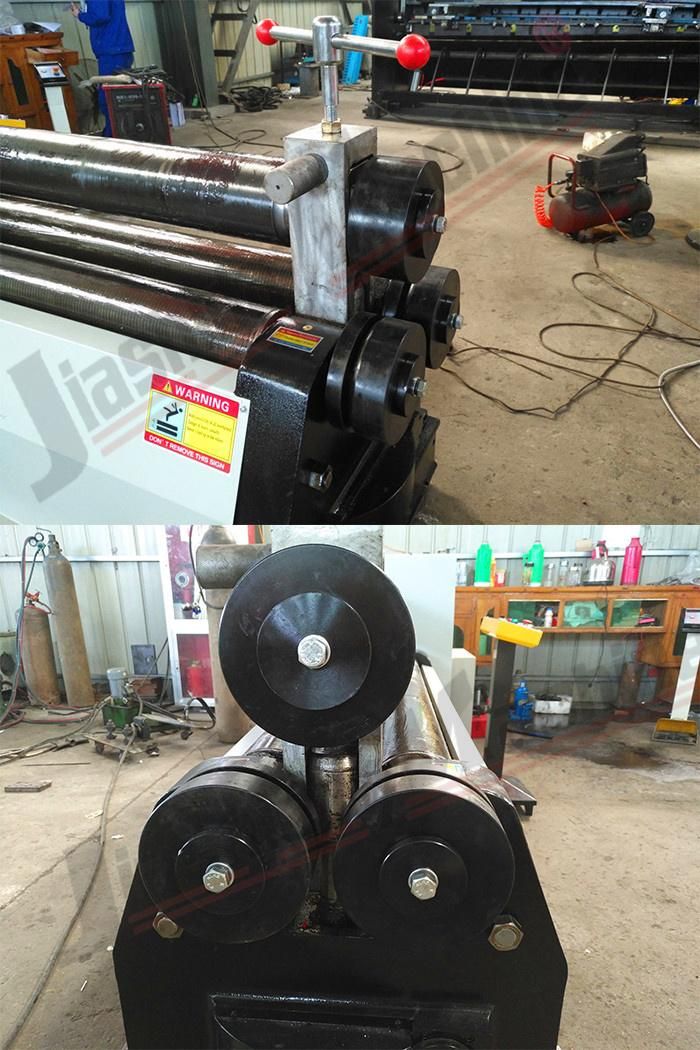

W11 Series 3 Roller Rolling Machine Features:This machine is a symmetrical bending plate machine. Through the lower pressure of the upper roller and the upper and lower rollers roll again each other, the roll forming of the cylindrical workpiece is finished;The realization of the upper roller lifting movement is that the auxiliary motor drives the worm and worm wheel mechanism under the left and right roller bearing seats to move through the auxiliary motor, so that the wire rotator fixed on the worm wheel can make the lifting screw move up and down;The main components are: three roller first heat treatment tempering HB240-280, second heat treatment surface quenching HRC48-52, bracket for welding parts, after welding processing, chassis for welding parts, lifting screw and worm 45 steel forgingsHydraulic Automatic 3 Rollers Mechanical Plate Rolling Bending MachineEasy and Simple NC ControllerSchneider Main Electric ComponentsHydraulic Automatic 3 Rollers Mechanical Plate Rolling Bending MachineEasy taking out part for the finished productAdded section bending part at the end partHydraulic Automatic 3 Rollers Mechanical Plate Rolling Bending Machine

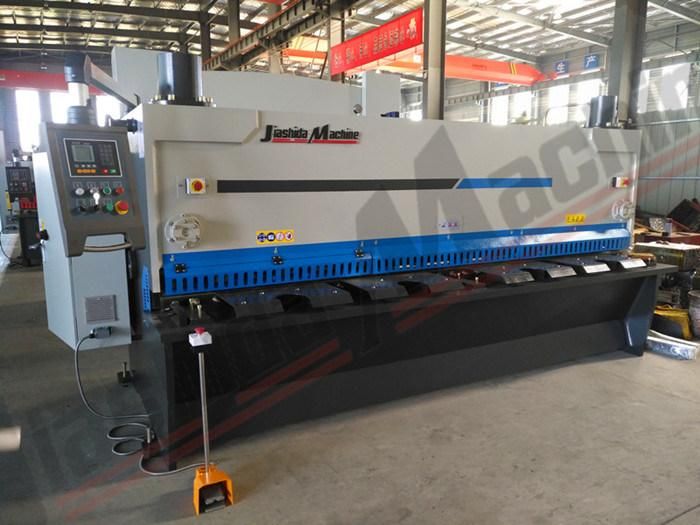

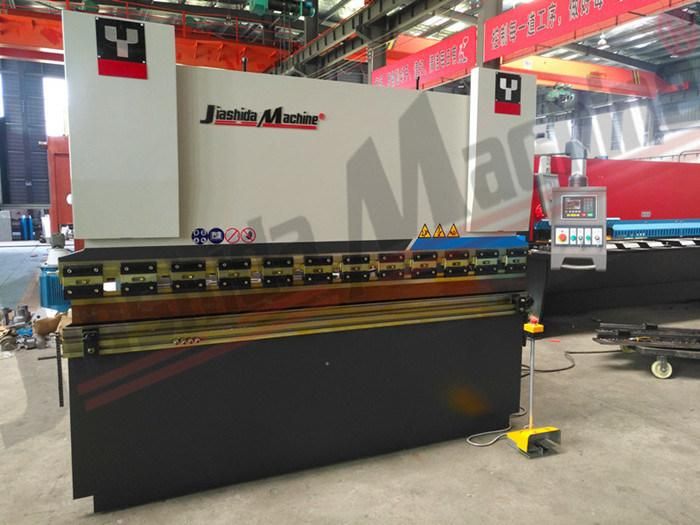

Related Shearing Machine and Bending Machine
