High Quality 3 Die 3 Blows Screw Making Machine Nut Bolt Machine

Xuchang Huarui Machinery Co., Ltd.
  • After-sales Service：video Support Online
  • Type：Forging Operation
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE

Base Info

  • Model NO.：MC6-70C
  • Warranty：24 Months
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Machine Name：Cold Forging Machine
  • Keyword：Scew But Bolt Machine
  • Funcation：Making Different Bolts and Screws
  • Application：Building , Home,Industrial ,Woodworking
  • Product Size：M4 M6 M8 M10 M12
  • Transport Package：Wooden Case or Sea Worthy
  • Specification：3600x1500x1500mm
  • Trademark：Huarui
  • Origin：China(Mainland)
  • HS Code：8462991000
  • Production Capacity：300 Sets,Month

Description

ModelMax Screw Dia(mm)Max Screw Length(mm)Capacity
(pcs/min)Motor(KW)Weight(Ton)Over Size (m)HR3-20AM2.6201.13500.31.1*0.53*1.2HR3-20BM2.6201.13500.31.1*0.53*1.2HR4-25AM4251.53200.451.3*0.63*1.32HR4-25BM4251.53200.451.3*0.63*1.32HR4-40AM4402.2/0.372800.971.5*1.15*1.35HR4-40BM4402.2/0.372800.971.5*1.15*1.35HR5-55AM5553+0.371701.21.6*1.35*1.7HR5-55BM5553+0.371701.21.6*1.35*1.7HR5-65AM5653+0.371301.31.75*1.4*1.65HR5-65BM5653+0.371301.31.75*1.4*1.65HR6-60AM6604/0.371801.51.7*1.65*1.3HR6-60BM6604/0.371801.51.7*1.65*1.3HR6-100BM61005.5+0.371101.92.7*1.3*1.3HR8-80BM8805.5/0.371101.82.1*1.55*1.3HR8-100BM81007.5+0.371002.12.7*1.7*1.3HR8-120BM81205.51002.12.4*1.8*1.4HR10-120BM101207.5801.82.35*1.95*1.4HR12-120BM12120116032.45*2*1.45HR12-160BM12160136032.45*2*1.45HR12-220BM1222015503.52.5*2*1.45HR16-120BM1612015503.82.5*2.1*1.45HR16-160BM16160155042.5*2.1*1.45HR16-220BM1622015454.83.7*1.9*1.7
3. Automatic nuts making machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

High Quality 3 Die 3 Blows Screw Making Machine Nut Bolt Machine
High Quality 3 Die 3 Blows Screw Making Machine Nut Bolt Machine
Specifition of nut making machine

No.Model HR11B6SHR14B6SHR17B6SHR19B6SHR24B6S
1Dies 66666
2Forging PowerTon6095120150250
3Cut-off Dia.(max)mm1116182024
4Cut-off Lengthmm711132030
5Making SizeDINM6M8M10M12M16
6OutputPcs/Min260180160130
(adjustable)		110
(adjustable)
7Slide Rammm507080100110
8Kick-out Length(max)mm1118203035
9Dies Pitchmm50607080100
10Main MotorKw1115223745Kw
11Lubricant MotorKw1.51.5333
12Lubricant oilLitre54072090010801440
13WeightTon48101525
14DimentionM2.15*1.55*1.062.8*2.05*1.33.67*2.05*1.44.0*2.45*1.455.0*3.0*1.7

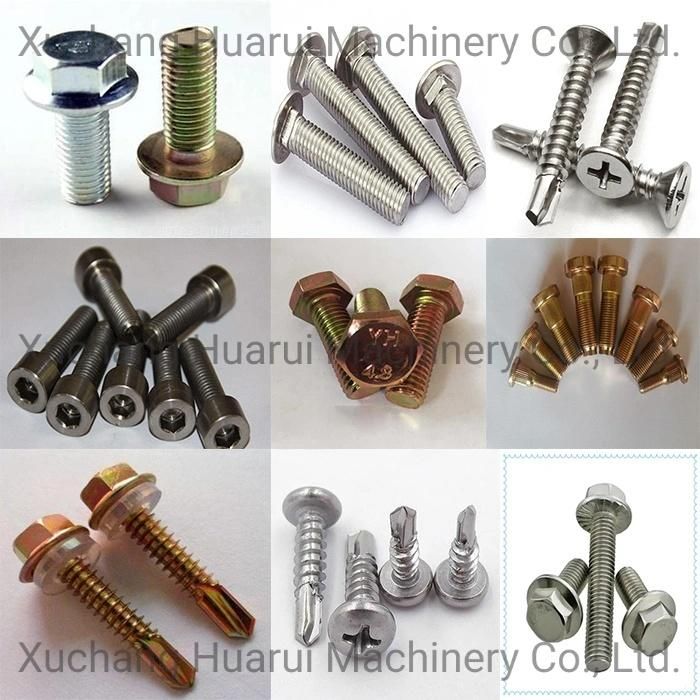

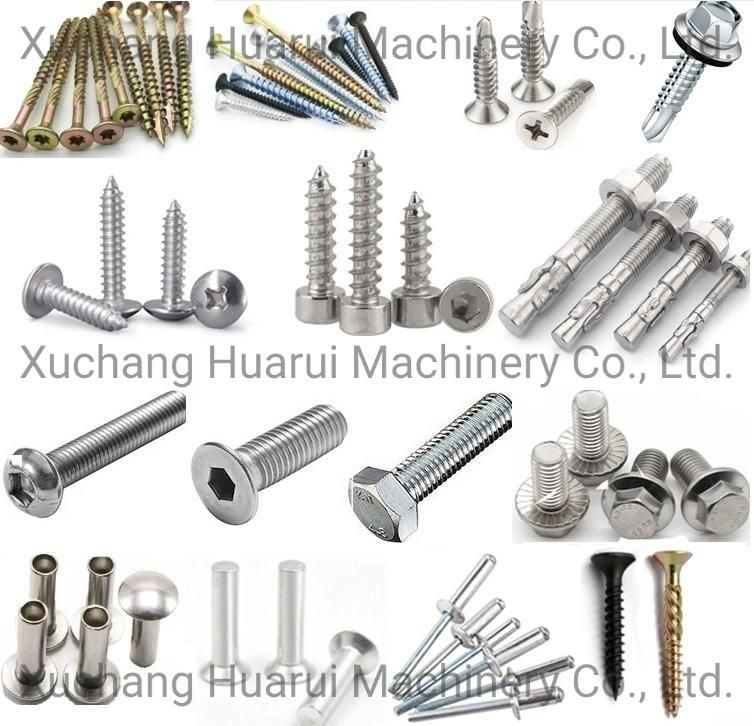

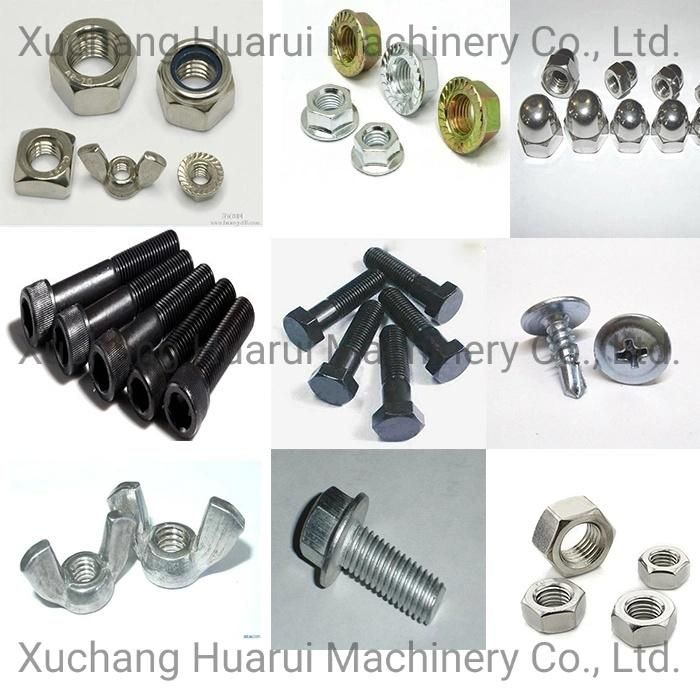

Finished Screw,Bolt,Nut

High Quality 3 Die 3 Blows Screw Making Machine Nut Bolt MachineHigh Quality 3 Die 3 Blows Screw Making Machine Nut Bolt MachineHigh Quality 3 Die 3 Blows Screw Making Machine Nut Bolt Machine

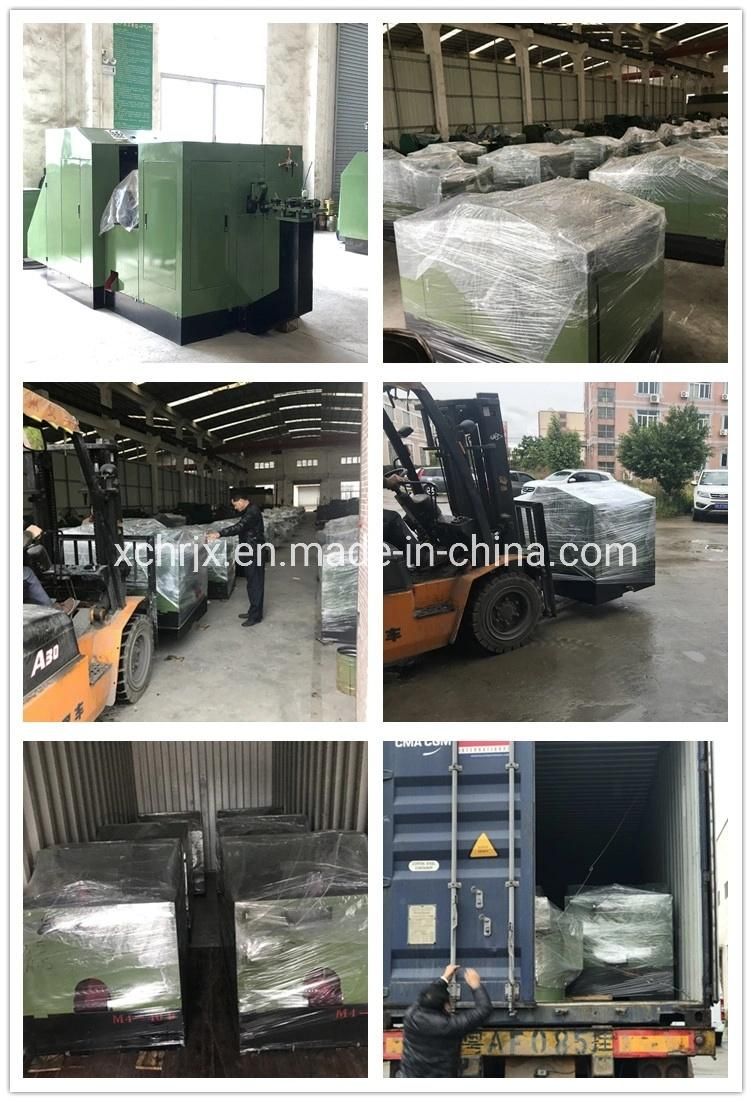

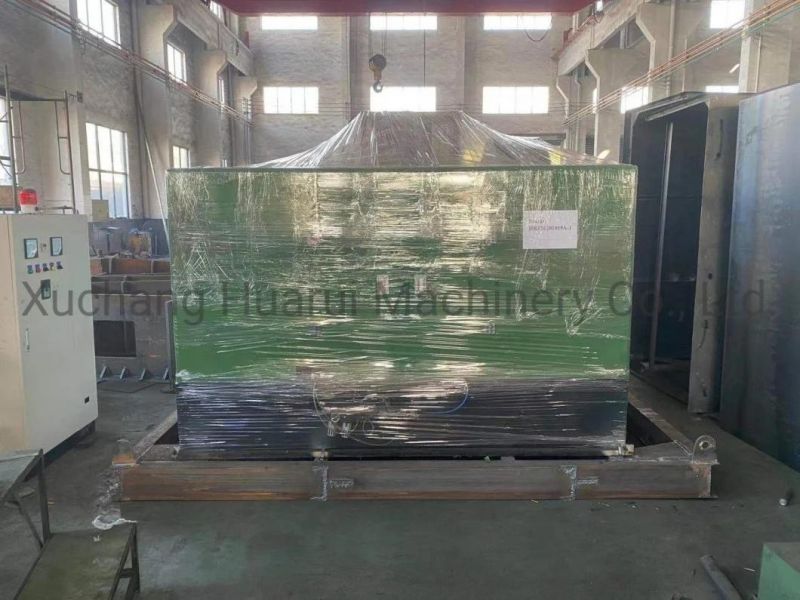

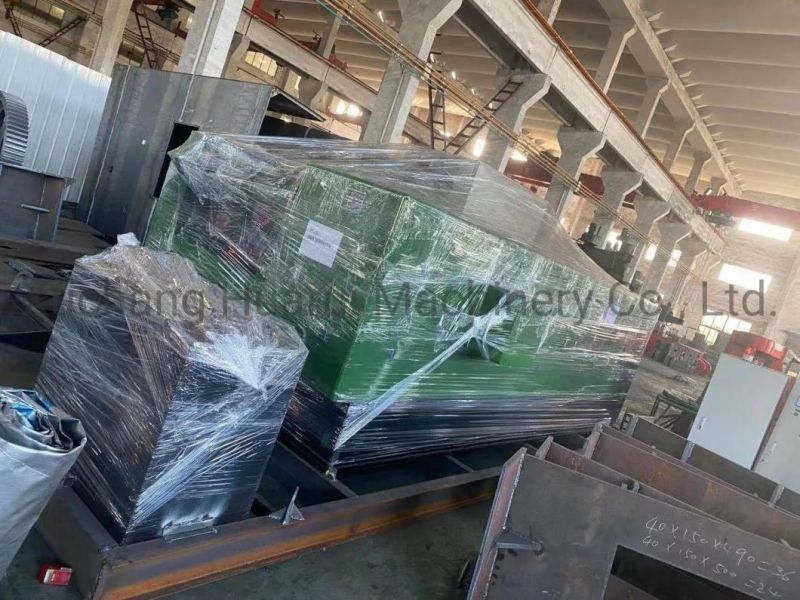

Shipment &Customer Photos
 High Quality 3 Die 3 Blows Screw Making Machine Nut Bolt MachineHigh Quality 3 Die 3 Blows Screw Making Machine Nut Bolt Machine

FAQ

1. Make response to customer's inquiry or requirement within 24 hours.

2. Assist customer to select the most suitable machine and give them our professional suggestion.

3. Produce machine by our experienced team according to customer requirement.

4. Provide customer operation manual or video for machine to help them operate machine more efficiently.

5. Provide customer layout of workshop with machine to help them install machine.

6. Assign engineer to assist customer to install machine.

7. Offer 2 year guarantee for our machines.
