Jz-918g Automatic High Heel Insole Grommet Riveting Machine
Dongguan Jiuzhou Machinery Co., Ltd.- Automatic Grade：Automatic
- Power Supply：Electric
- Warranty：1 Year
- Certification：GS, CE
- Transport Package：Plywood Case
- Specification：550*1200*1430mm
Base Info
- Model NO.：JZ-918G
- Trademark：Jiuzhou
- Origin：China
- HS Code：84532000
- Production Capacity：200 Sets,Month
Description
Basic Info.
Model NO. JZ-918G Trademark Jiuzhou Origin China HS Code 84532000 Production Capacity 200 Sets/MonthProduct Description

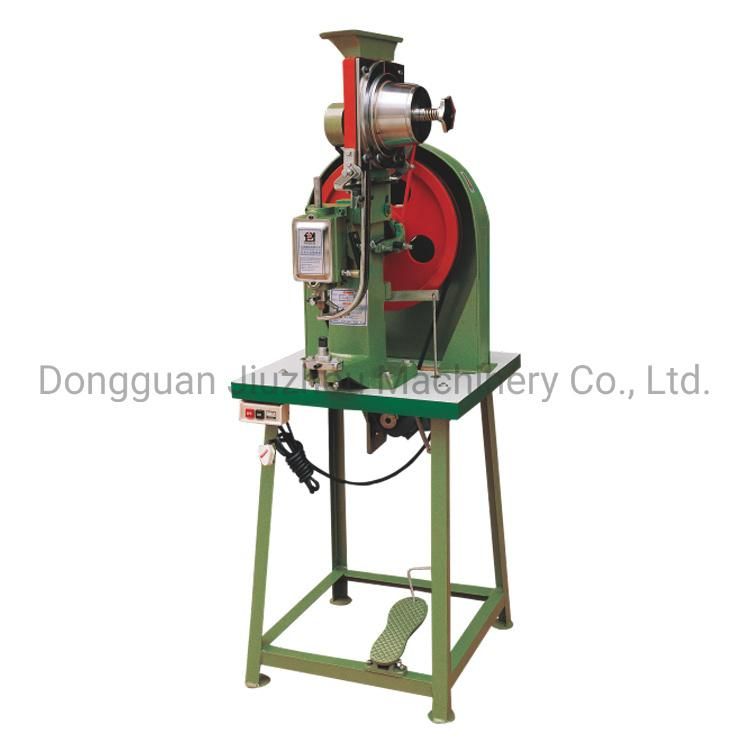

JZ-918G Automatic High Heel Insole Grommet Riveting Machine
Specification:
| Eyelet barrel diameter | φ2.4-3.0mm |
| Eyelet length | shorter than 10mm |
| Throat depth | 200mm |
| Motor | 1/4HP |
| Height from floor to bottom mold | 800mm |
| Machine dimensions(L*W*H) | 550*1200*1430mm |
| Net weight | 80kgs |
| Gross weight | 130kgs |
Application:
1) Well suited for fixing small eyelets on insoles. It is used in the production of leather shoes, boots, etc.
2) Eyelet diameter is in the range of 2.4-3.0mm
3) Eyelet length is shorter than 10mm.
