• Model NO.：DX 828-210
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Mode：Metal Roofing Tiles Roll Forming Machines
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：4-6m,Min
• Roll Forming Speed：8-12m,Min
• Control system：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：4.5 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DX 828-210 Customized Customized Advantage Easy to Maintenance Condition New Mode Metal Roofing Tiles Roll Forming Machines Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1000mm Feeding Thickness 0.25-0.7mm Thickness Production Speed 4-6m/Min Roll Forming Speed 8-12m/Min Control system PLC Computer Control with Inverter Size 6500mm*1500mm*1500mm Weight 4.5 Tons Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 50 Sets Per Month

Product Description

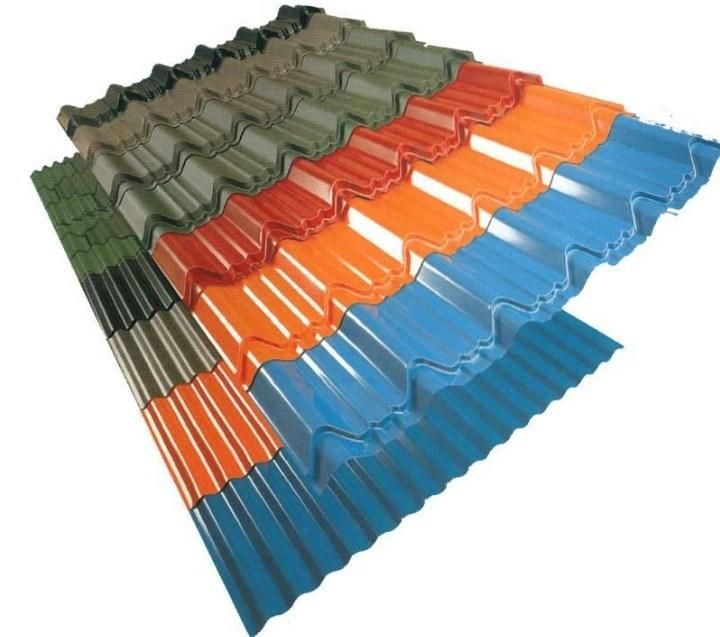

Glazed Roof Tile IBR Roofing Sheet Double Layer with best price

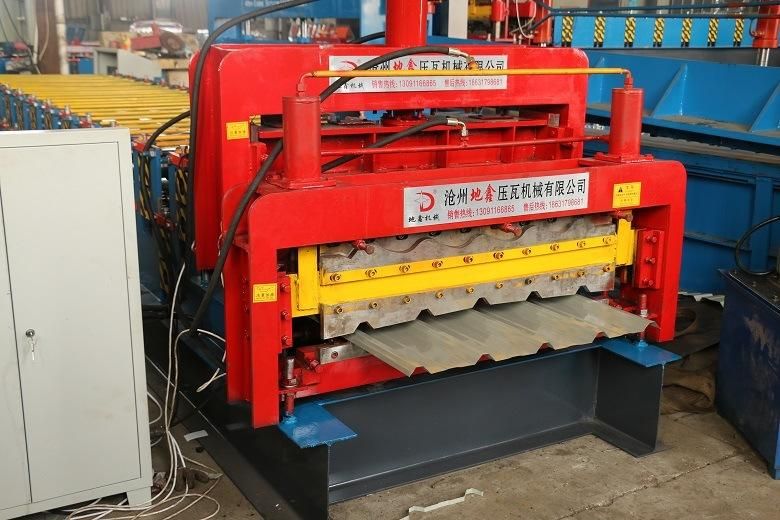

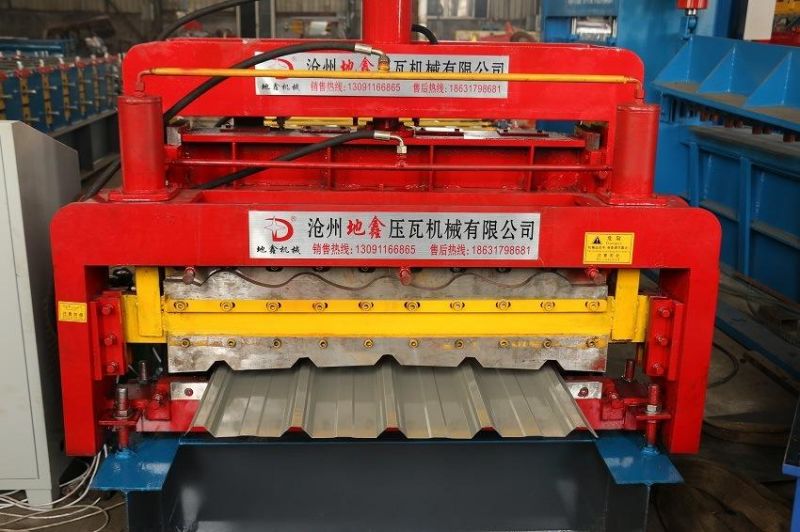

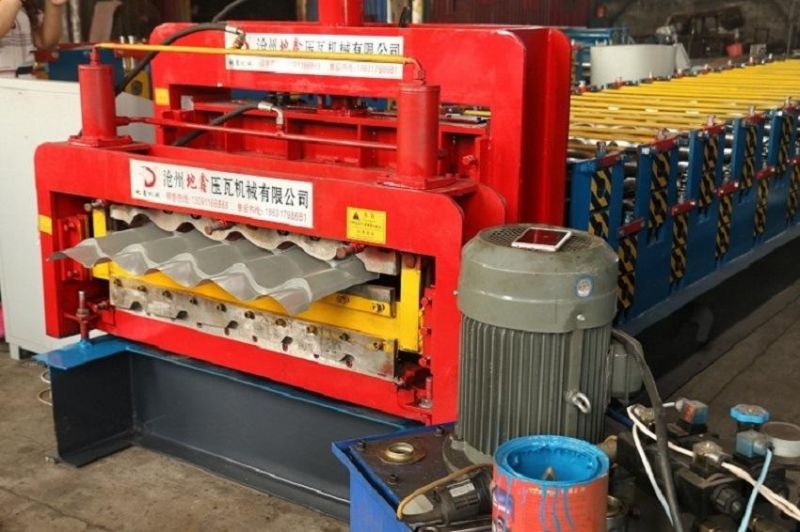

1. Product display






2. Technique parameters
(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.3-0.8mm
(3) effective width: 828mm
(4) feeding width: 1000mm
(5) main motor power: 4 kw
(6) pump power: 4 kw
(7) shaft diameter: 75 mm
(8) forming steps: 11 steps
(9) roller material: 45# forged steel, with hard chrome plating
(10) main frame: 300h steel
(11) medium plate thickness: 16mm
(12) control systerm: Plc computer control with inverter
(13) power supply: 380v, 3 phase, 60hz or as your requirement
(14) 0veral sized: 6500mm*1500mm*1500mm
Packing size: 5.7m*1.6m*1.5m(l*w*h), 4.5tons

3. One manual uncoiler for free and other accessary

4. Loading in a 20 foot container.


5. Service.
Engineer overseas service available

NO.	ADVANTAGE
1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use.
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic

FQA
 1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
