CNC Automatic Metal Cutting Horizontal Band Saw Machine
Tianjin Henghua Pipeline Technology Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Hydraulic Pressure
- Cutting Mode：Saw Cutting
Base Info
- Model NO.：HHGB4235
- Max.Sawing Range (mm)：350*350*350
- Saw Belt (mm)：4115*34*1.1
- Working Clamping Method：Hydraulic
- Voltage (V)：380V,3 Phase
- Feed Speed Adjustment Mode：Hydraulic,Stepless Speed
- Workbench Height (mm)：300
- Dimension (mm)：2000*1100*1500mm

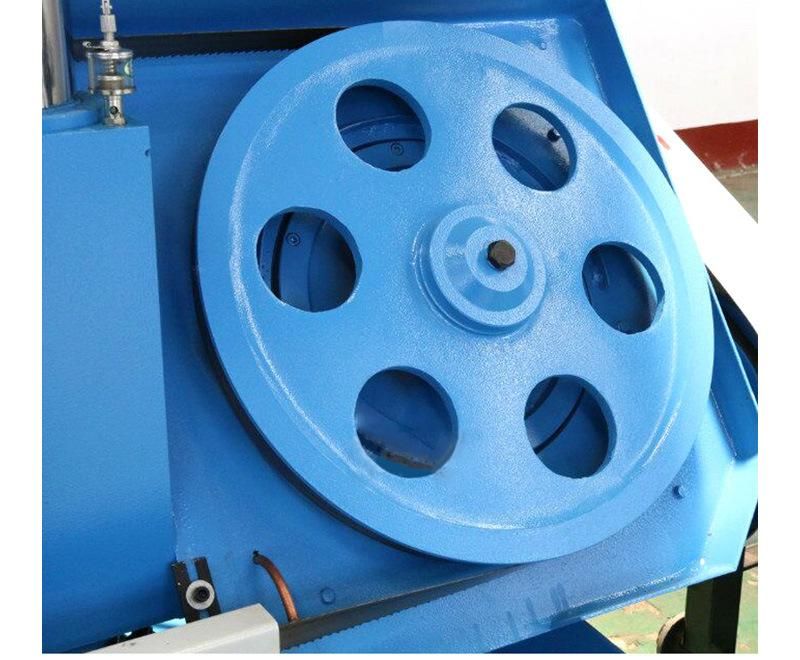

- Main Drive Structure：Worm Gear

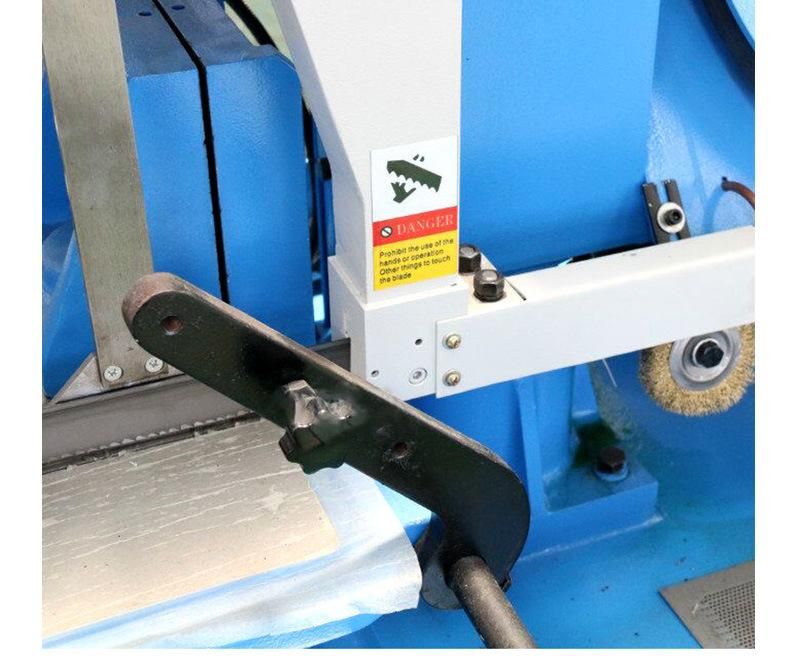

- Cleaning of Band Saw：Wire Brush and Chip Coolant
- Transport Package：Wooden Case as Customer Requirement
- Specification：GZ4235
- Trademark：HENGHUA
- Origin：China
- HS Code：8461500090
- Production Capacity：50set,Month
Description
CNC Metal Band Sawing Machine Model GZ4230 GZ4235 GZ4240 GZ4250 Max.sawing range (mm) 300*300*300 350-350*350 400*400*400 500*500*500 Saw belt (mm) 3505*27*0.9 4115*34*1.1 5000×41×1.3 5800*41*1.3 mm Sawing wire speed(mm/min) 27,45,69 27,45,69 27,45,69 27,45,69 Working clamping method Hydraulic Hydraulic Hydraulic Hydraulic Main motor power(kw) 3 3 4kw 5.5KW Voltage (V) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ Hydraulic motor power(kw) 0.75 0.75 0.75kw 1.5 KW Cooling pump power(kw) 0.04 0.04 0.09kw 0.125KW Feed speed adjustment mode Hydraulic/stepless speed Hydraulic/stepless speed Hydraulic/stepless speed Hydraulic/stepless speed Workbench height (mm) 300 300 300mm 300MM Dimension (mm) 2250*1850*1550mm 2300*2100*1700mm 2400*2350*1800mm 2800*2300*2000mm Main drive structure Worm gear Worm gear Worm gear Worm gear Tensioning method of band saw Manual Manual Manual Manual clamping system Hydraulic pressure Hydraulic pressure Hydraulic vice Hydraulic vice Cleaning of band saw Wire brush and chip coolant Wire brush and chip coolant Wire brush and chip coolant Wire brush and chip coolant
HHGB4235 band sawing machine random accessories:

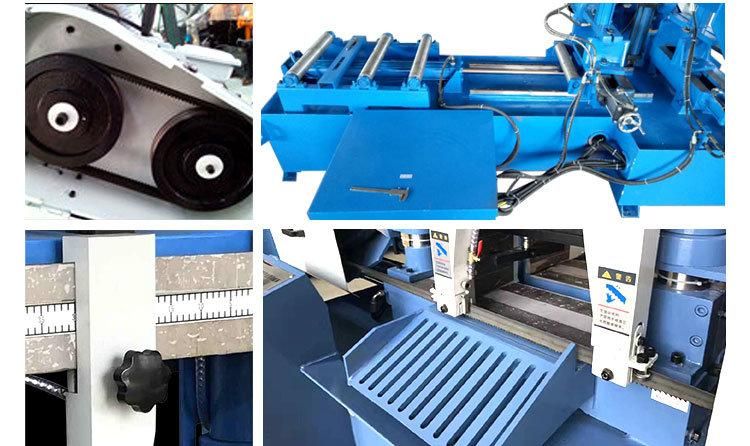

PRODUCT DETAIL:
Feature:
1.machine tools through mechanical, electrical, hydraulic coordination, with automatic clamping. automatic feeding, cutting finished, saw frame automatic rapid rise (ie retreat) function. 2. feed speed, within a given range, can be stepless adjustment. 3.The lifting and positioning of the saw frame is controlled by an ultraviolet proximity switch. 4.The length of feeding material is checked and fixed by grating ruler, and the grating ruler detects the effective range 500mm.
automatic control system:

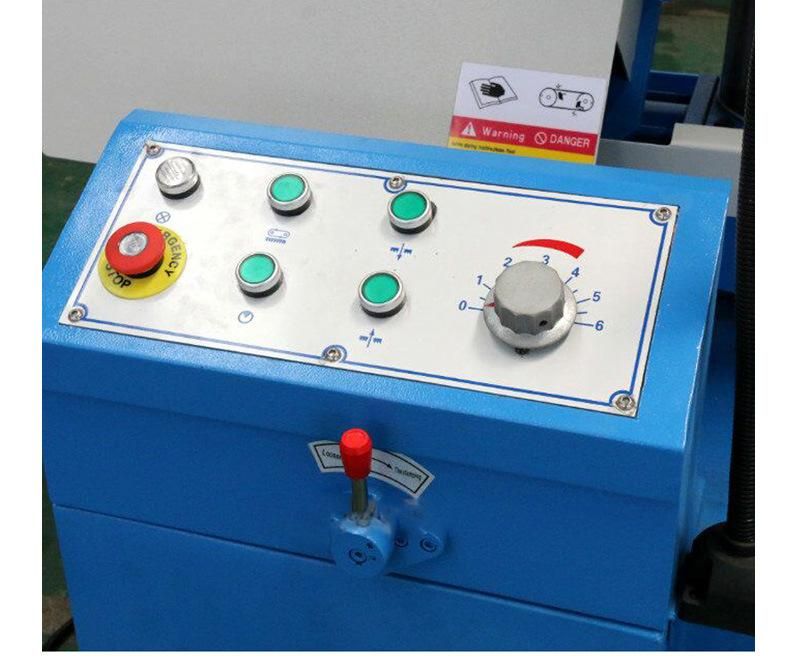

1.automatic control man-machine interface, through mechanical, electrical and hydraulic coordination, with automatic feeding, automatic cutting system to control the work cycle.

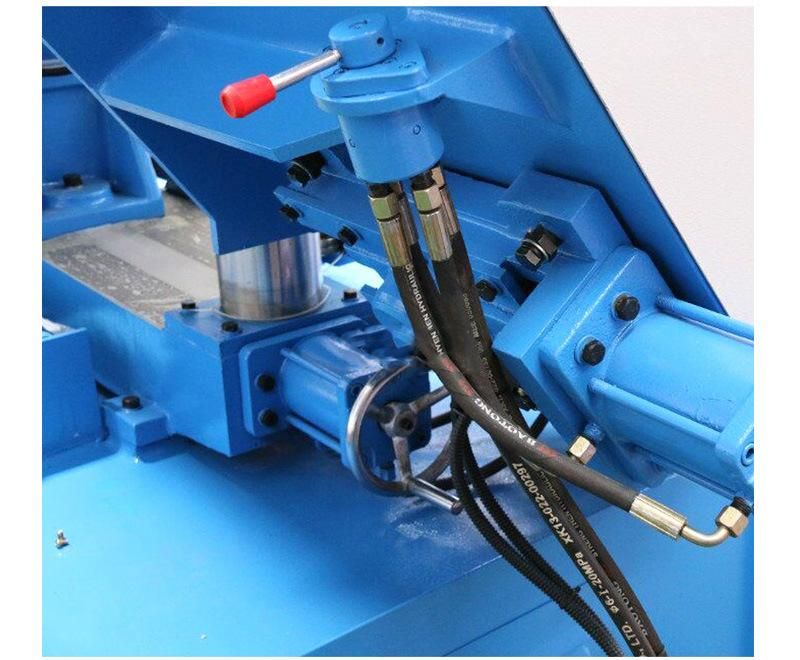

2.in the operating system is divided into manual and automatic work, man-machine interface conversion control. 3.in the band saw machine is equipped with two sets of vice, a group used for sawing when clamping, automatic feeding by another set of vice clamp,through the oil tank work to control feeding. The feeding length is controlled by an ultraviolet tight travel switch.
4.by PLC programmable controller, set sawing automatic process of the whole process.
5.feeding length is controlled by grating ruler. It is accurate in positioning, high in accuracy and less than 0.50mm in length.
6. Can be controlled by numerical control, one-way automatic feeding length 500mm.

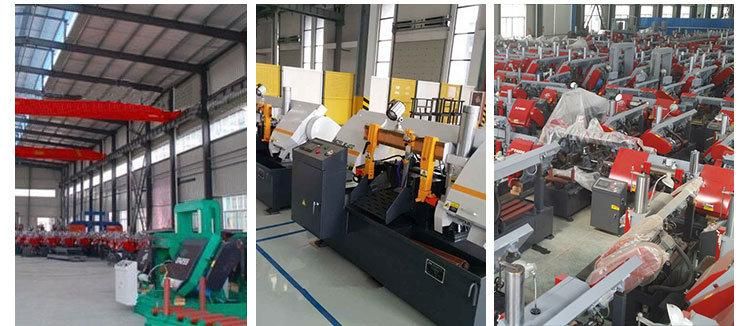

We Are Factory
We have strong flexibility as per production leadtime, delivery and mostly importantly the competative price.
Professional Before-sales and After-sales Services
We support customer to get satisfying high quality products & meanwhiles serve with our technical supports professionally.
Improvement & Innovation Keep Us Cometitive
We improves from aspects of production process, cost and service to spur mutual benefit and growth between our customers and HENGHUA.
Good Reputation from Global Customers
HENGHUA strives to attain the best relationships, friendship and great reputation from global customers.
FAQ
1. What level of service do you provide ?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
HHGB4235 band sawing machine random accessories:
| number | First name | Regulations | Quantity |
| 1 | HHGB4250 | station | 1 |
| 2 | Saw blade | Article | 1Bar (installed on the machine) |
| 3 | Pallet | piece | 1 piece |
| 4 | Manual | Share | 1 serving |
| 5 | Packing List | Share | 1 serving |
| 6 | Certificate of conformity | Share | 1 serving |
PRODUCT DETAIL:
Feature:
1.machine tools through mechanical, electrical, hydraulic coordination, with automatic clamping. automatic feeding, cutting finished, saw frame automatic rapid rise (ie retreat) function. 2. feed speed, within a given range, can be stepless adjustment. 3.The lifting and positioning of the saw frame is controlled by an ultraviolet proximity switch. 4.The length of feeding material is checked and fixed by grating ruler, and the grating ruler detects the effective range 500mm.
automatic control system:
1.automatic control man-machine interface, through mechanical, electrical and hydraulic coordination, with automatic feeding, automatic cutting system to control the work cycle.
2.in the operating system is divided into manual and automatic work, man-machine interface conversion control. 3.in the band saw machine is equipped with two sets of vice, a group used for sawing when clamping, automatic feeding by another set of vice clamp,through the oil tank work to control feeding. The feeding length is controlled by an ultraviolet tight travel switch.
4.by PLC programmable controller, set sawing automatic process of the whole process.
5.feeding length is controlled by grating ruler. It is accurate in positioning, high in accuracy and less than 0.50mm in length.
6. Can be controlled by numerical control, one-way automatic feeding length 500mm.
