Auto Four Working Station Armature Rotor Aluminium Die-Casting Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • After-sales Service：Supply
  • Warranty：1 Year
  • Control Type：PLC
  • Customized：Customized
  • Condition：New
  • Automatic Grade：Automatic

Base Info

  • Model NO.：ND-70T
  • Certification：ISO9001
  • Type：Special Casting
  • Working Station：4
  • Name：Rotor Die Casting Machine
  • Pitch Time：10-12s,PCS
  • Cycle Time：15s
  • Loading：Maunally
  • Unloading：by Mechanical Arm
  • Cooling Method：Water Cooling
  • Dimesion：1700*1600*2200
  • Transport Package：1 Ply-Wooden Case
  • Specification：customized
  • Trademark：NIDE
  • Origin：China
  • Production Capacity：100 Sets,Year

Description

70Tspecification1,Main cylinder:1main cylinder mold   lock forceKN4002main cylinder mold   lock travel mm3002,Injecting cylinder:1Injecting cyliner   travel mm1502Injecting cylinder   injecting force KN3003Injecting force(Min-Max)KN70-3004capacityL165aluminum depot   OD(Max)mm806punching head OD(Max)mm807aluminum depot   capacity(Max)kg18Injection punching   head travel distancemm559cycle times1510Rotor ODmmMax 8011Rotor stack heightmmMax 903,Motor and pump:1Pump motor powerKW7.52Divider motor powderKW0.23Oil pump (plunger   pump)L40Y4,Machine dimesion:1Main frame(L*W*G)mm

1700*1600*2200

2assembly of oil tank   and electric appliance(L*W*G)mm

1500*1000*900

3turntable ODmm8605,Cooling pump specification:1Submersible pump  powerKW1.12Submersible pump rate   of flowM3/H3.53Submersible pump   water pressureMPa0.4Remark: the max   pressure of this machine is 25Mpa / Submersible pump  power 220/380V Optional

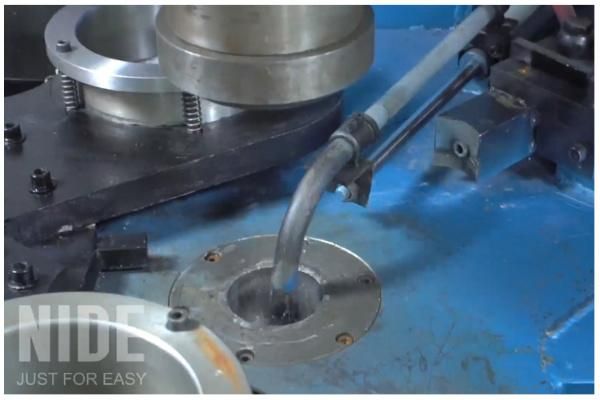

Auto Four Working Station Armature Rotor Aluminium Die-Casting MachineAuto Four Working Station Armature Rotor Aluminium Die-Casting Machine

Auto Four Working Station Armature Rotor Aluminium Die-Casting Machine
Auto Four Working Station Armature Rotor Aluminium Die-Casting MachineAuto Four Working Station Armature Rotor Aluminium Die-Casting MachineAuto Four Working Station Armature Rotor Aluminium Die-Casting Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Auto Four Working Station Armature Rotor Aluminium Die-Casting Machine
Auto Four Working Station Armature Rotor Aluminium Die-Casting Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

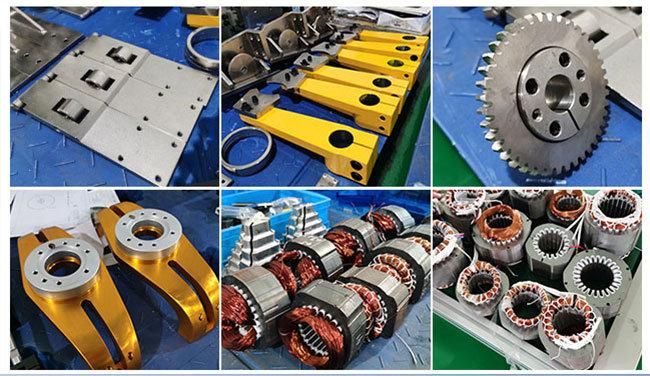

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
