• Model NO.：HCT-1225WZ
• Wire Feeding Pairs：2 pairs
• Max Feeding Speed：120m,min
• Feeding motor：2.9kw
• Quill motor：0.75kw
• Wire Rotation motor：2.9kw
• Spinner motor：0.4kw
• Forming motor：0.85kw*8
• Weight：1500kg
• Related Wire Feeding Machine：HCD-200
• Packing Dimension：L2000*W1900*H2200
• Transport Package：Vacuum Packaging Wooden Case
• Specification：L1600mm*W1120*H1750mm
• Trademark：WECOIL
• Origin：China
• HS Code：8463300000
• Production Capacity：500 Sets

Basic Info.

Model NO. HCT-1225WZ Wire Feeding Pairs 2 pairs Max Feeding Speed 120m/min Feeding motor 2.9kw Quill motor 0.75kw Wire Rotation motor 2.9kw Spinner motor 0.4kw Forming motor 0.85kw*8 Weight 1500kg Related Wire Feeding Machine HCD-200 Packing Dimension L2000*W1900*H2200 Transport Package Vacuum Packaging Wooden Case Specification L1600mm*W1120*H1750mm Trademark WECOIL Origin China HS Code 8463300000 Production Capacity 500 Sets

Product Description

WECOIL Spring Machinery--Professional for CNC Spring Machine over 30 years, the leader for CNC Spring Machine Industry.

Company Profile:

Wecoil (Dongguan Wecoil Spring Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic Wire Feeding machine, the wire size covers 0.15mm to 10.0mm.



WECOIl Advantanges:

1. The founder Mr. Lau has 34 years experience in CNC Spring Machinery Industry since 1986.

2. Over 20 different types of CNC Spring Coiling Machine, CNC Spring Forming Machine, CNC Versatile Spring Machine to fullfil clients with more choices.

3. 2000m² large production floor to guarantee enough inventory.

4. Adopt the most widely used Taiwan Hust Controller and Japan Sanyo/Yaskawa Motor and high-end precision bearings such as NSK/NTN/IKO.

5. All the workers, Assembly Team, Electrical Team, Spring Testing Team, Sales team, even the Packaging  Personnel are with at least 7 years experience in Spring Machinery Industry which guarantee our machine with high performance.

HCT-1225WZ--Machine Introduction:

1.HCT-1225WZ 12 axes CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Japan Servo Motors to control the feeding system and Cam system synchronously. It is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, Magazine spring, Spiral spring and any kind wire forms.

2. It is designed with no rocker arm and camless, the slide base is separately controlled by eight Servo Motors, There are total 12 axis, 8pcs slider axis (the eight sliders are controlled separately by eight Servo Motors), 1pc Wire Feeding Axis, 1pc Quill rotating Axis, 1pc Wire Rotation Axis and 1pc Spinner Axis.

3. It's with wire rotation function, so it can rotate at 360 degrees and it's convnient to make the complex angles and hooks with short time.

4. It's optional with hydraulic scissor, so it's easy to cut the big wire and greatly reduce the damages to the quill and machine.

5. It's optional with Pneumatic Front Safety Door, which can greatly increase the safety.

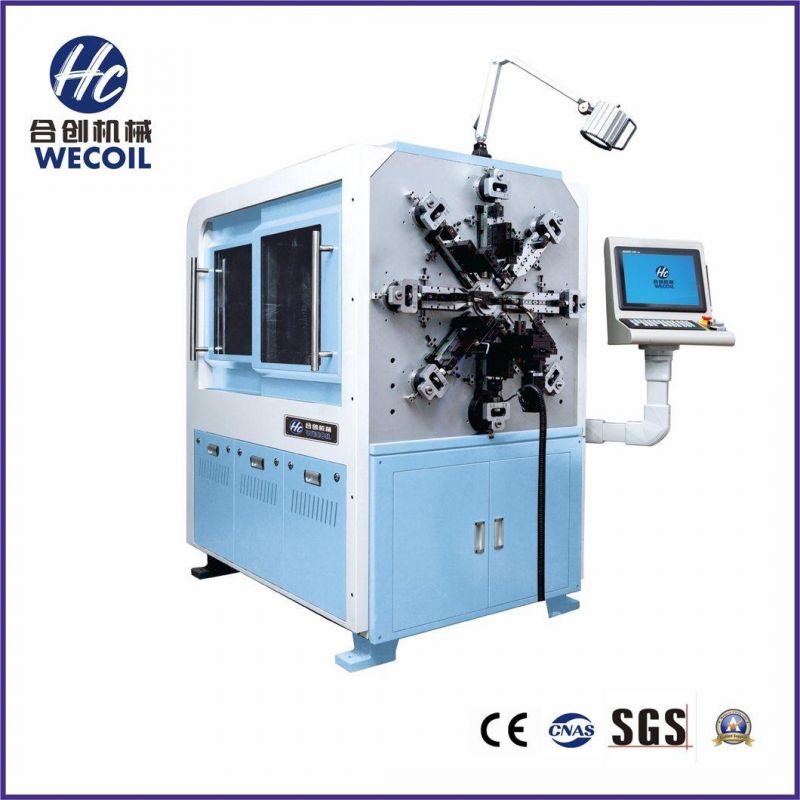

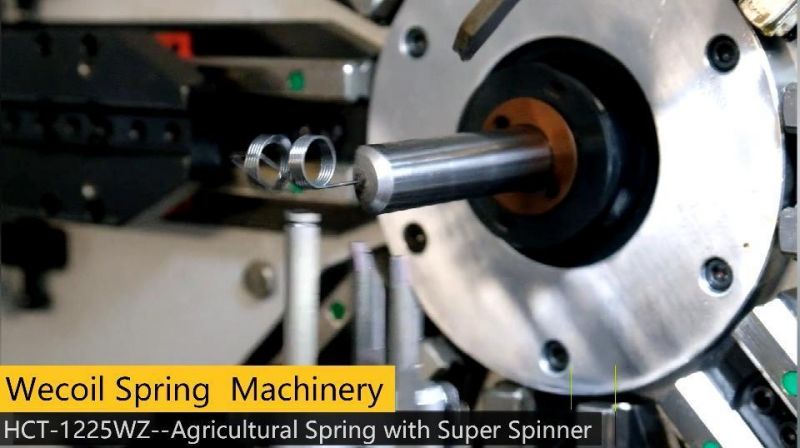

HCT-1225WZ--Machine Photo and working interface

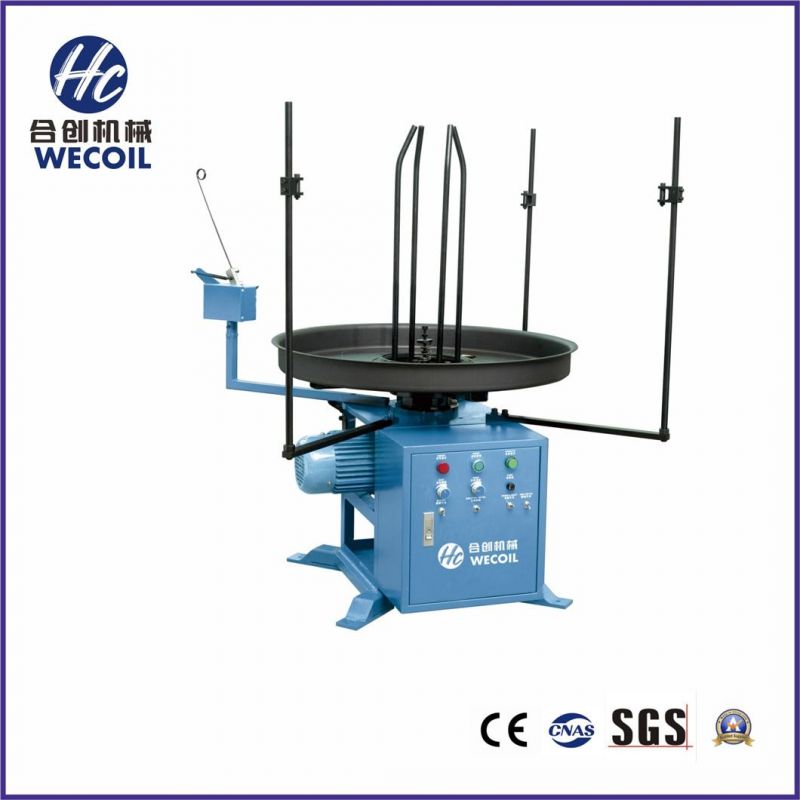

Related Automatic Wire feeding machine HCD-200 (It can also optional with larger one)

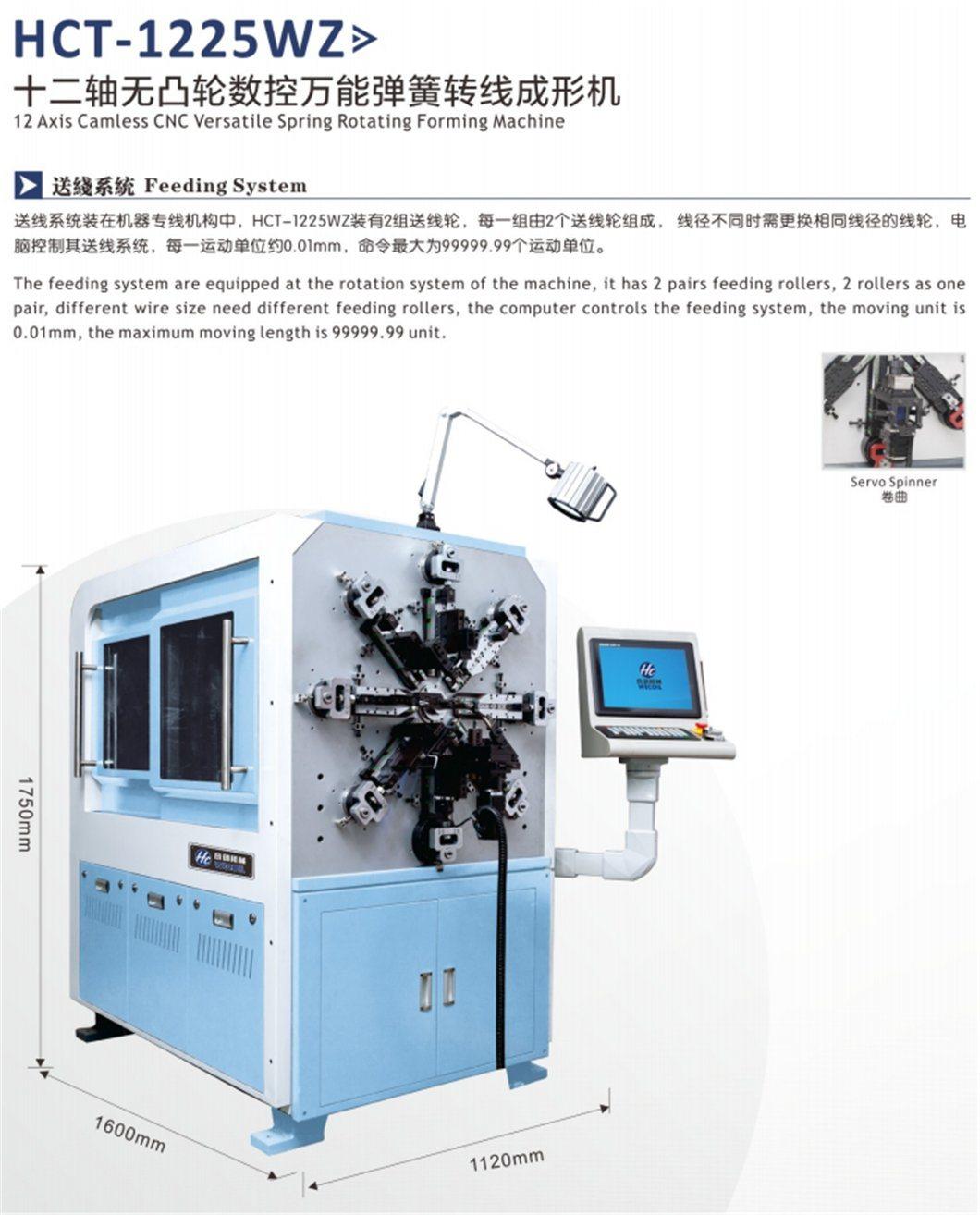

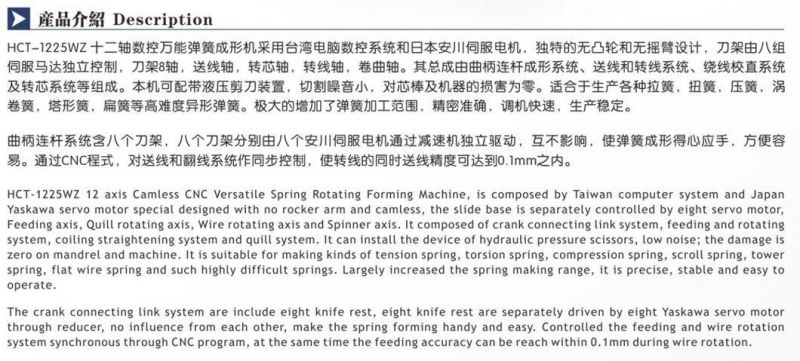

HCT-1225WZ-Machine Catalog & Description & Specification

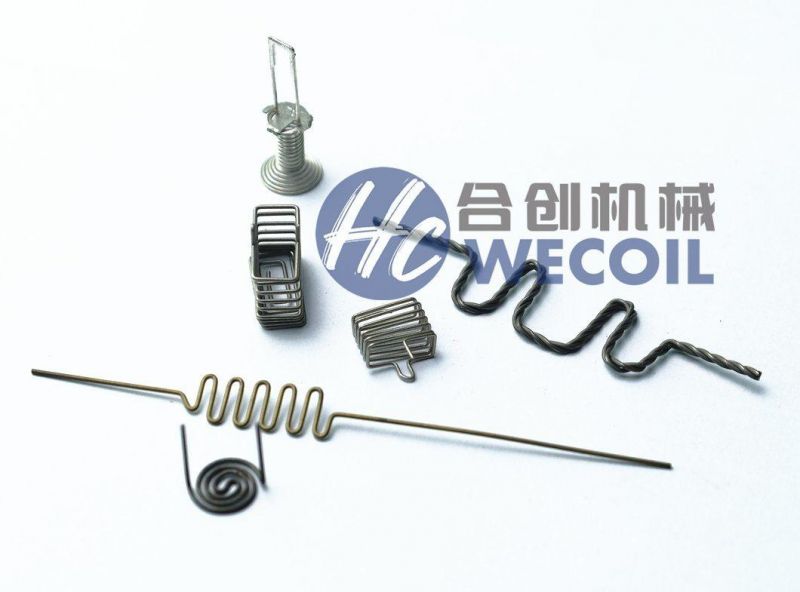

WECOIL--Springs Samples tested on Wecoil Spring Machinery

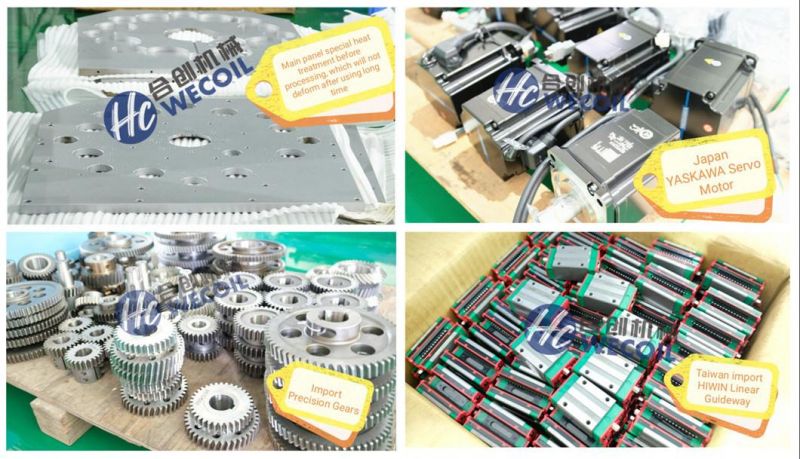

WECOIL- Spareparts

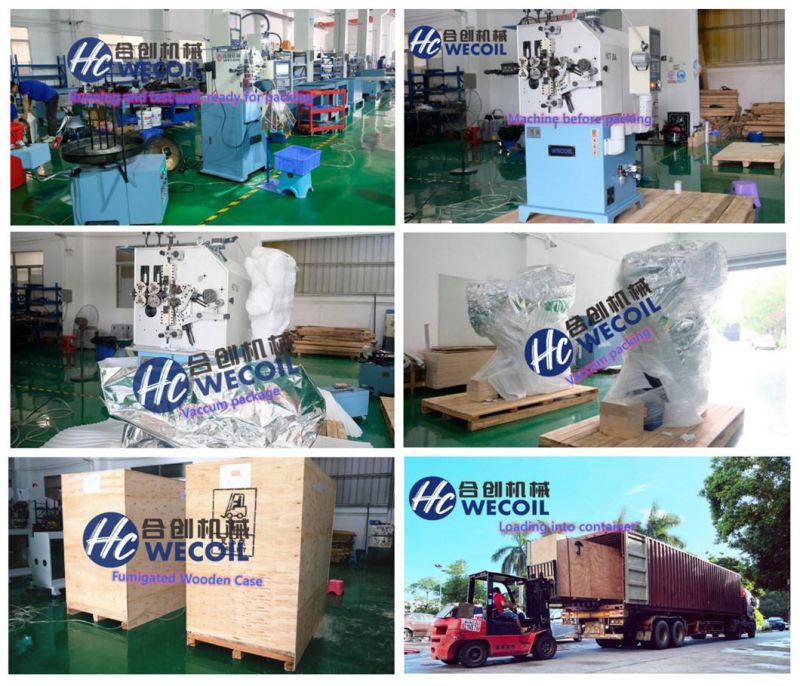

WECOIL--Packaged with Vaccum Package Wooden Case and Loading

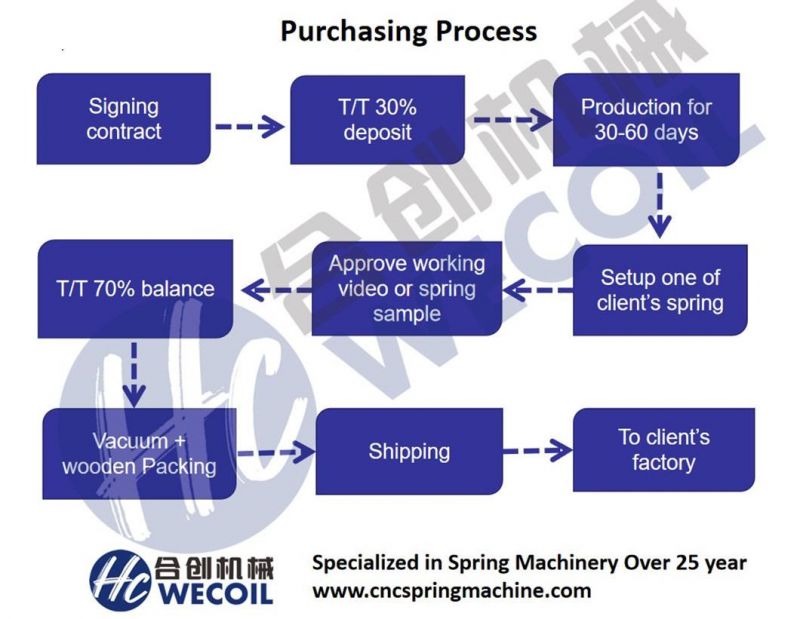

Purchasing  Processing


Wecoil High Quality professional pre-sale, sale and after-sale service.

1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery.

2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution.

3. Quick and safe shipment as per your requirement,such as the booking, container loading, and shipping documents  etc...

4. WECOIL will provide technical support by email and phone, technicians will be available at your side if necessary.

5. One-year guarantee period exclude the easy torn parts.


Any Consultations and Inquiries are welcome!
