• Model NO.：ZLQ-10
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Automation：Automatic
• Type for Cutting Machine：CNC Cutting Machine
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：CNC Cutting Machine
• Type：CNC Cutting Machine
• Control System：Hypertherm Start-2000 Wuhan LAN Sun-IV Lansun V
• Working Mode：Untouched Arc Striking
• Interface：True Colour English or Russian
• Power Supply：Hypertherm Powermax1650 Kliby Fine Focus450 China
• Material Cutting：Steel Iron Stainless Metal Sheet etc
• Transport Package：Wooden Case
• Specification：standard
• Trademark：LANSUN or as required
• Origin：Hubei, China
• HS Code：84569010
• Production Capacity：100sets,Month

Technical specification:Cross Beam Length(X axis)3m (can be lengthened )Longitudinal Rail Length(Y axis)3m ( can be customized)Effective Cutting Width (X axis)2.2mEffective Cutting Length (Y axis)1.8mCutting ModeFlame only; Plasma only; Flame and PlasmaDrive ModeBilateral-sideDrive MethodRack and pinion drive for X and Y axesFlame Cutting Thickness5-200mmPlasma Cutting Thickness1-60mm (according to the specification of plasma power source)Cutting SpeedFlame: 0-3500mm per minute; Plasma: 0-8000mm per minuteMoving Precision0.01mm per stepPower Source (option)220V 50Hz 500-1000WNesting Software (option)INTERGNPS, FASTCAMCutting GasAcetylene, PropanePlasma GasPressed air, Oxygen, N2Automatic Torch Height Controller(option)CHC600Capacitive height controller for flame cuttingPHC330Arc voltage height controller for plasma cuttingPackage Picture:

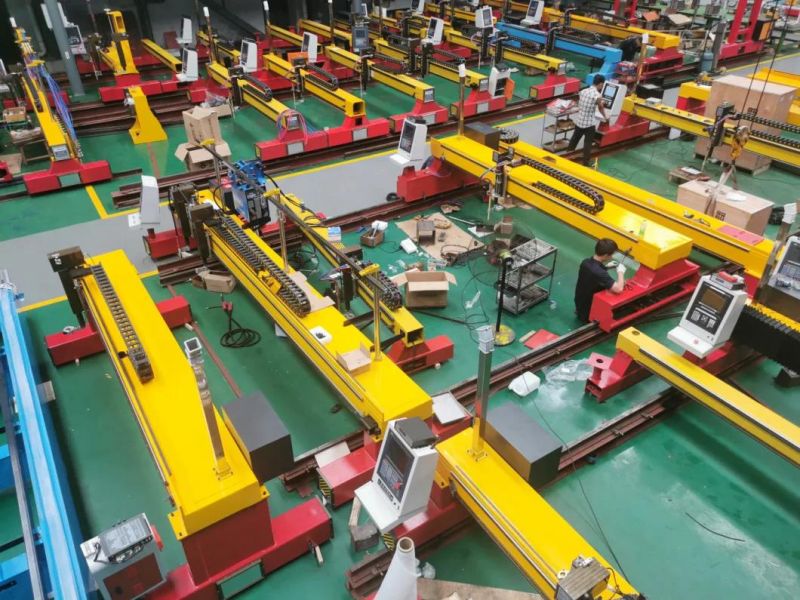

Our Factory:

Customer Visit:
CE&ISO Certificate:

FAQ:
1. Are you factory or foreign trade company?
We are over 17 years experienced manufacturers, large-scale production of CNC cutting machine.

2. Where is your factory located? How can I visit there?
Our factory is located in Wuhan, Hubei. We will meet you at airport or train station. Warmly welcome to visit us!

3. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours. Our factory has gained CE, ISO9001 authentication.

4. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.

5. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and fuel gas.
(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.

6. What are your payment terms?
We support T/T, L/C, Western Union, Alibaba Trade Assurance and so on. Other ways can also be received after we both sides discussion and agreement.
