• Model NO.：CNC POlishing Machine
• Transport Package：Wooden Case
• Specification：5300*3400*3000
• Trademark：Delin Machinery
• Origin：China
• HS Code：84543090
• Production Capacity：500000

Basic Info.

Model NO. CNC POlishing Machine Transport Package Wooden Case Specification 5300*3400*3000 Trademark Delin Machinery Origin China HS Code 84543090 Production Capacity 500000

Product Description

CNC Polishing Machine Four-Six-Axis/Two-Six-Axis:
Product Introduction:
THis is a special Four/Two-six-axis CNC polishing machine,it has 6 DOF,Operation in 4/2 positions synchronously,flexible and high effective,widely used in the product polishing of sanitary ware,door hardward,auto parts,etc.
The control system uses current modern sport control technology,it has stable performance and high accuracy control
Program mode:tech program,uses manual mode to simulate the artificial polishing and record the track, and it can automaticlly opertaion accourding to this path.
Automatic compensation function of the polishing wheel:The system can detect the torsion decrease and realize automatic compensation after loss of the polishing buffing.
Linear velocity compensation:The system increase automatically rotate speed to compensate the linear velocity when the buffing OD decreases.
Spray was setting:can set the spray was time and frequency freely according the product feature.
All-digital control,the procedure can be saved and be on call at any time.
Technical Parameters:

		Four-Six-Axis	Two-Six -Axis
No	Content	Parameter
1	Perormance Dimension	5300*3400*3000	2800*3655*2800
2	Machine Voltage	32kw	24kw
3	Rated Power	380V	380V
4	Max polishing wheel dimension	600mm	600mm
5	Min Polishing Wheel Dimension	400mm	400mm
6	X Axis Travel	900mm	900mm
7	Y Axis Travel	825mm	825mm
8	Z Axis Travel	700mm	700mm
9	U Axis Travel	±90°	±90°
10	V Axis Travel	±360°(Positive Inversion)	±360°(Positive Inversion)
11	W Axis Travel	±360°(Positive Inversion)	±360°(Positive Inversion)

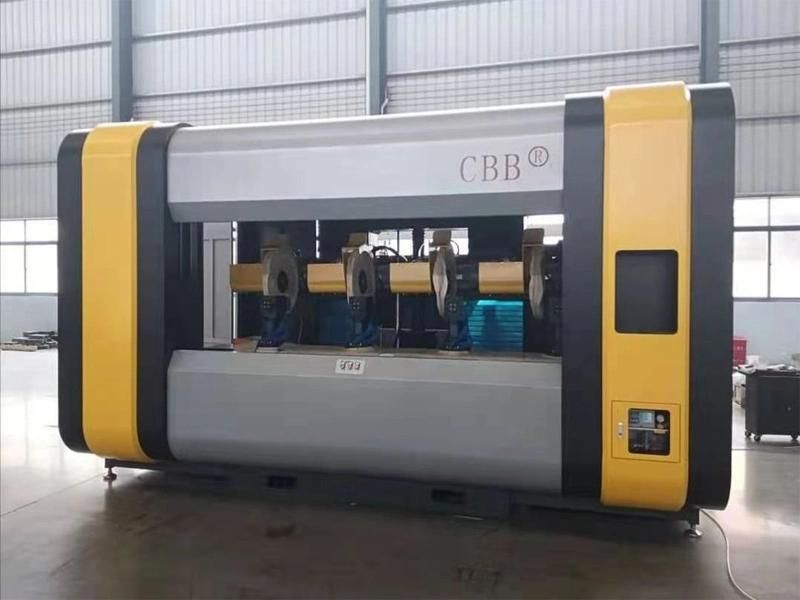

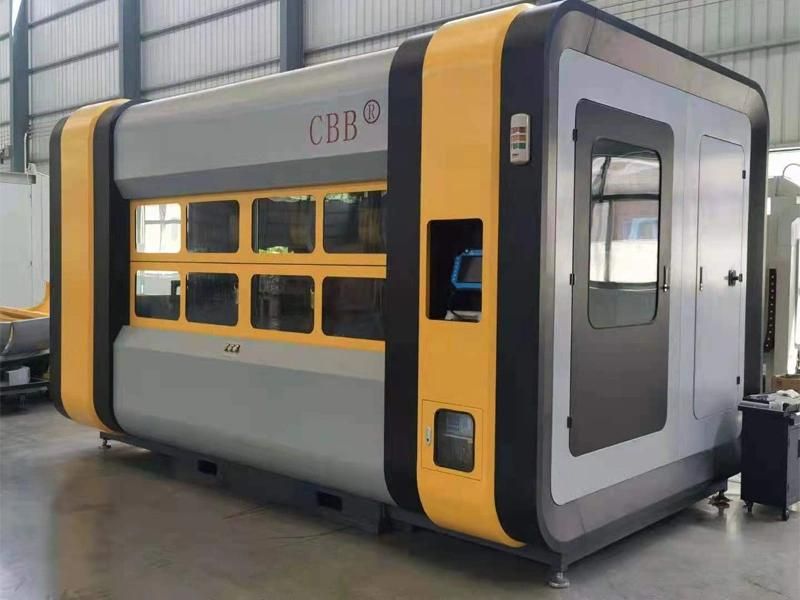

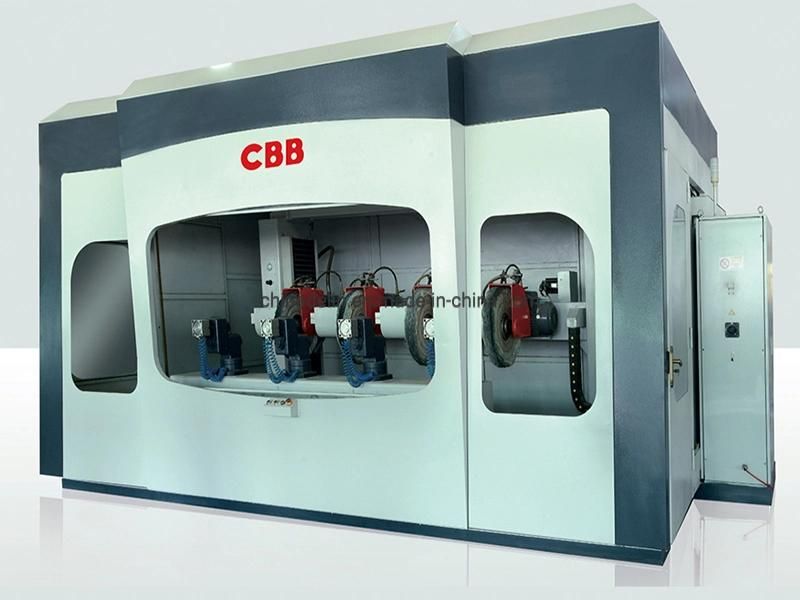

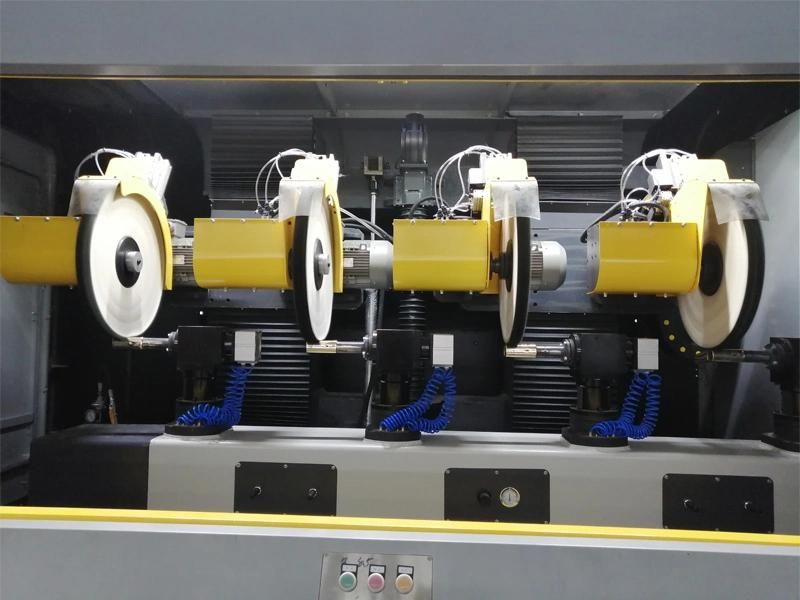

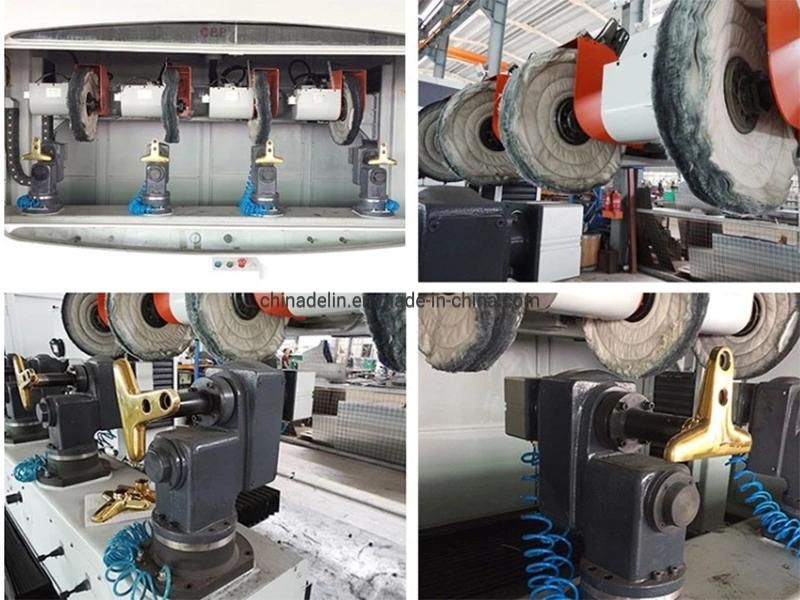

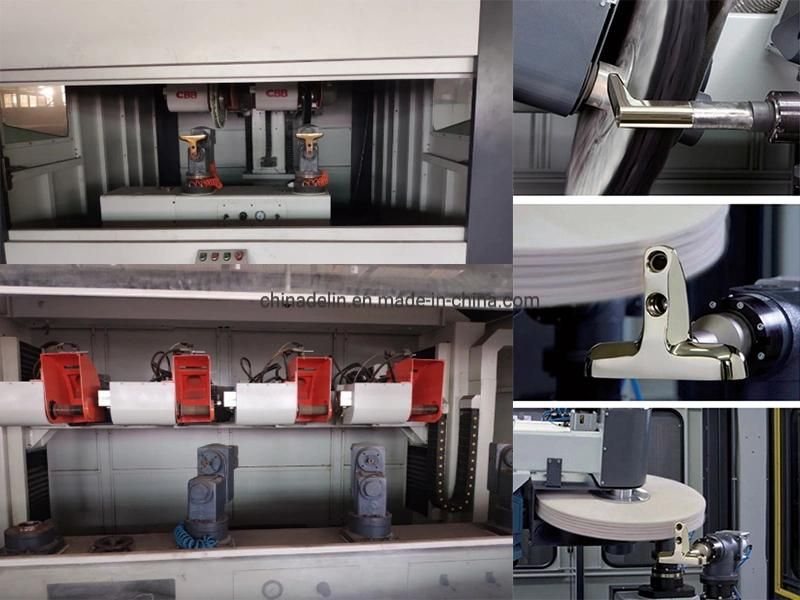

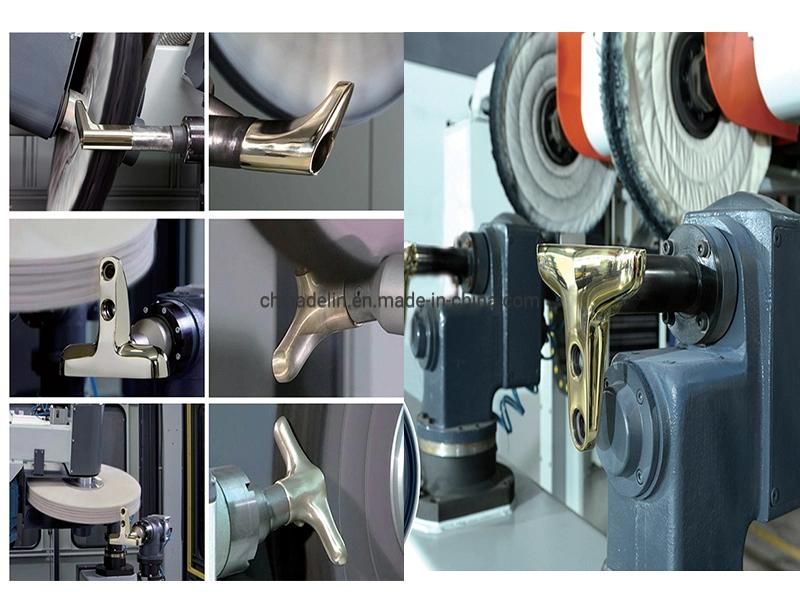

Our CNC Polishing Machine:








FAQ:
Q 1,Are you trading company or manufacture?
A: Yeah,Definitely We are manufacture

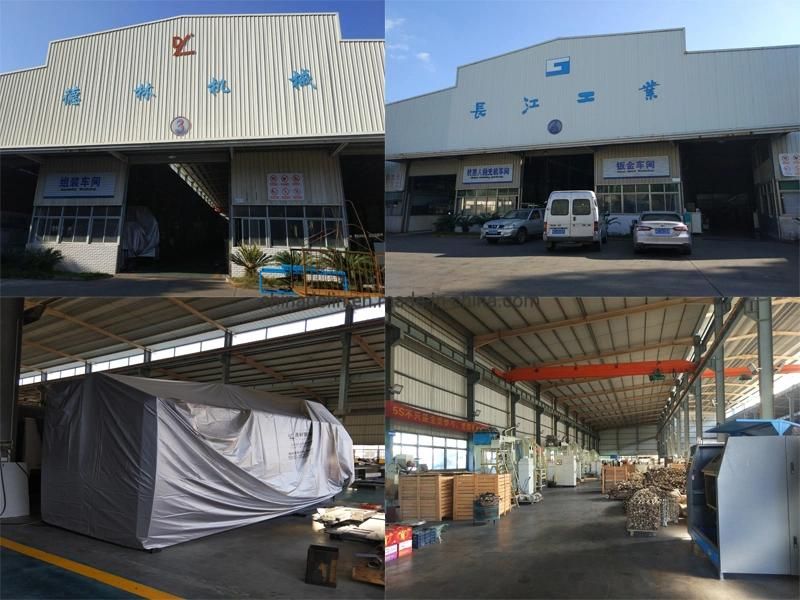

Q 2,Where is your factory Located?

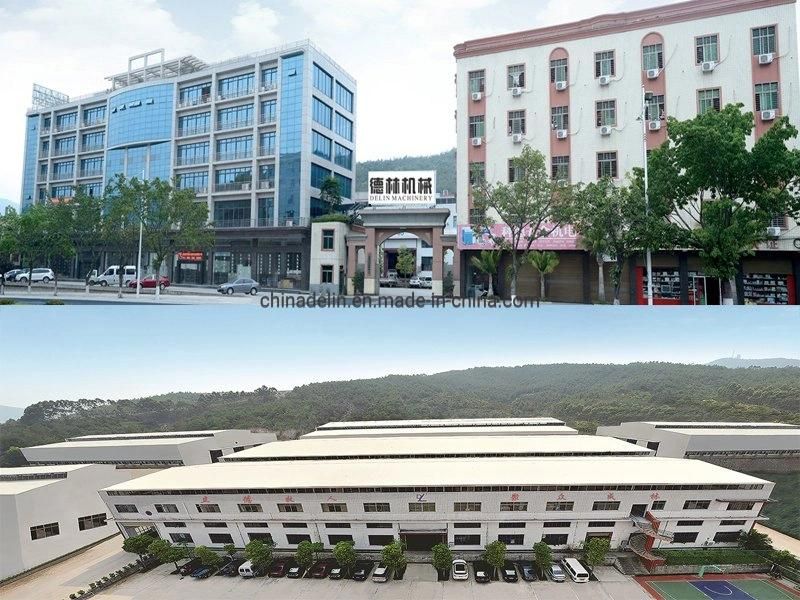

A,Our factory is located in Quanzhou,Nanan City,Very closed to Xiamen Airport,it will take almost 1hours to the airport.
Q 3,When Can I have your price?
A:We are glad to offer you the best price, but firstly,please provide us the information of your material,with the detailed technical parameter, then we can recomment you the best suitable machine.
Q 4,How do we know how to operate and maintain the machine?
A: We will provide you the operation instruction in English Version,If you need,we will send our technician to your place and help you to train your people.
Q 5,How do you guarantee the quality?
A:That's a good questions,We are manufacture,we have our own factory,We have high repulation in China,You can check your friends or people in this line in china,they know Delin Machine.
