• Model NO.：CS-C
• Weight (Kg)：1080
• Line Wire Diameter：1.6-2.8mm
• Barbed Wire Diameter：1.6-2.4mm
• Barbed Distance：4′(10cm) 5′(12.5cm)
• Producing Speed：4′(720m) 5′(900m)
• Production Efficiency：40kg,H (Line Wire2.0 mm, Barbed Wire 1.6mm)
• Machine Dimension：3000*1100*1300 mm
• Pay off Rack：4 PC
• Transport Package：Wooden Pallet and Plastic Package in The Container
• Specification：SGS ISO CE
• Trademark：KAIYE
• Origin：an Ping He Bei China
• HS Code：84633000
• Production Capacity：50set,Month

ModelGWC-2400Welding speed40-60 times/minWire diameter4.0-8.0mmRated power125KVA X 6Line wire space100-300mmLine wire feedingWire rod wire feedingCross wire space50-300mmCross wire feedingPre- straightening & pre-cutMesh widthMax.2400mmMachine overall Size16m*3.2m*2.3mWelding points24Length wire mesh adjust

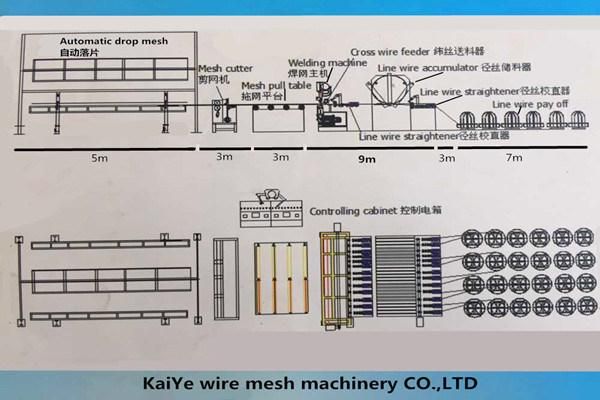

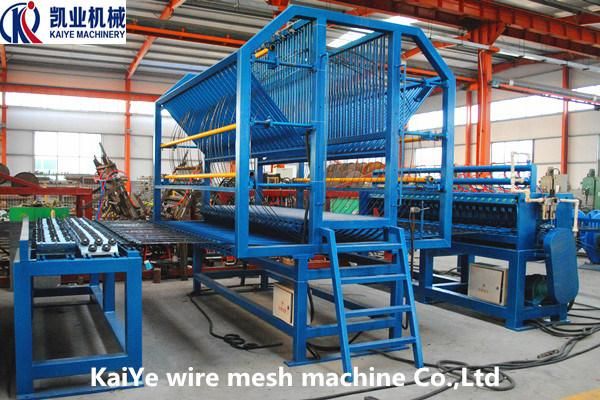

Cross Wire Feeding Unit (pre-cut)
It is installed in the upper of the mesh grid set device. It consists of walking platform,cross wire stacking unit, wire distribution device and feeding device. The distribution device and the wire feeding device are driven by machine system under the operation by electrical control system.
Automatic cross wire feeding without the need for manual labor. It is designed for the cross wire is fed from pre-cut wire.

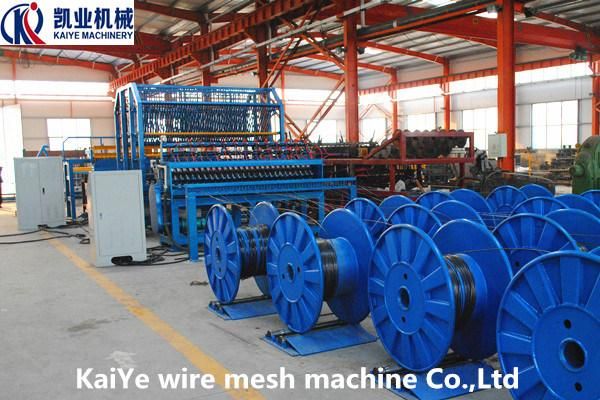

Line Wire Accumulator
When mesh welding feeding movement the stepping speed and straightening puller feeding movement is different,storage rack is line wire in welding for the two different movements provide a buffer.

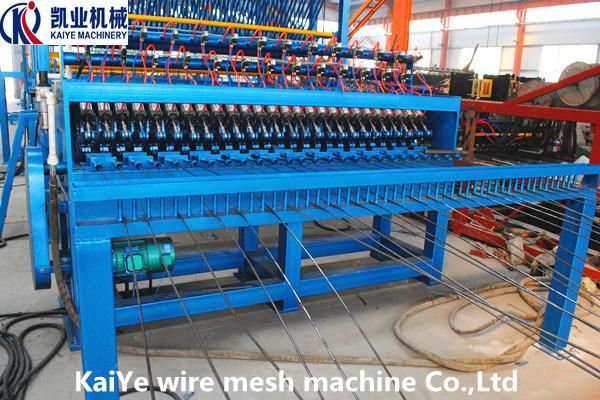

Welding System
Welding system is made up of the framework, transformer, welding electrodes, cross wire magnetic locator,lift mesh unit, line wire straightening device, water cooling system and other parts.


CNC Mesh Position Unit
Mesh position unit usage is feed forward the welding mesh, at the same time ensure that need horizontal spacing in need,Automatically adjust line wire spacing according to set.
It can automatically adjust the cross wire spacing and store the data,Adjust the cross wire spacing is very convenient, simple and accurate.


Line Wire Straightening Table
24 sets straightening units for line wire(based on the mesh width is 2400mm, mesh opening is 100X100mm)
The line wires are straightened through vertical straightening device, horizontal straightening device to promise the high straightness.

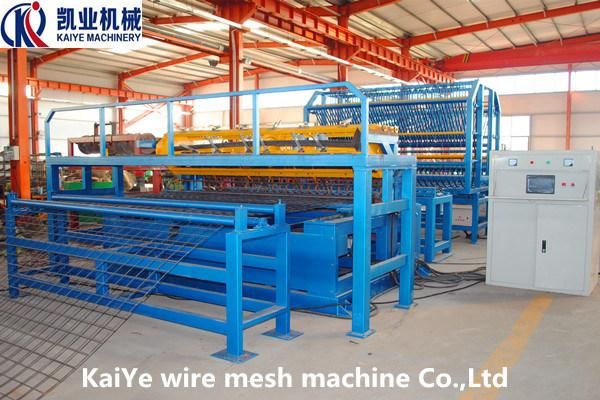

Mesh Pull Out System And Conveyor
Mesh conveyor consists blanking plate, gantry, pull mesh device,mesh flip device.
Max length of wire mesh :6000mm, The blanking plate uses the pneumatic device.








In order to give you one accurate quotation sheet,please supply us more of your requirements as below:



1.wire diameter range(3-5mm or 4-8mm).

2.mesh width(2000mm,2500mm,3000mm).

3.mesh opening size(50-300mm or 100-300mm).

4.mesh length(According to your needs).

5.industrial votalge/frequency(The standard is 380V 50HZ).





If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.
