Light Gauge Steel Framing Machine in Steel Frame and Purlin
Xiamen Xinhonghua Machinery Co., Ltd.- Feature：Fully Automatic Operation
- Production Cap：25m, Min
- Dimension(L*W*H)：7800*600*1300mm
- Voltage：380V
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Thickness：1.0-2.5mm
Base Info
- Model NO.：C89
- Working Speed：2700m,H
- Effective Width of Panel：89mm
- Raw Material：Q235

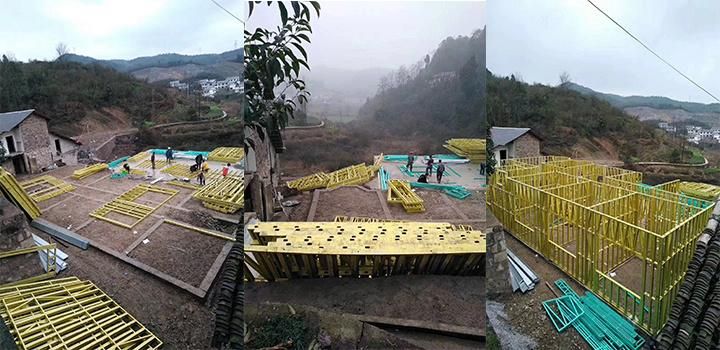

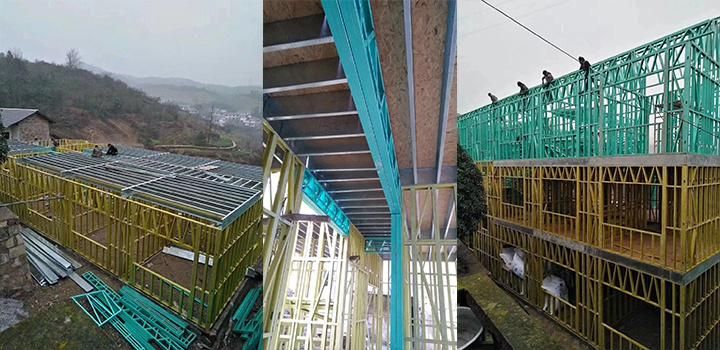

- Application：Steel Fabricated House, Steel Structure Platform

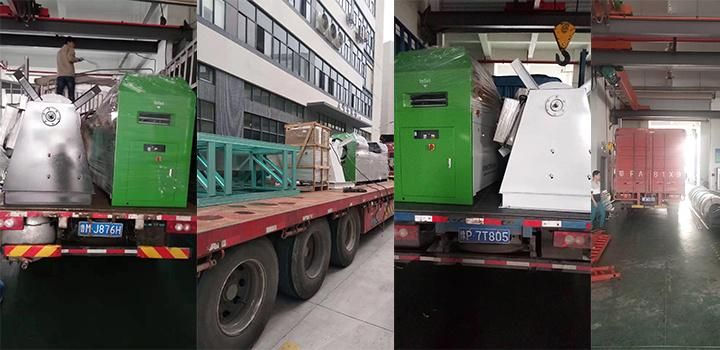

- Transport Package：Export Standard Packing
- Specification：1000, 914, 1219, 1220mm
- Trademark：Special Purpose Steel, XHH
- Origin：Xiamen
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Size
3700*800*1000mm
Weight
3T

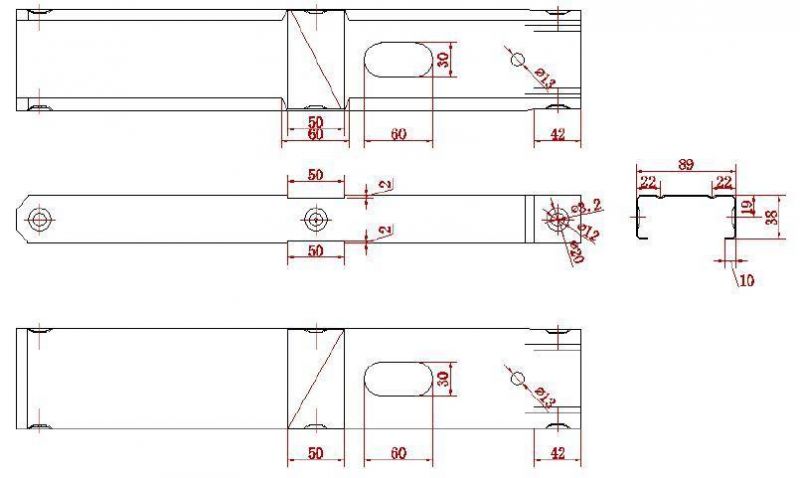

Profile Size
89*38*9mm
Main Servo Motor Power
5.5KW
Hydraulic Motor Power
5.5KW
Voltage
380V/50HZ/3PH
Forming Steps
9+2steps for reshaping
Processing Speed
25-30m/min
Feeding Width
174mm
Efficient Width
89mm
Thickness
0.7-1.2mm
Tolerence Of Forming
±0.5mm
Color
Magic Green
Decoiler
5tons Decoiler
2. Main Accessories
