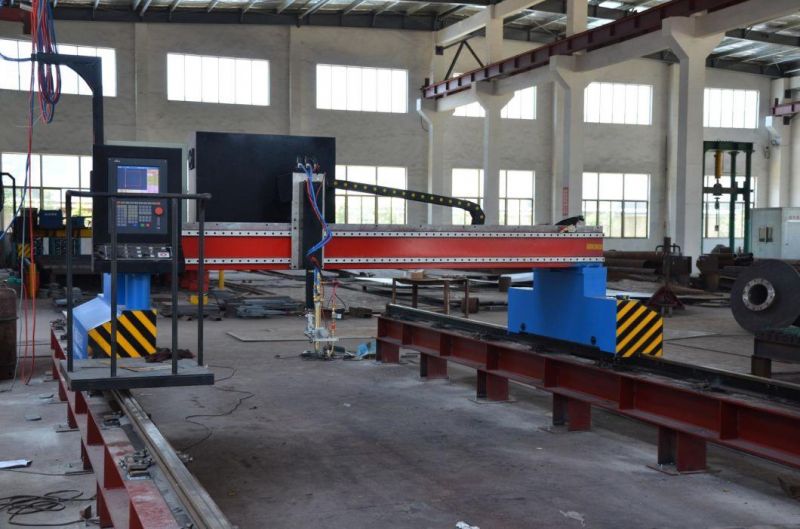

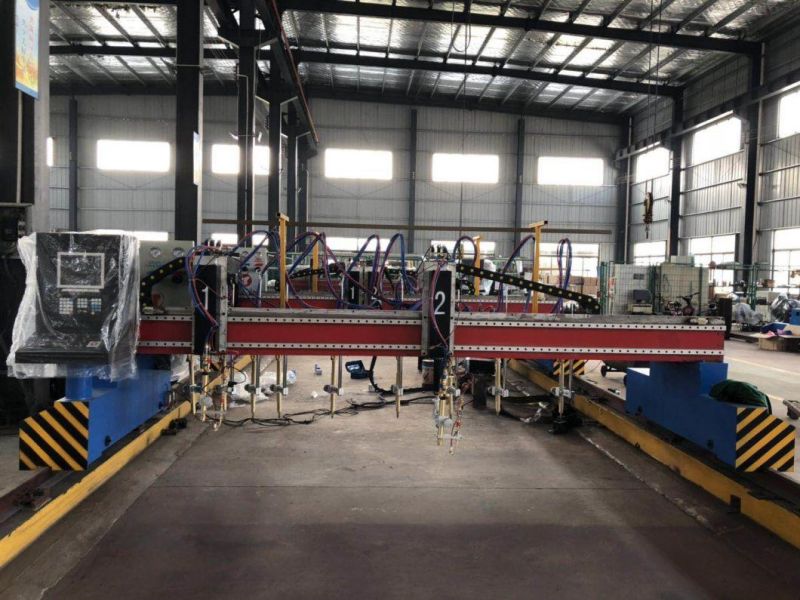

China Cheap Automatic CNC Metal Steel Plate Carbon Steel Stainless Steel Plate Automatic Gantry Type Flame Plasma Straight Strip Cutting Machine for H Beam
Dongtai Yaoqiang Welding Facture Co., Ltd.- After-sales Service：Oversea After-Sale Service
- Warranty：12 Months
- Customized：Customized
- Layout：Horizontal
- Cutting Material：Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：CNC3000, CNC4000, CNC5000
- Power Source：Gas
- Cutting Mode：Plasma Cutting
- Plasma Cutting Thickness：100mm
- Rail Span：4000-8000mm
- Cutting Thickness：6-100mm
- Driven：Single,Double
- Highest Speed：6000mm,Min
- Cutting Speed：100-1000mm,Min
- Plasma Cutting：Max. 40mm
- Straight Strip Cutting：10 Groups
- Type：Gantry Type
- Vertical Cutting Torch：150mm
- Transport Package：Wooden Package or Simple Package
- Specification：CNC3000, CNC4000, CNC5000
- Trademark：Yao Qiang Technology
- Origin：Jiangsu, China
- HS Code：84569090
- Production Capacity：100 Sets,Year
Description
Depending on plasma power model, optional6000 200 CNCI-3000 Single side 3000 2100 6000 200 CNCI-4000 Single side 4000 3100 12000 200 CNCII-4000 Double sides 4000 3100 12000 200 CNCII-5000 Double sides 5000 4100 12000 200 CNCII-6000 Double sides 6000 5100 12000 200 CNCII-7000 Double sides 7000 6100 12000 200 CNCII-8000 Double sides 8000 7100 12000 200 CNCII-9000 Double sides 9000 8100 12000 200
Supply range and units:
(1) the rack Assembly : vertical big horizontal car, straight cutting torch guide rails, pipes, steel, hanger, drag chains, steel bodies;

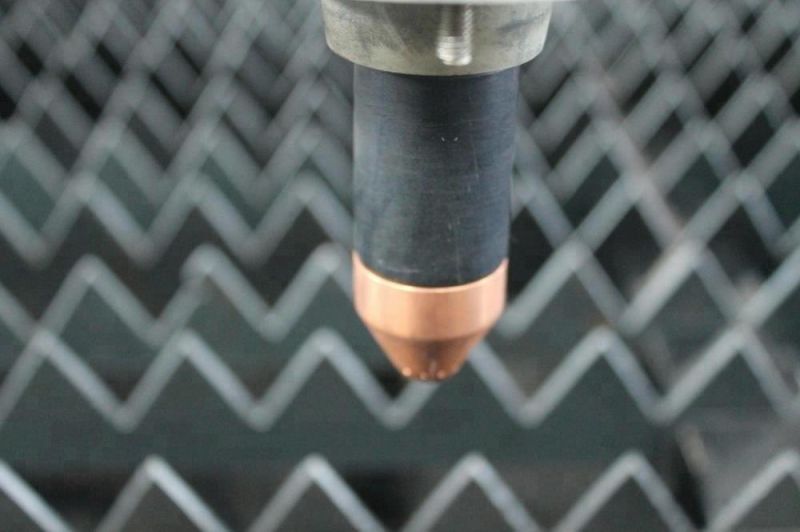

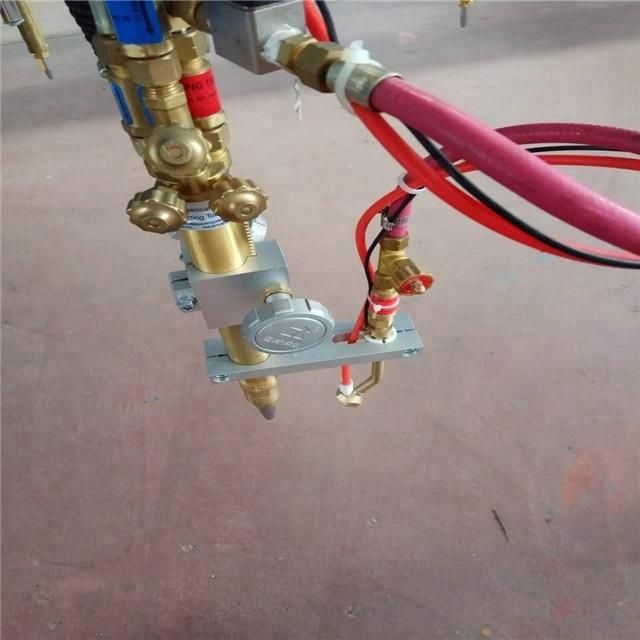

(2) cutting torch Assembly with 1 set of CNC cutting torch, cutting torch adjustment;
(3)straight strip cutting 10 groups
(4) drive assembly : servo motor, high precision gear boxes, mobile gear, gear, etc;

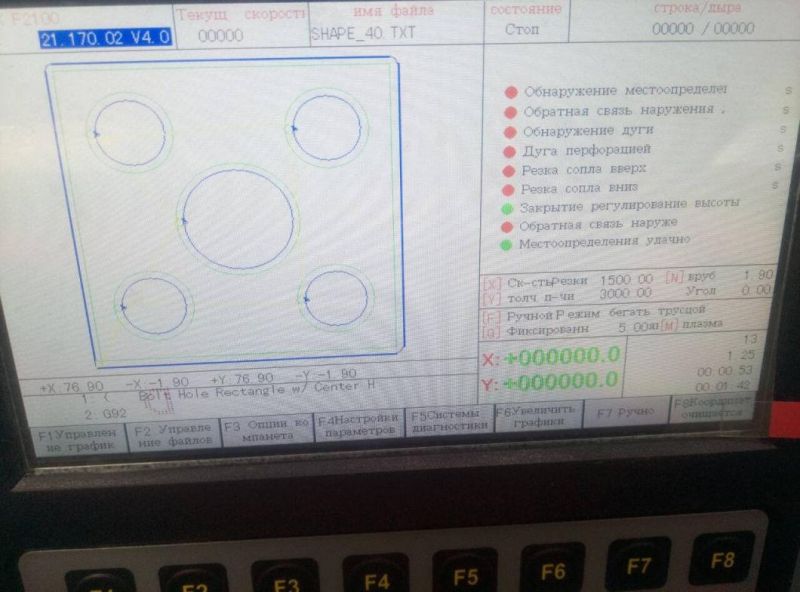

(5) electronic control system : CNC, CNC box, keyboard, electric control box;
(6) cable assembly includes: CUT160 Plasma cutting ,arc voltage high
(7) the Assembly of the gas source : total air supply hose and thread blocks;
(8) spare parts :
Cutting nozzle 0-1# total 2*11(22)
X axis&Y-axis travel gear *1
Temper-proof device 5
Push button switch 5 only
DC-24V Relay 2 only
4A Molten core- 3
Users make self-contained parts :
(1) the thread frame, rail base (supplier's drawings).
(2) Foundation (drawings).
(3) the anchor bolt (or bolts).
(4) the rail assembly :16mx2 (24kg/m,length according to actual need) Rails, rack, plate and adjust the pad and so on;
