• Model NO.：CNC-1280R
• Trademark：Jiangnan Machinery
• Origin：China

Basic Info.

Model NO. CNC-1280R Trademark Jiangnan Machinery Origin China

Product Description

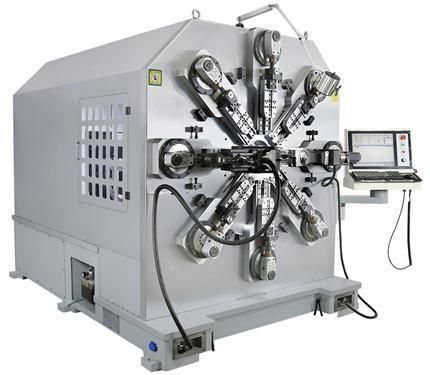

CNC-1280R CNC Camless Spring Rotary Machine

The machine functions and features:
1.Camless ,no rocker arm design(Saving about 50% on debugging compare with cam machine).
2.Imported slider,keep the precision permanently.
3.The collision of protector,compound tools finish all the processes.
4.It combines the design of Jiangnan and manufacturing technique, the only one, and protected by patent.
5.The computer offers windows operation,display in both English and Chinese,easy to learn,understand and operate.


Technical Parameters:


Item	Parammter
Model	CNC-1280R
Count	12
Wire Diameter	3.0-8.0mm
Wire Feed Length	±0.1-±9999.99
Wire Feed speed	0-60m/min
Feeding Length	Unlimited
Slide Servo Motor	5.5KW*8
Wire Feed Servo Motor	30KW
Axis Servo Motor	1.8KW
Rotary Servo Motor	5.5KW
Spinner Servo Motor	1.5KW
Power Ac	380V±10%V50Hz
Dimensions(L*W*H)	2800*2000*2200mm
Machine Weight	7500kg

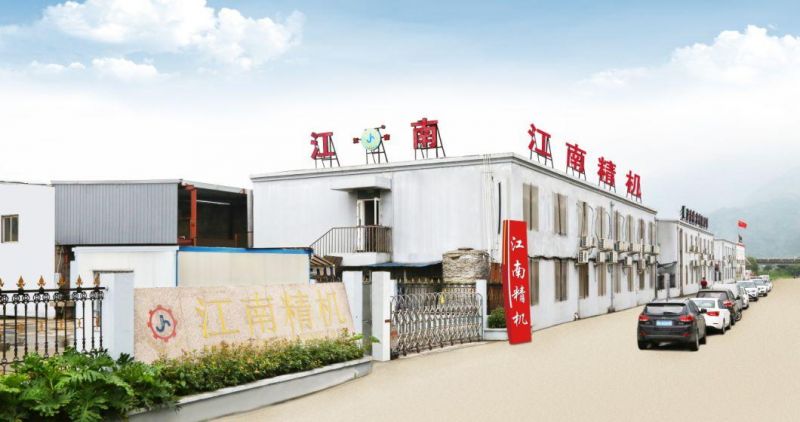

Wenzhou Jiangnan Precision Machinery Co., Ltd. formerly called as Wenzhou Jiangnan Spring Machinery PM, founded in 1991, Zhejiang Sci-tech enterprise, the member of director units of China General Machine Components Industry Association, Integrates R&D. production and sales, specializes in the development and production of Jiangnan branded Model No,CNC-82S, CNC-835, CNC-860 computerized universal spring forming machine. Model No. CNC-YH616, CNC-YH640, 660, 680, 6120, 6160, 6200 series pressure-spring machine or the like; Model No. YK3610CNC gear hobber, Model No.YK3610-A CNC gear hobber: Model No. Yk3620 CNC gear hobber, YK3640 CNC gear hobber,Automatic CNC Spring Grinder, obtained national invention patents and ulilify model patents.

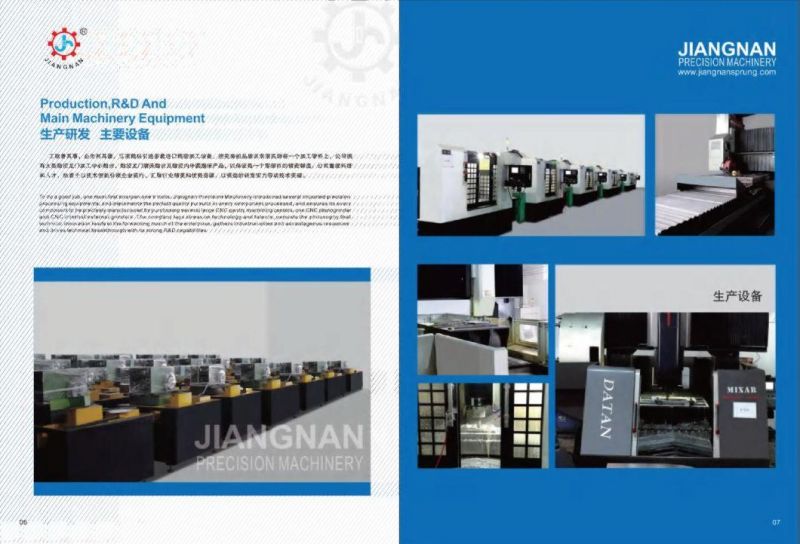

The company has advanced processing facilities involving several large CNC gantry machining centers, one CNC planogrinderand CNC internal/external grinders.

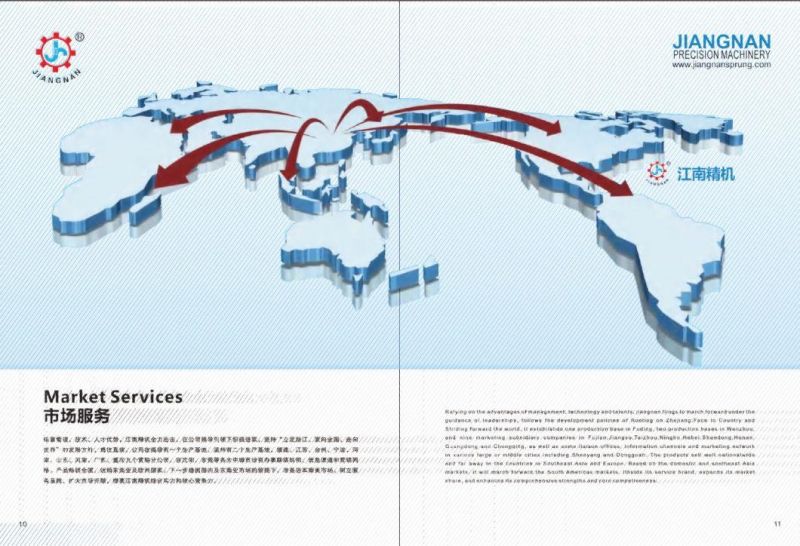

It established one production base in Fueling, two production bases In Wenzhou, and ninemarketlng subsidiary companies in Fujian, Jiangsu. Taizhou, Ningbo, Hebei, Shandong, Henan,Guangdong,and Chongqing as well as some liaison offices,information channels and marketing network in various large or middle cities including Shenyang and Dongguan.The products sell well nationalwide and far away to the countries in Southeast Asia and Europe.Rooted on the domestic and southeast Asia markets, it will march farward the South Americas markets.
In order to suit the economic and development needs of the market, create a first-class enterprise and fulfill social responsibilities^ the company has put into use the Jiangnan sub-factory in Fuding and fully initiates second-stage development, strives to enable the company to be leaped steadily, rapidly and healthfully Into a share-holding group.
