High Speed Steel Bar Straightening and Cutting Machine 80m Per Miniute
Henan Yugong Machinery Co., Ltd.- Type：Balance Roller Straightening Machine
- Usage：Bar
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Large Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：YGT4-14 YGT5-16
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Product Name：Steel Bar Straightening and Cutting Machine
- Application：Rebar Straightening and Cutting
- Model：Ygt 5-16
- Diameter Adjustment Range：5-16mm
- Wire Pulling Speed：50m,Min
- Traction Motor Power：2.2kw-6
- Modulation Motor Power：15kw-4
- Cut off Motor Power：5.5kw-4
- Cutting Error：2-5mm
- Cutting Speed：80m,Min
- Transport Package：Standard Wooden Case
- Specification：Electric
- Trademark：YUGONG
- Origin：China
- HS Code：8461500090
- Production Capacity：1000 Sets , Month
Description
Steel Bar Straightening and Cutting Machine
Model
YGT 4-14
YGT 5-16
Diameter adjustment range
4-14mm ( III grade steel)
5-16mm ( III grade steel)
Wire pulling speed
50m/min
50m/min
Voltage
380V three-phase 50Hz
380V three-phase 50Hz
Traction motor power
2.2kw-6
2.2kw-6
Modulation motor power
7.5kw-4
15kw-4
Cut off motor power
5.5kw
5.5kw-4
Cutting error
±0.5-1cm
±0.5-1cm
Wire Length
800-9000mm (can be lengthened)
800-9000mm (can be lengthened)
Straightening degree
±2 mm/m
±2 mm/m
Weight
1500kg
1500kg
Size
2800*650*1200mm
3300*650*1300mm

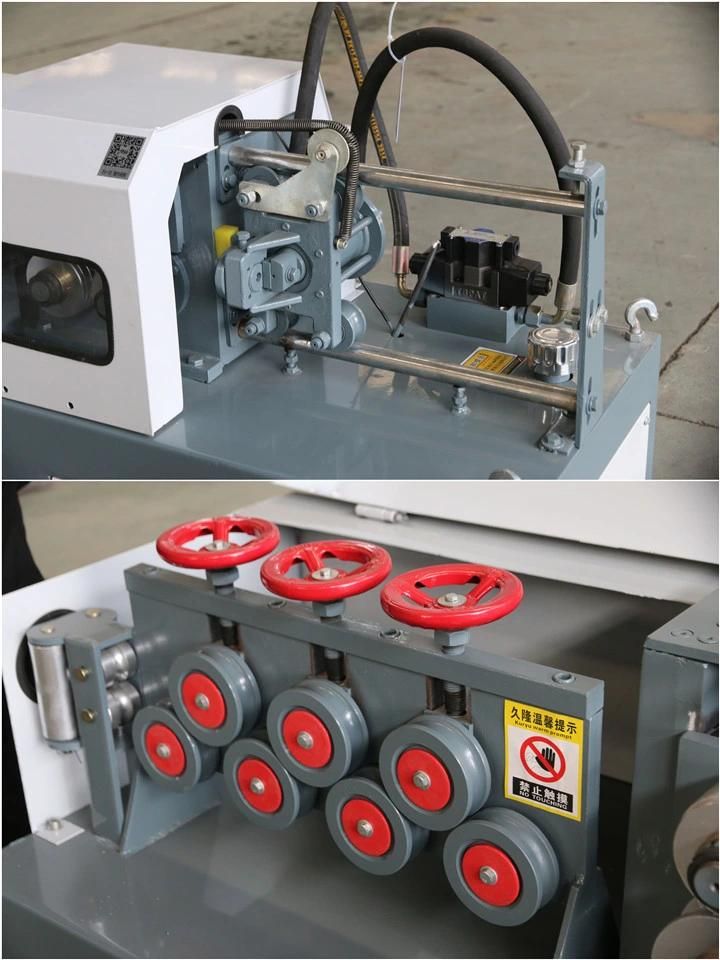

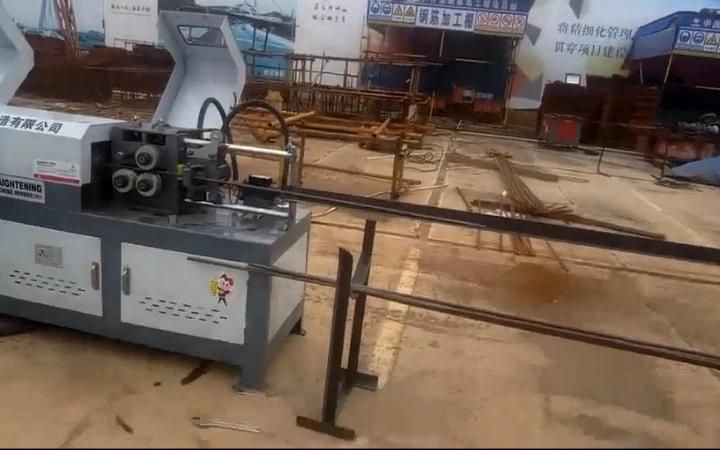

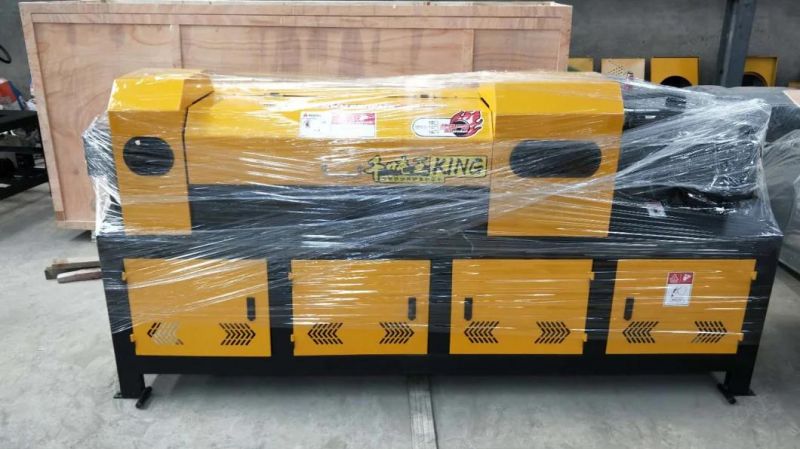

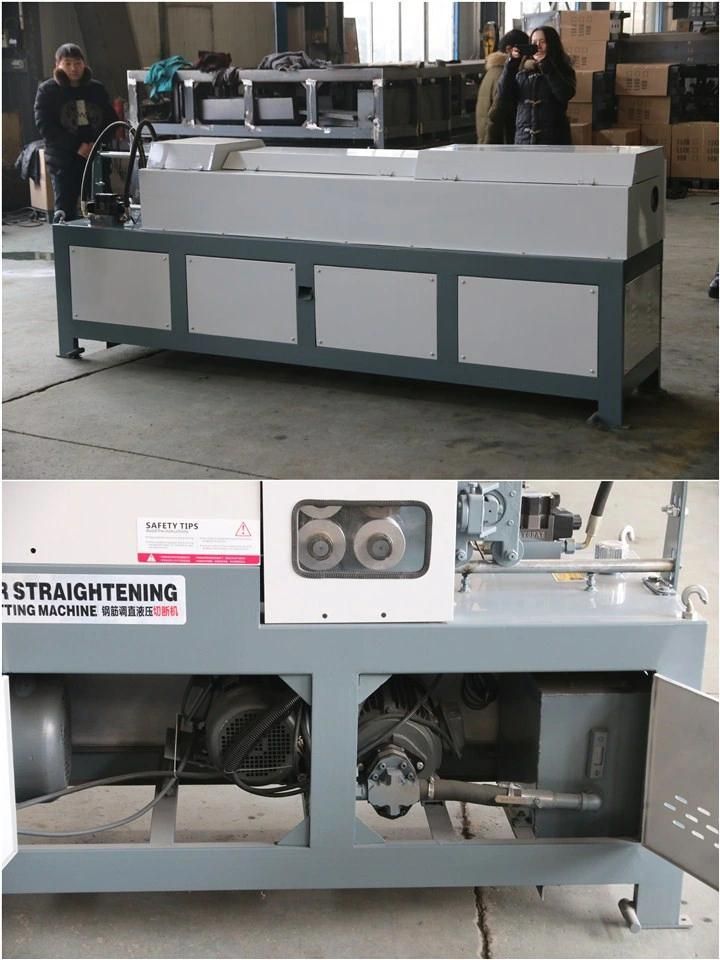

Product Display
- Microcomputer control, automatic straightening, automatic length, automatically cut off;
- "Fool" type of operation, who can use it that understand the "123" ;
- Multiple batches simultaneously enter the length and number of computer memory;
- Hydraulic cut, more accurate, more quiet;
Working
Steel Straightening Cutter machine is one of the steel processing machines, for straightening and cutting off the diameter of 4-16mm for the steel, and rust. By the straightening cylinder, holding the body, cut off institutions, reinforced fixed frame, rack and drive components.

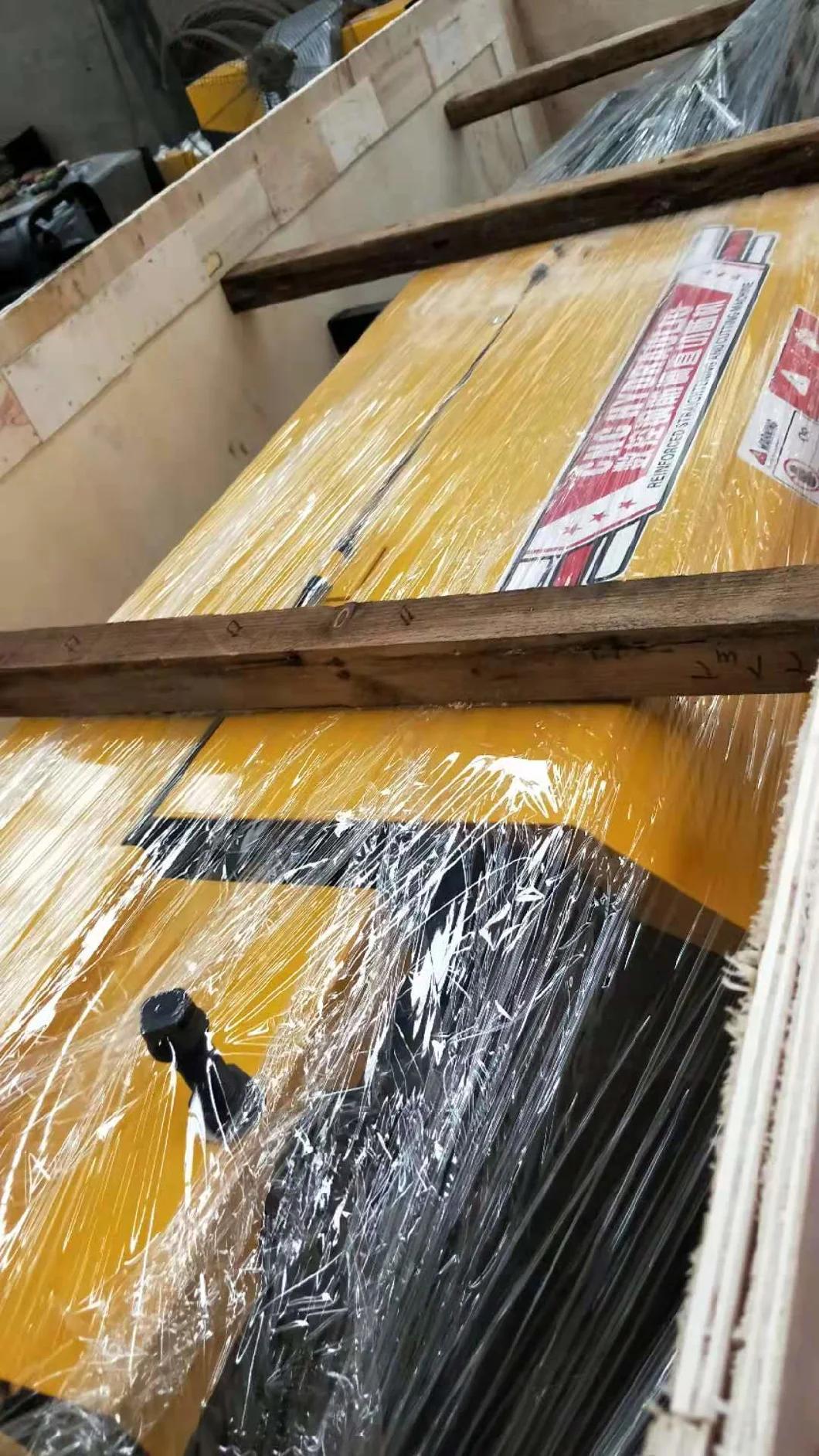

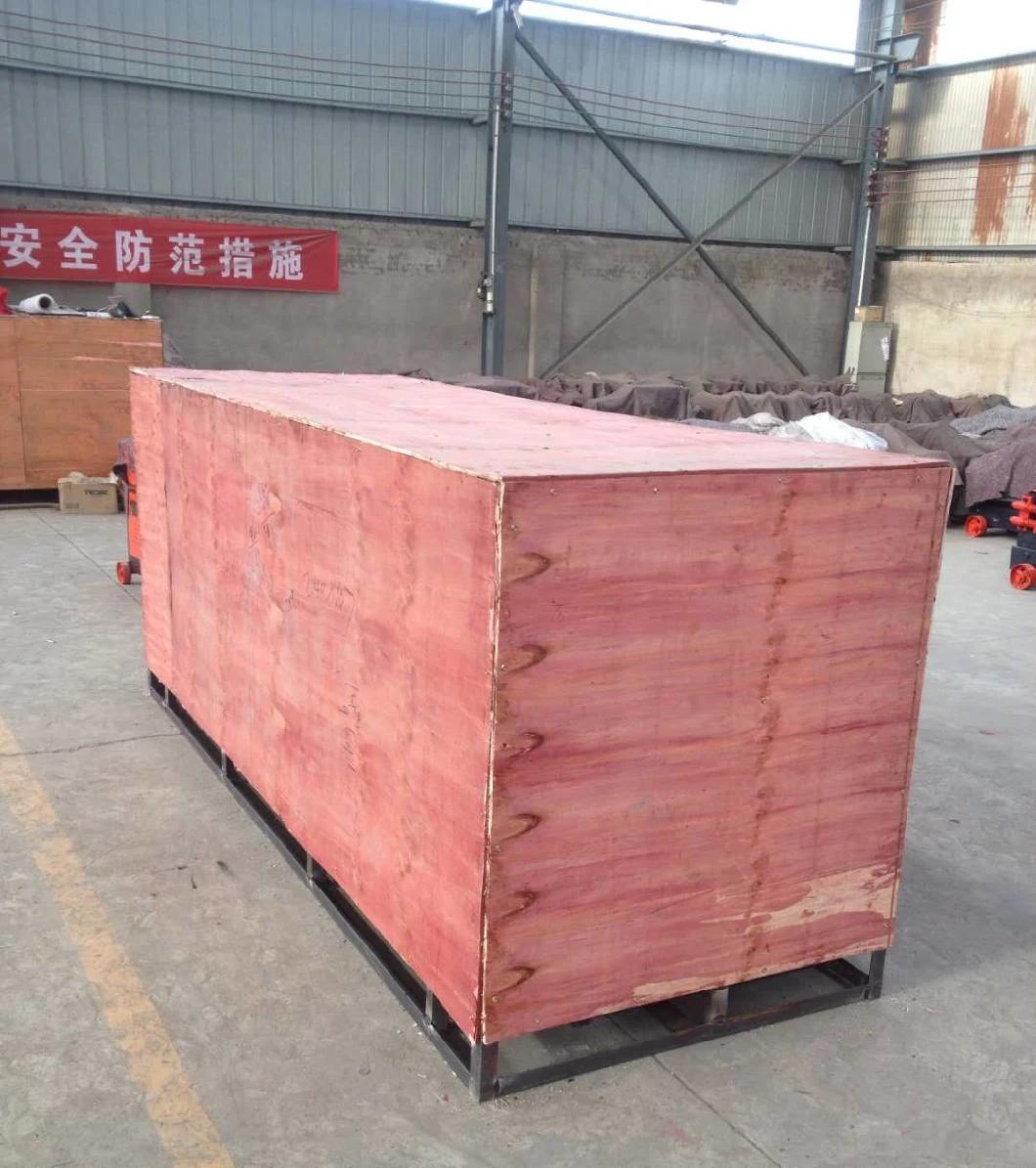

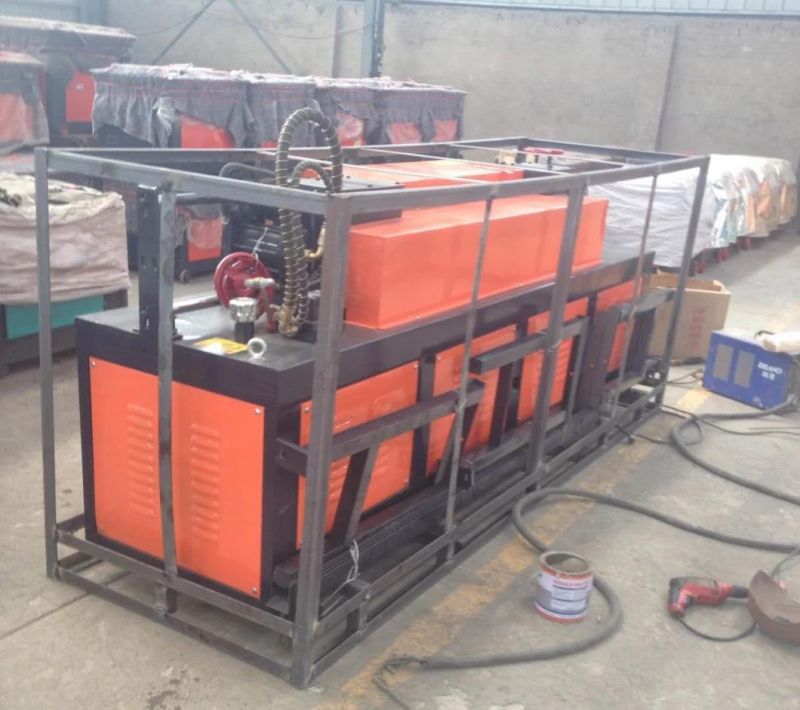

Packing
