Lh-550t Aluminum/Brass Metal Brass Die Casting Machine Aluminum Injection Molding Machine
Bengbu Long Hua Die Casting Machine Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Control Type：PLC
- Customized：Non-Customized
- Condition：New
- Automatic Grade：Automatic
Base Info
- Model NO.：550T
- Certification：CE
- Type：Casting Machine
- Transport Package：Plastic Package
- Specification：7.7*2.2*3.1
- Trademark：Longhua
- Origin：Anhui, China(Mainland)
- Production Capacity：30set,Sets Per Month
Description
The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.
Specification of LH550 ton Cold Chamber Die Casting Machine Aluminium:
Specification | Unit | LH-550T |
Hydraulic working pressure | Mpa | 14 |
| Clamping force | KN | 5500 |
| Space between tie bars | mm | 760*760 |
| Tie bar diameter | mm | 140 |
| Die Opening stroke | mm | 580 |
| Injection force(Intensify) | Mpa | 480 |
| Plunger Launch distance | mm | 250 |
| Injection Position | mm | 0-220 |
| Plunger diameter | mm | 70-90 |
| Injection stroke | mm | 580 |
| Casting pressure (intensify) | Mpa | 124/95/75 |
| Casting fiange protrusion | mm | 15 |
| Casting fiange diameter | mm | 165 |
| Max casting area under 40Mpa | cm2 | 1250 |
| Injection weight (Al) | KG | 7.1 |
| Die height (Min-Max) | mm | 300-800 |
| ejector force | KN | 240 |
| ejector stroke | mm | 140 |
| Motor capacity | KW | 22 |
| Machine dimensions (L*W*H) | M | 7.7*2.2*3.1 |
| Oil tank capacity | L | 1200 |
| Referential machine weight foruplifting | T | 22 |
P.s.:
We reserve the right to make any technical improvement without further notice

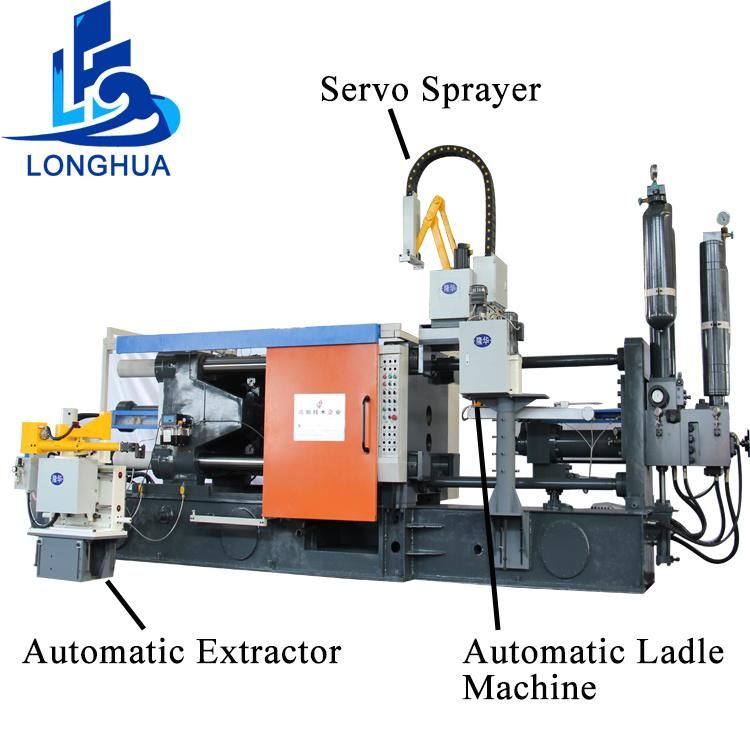

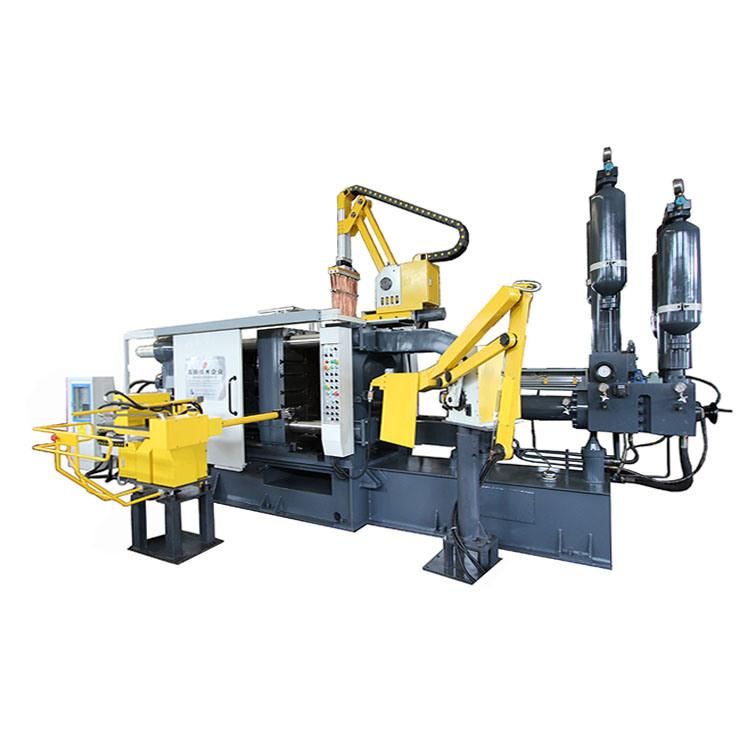

LH-550T cold chamber die casting machine
1. Easy to handle
- Completely automatic process cycle and analysis function
- Permanent process monitoring via sensors
- Extensive security installations
2.Excellent performance
- High efficiency and reduced scrap
- High quality casting of complex and large parts
- Extremely stable value of the machine
- Multi-shift operation possible
3.Flexible
- Small or large casting clusters
- Non-ferrous metals including zinc, aluminium, bronze and brass alloys
- Moulding chamber easily adaptable for shell-, sand- and block moulds.

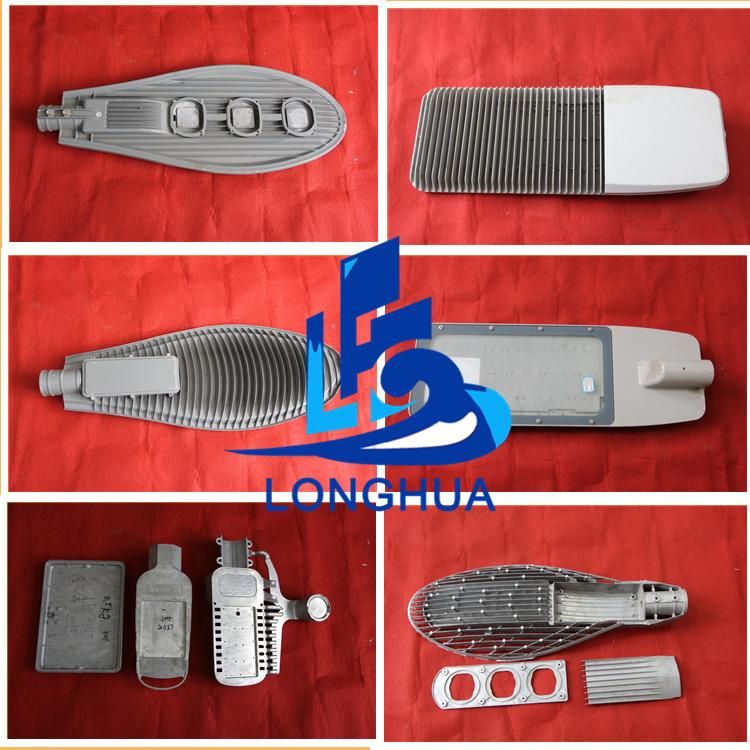

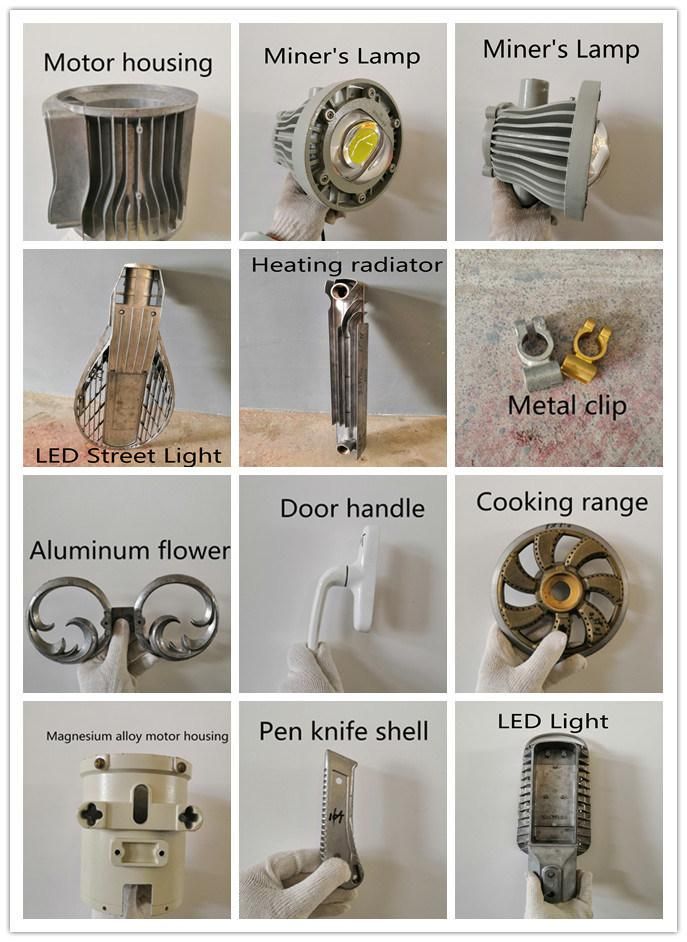

die castings by our machine
