6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine

Dongguan Hua Yi Da Spring Machinery Co., Ltd.
  • Automatic Grade：Automatic
  • Warranty：1 Year
  • Certification：GS, RoHS, ISO, CE
  • Model：Hyd-60t-12A
  • Axis Count：12 Axes
  • Wire Diameter：2.0-6.0mm

Base Info

  • Model NO.：HYD-60T-12A
  • Wire Feeding Count：4 Pairs
  • Max Feeding Speed：80m,Min
  • Reducer：11 PCS
  • Machine Size：2600*1400*2050mm
  • Machine Weight：4500kg
  • Transport Package：Standard Wooden Box
  • Specification：2600*1400*2050mm
  • Trademark：HYD
  • Origin：Dongguan, Guangdong, China
  • HS Code：84633000
  • Production Capacity：300 PCS,Years

Description


HYD-60T-12A Cam-less Spring Machine Specifications


Wire Size Range
     low carbon steel:3-8mm   high-carbon steel:2-6mm
Lead rail
                       distance of 130mm
Wire feeding count
                 4 pairs
Max Feeding speed
                 80m/min
Maximum error
               ±0.1(length)

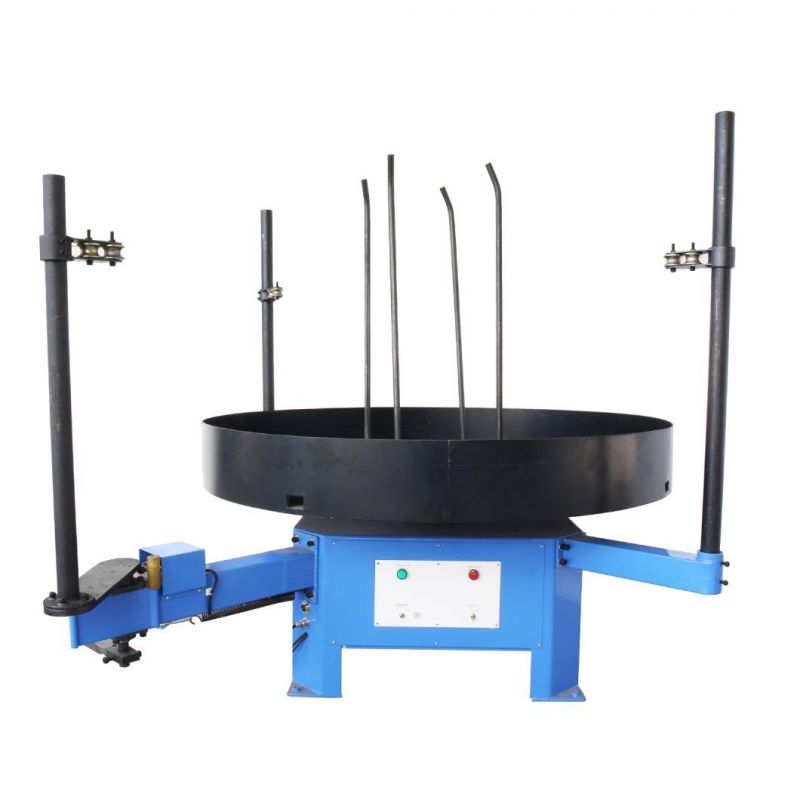

Control system+decoiler
       1 set
Servo motor power
              49.7KW
Reducer
                            11pcs
Minimum length of angel
                4 times wire diameter
Machine  size
 2600*1400*2050mm
Machine  weight
                  4500KG

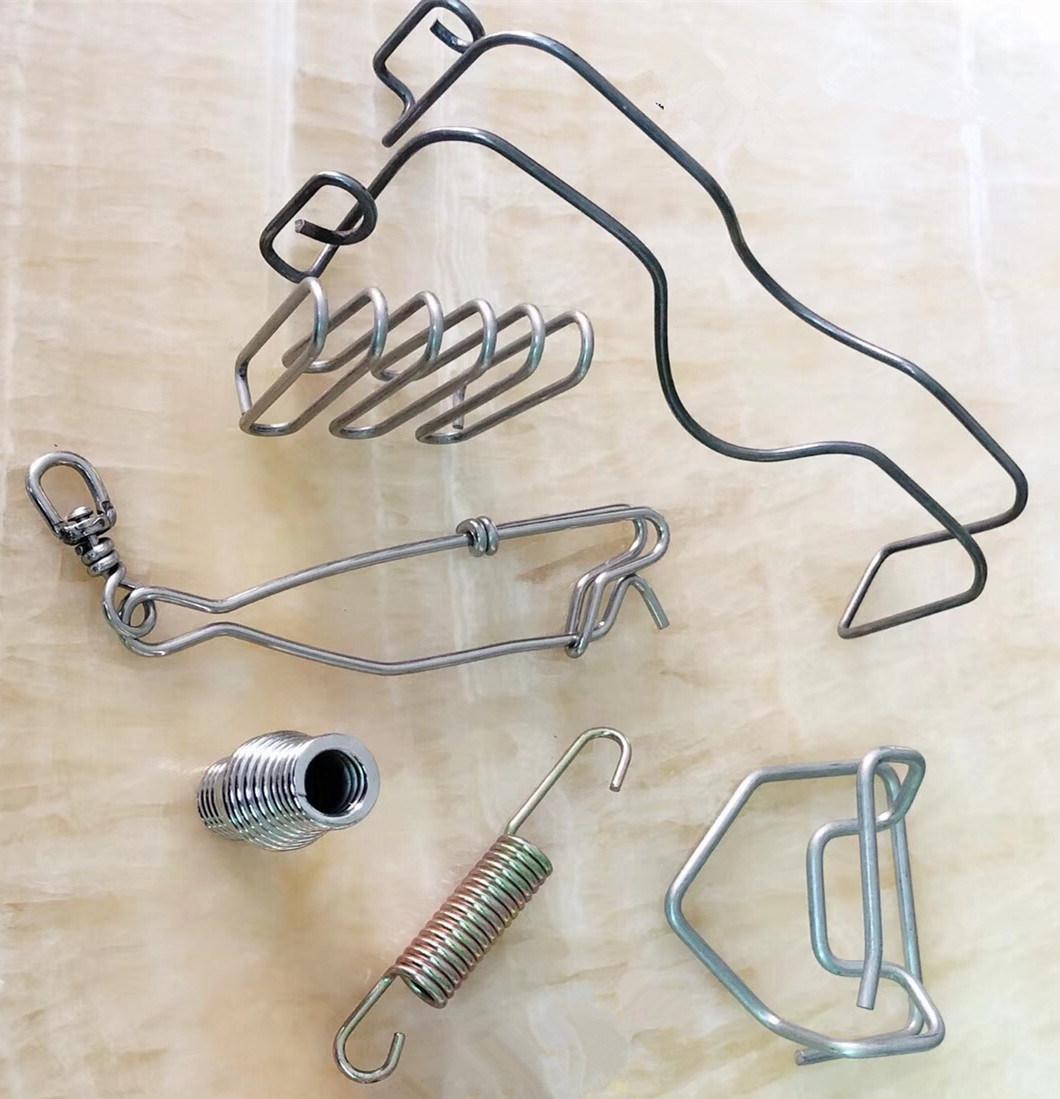

Product Sample
6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine

Machine Shipment
6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine
6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine
6.0mm Versatile Automatic Cam-Less Vesatile Wire Rotary Spring Machine
FAQ
1. Q: What information will be helping to get an accurate quotation from us?
  A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

2. Q: What is the power supply of the machine?
  A:  The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

4. Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.

6.How to contact HYD?
  A:Cel/:+86 14778279155
