Stainless Steel Cold Rolling Mill/ Partial 8hi Steel Rolling Mill/20hi Steel Rolling Mill
Hebei Moran Environmental Protection Technology Corp.- Type:Balance Roller Straightening Machine
- Usage:Sheet
- Voltage:220V
- Automatic Grade:Automatic
- Principle:Large Deformation
- Certification:SGS
Base Info
- Model NO.:Stainless steel cold rolling mill
- Warranty:12 Months
- Customized:Customized
- Condition:New
- Highest Speed:480m,Min
- Maximum Drawing Tension:15 Tons
- Width:650-1450mm
- Application:Plain Carbon Steel, Stainless Steel
- Diameter of Its S Roll:No Less Than 800mm
- Transport Package:Plastic Film, Plywood Box or as Required
- Specification:400M,min
- Trademark:Moran or customized
- Origin:China
- HS Code:8462211000
- Production Capacity:5 Sets
Description
Basic Info.
Model NO. Stainless steel cold rolling mill Warranty 12 Months Customized Customized Condition New Highest Speed 480m/Min Maximum Drawing Tension 15 Tons Width 650-1450mm Application Plain Carbon Steel, Stainless Steel Diameter of Its S Roll No Less Than 800mm Transport Package Plastic Film, Plywood Box or as Required Specification 400M/min Trademark Moran or customized Origin China HS Code 8462211000 Production Capacity 5 SetsProduct Description
Stainless Steel Cold Rolling Mill/ Partial 8hi steel rolling mill/ 20hi steel rolling Mill- Brief Introduction
2. Overview

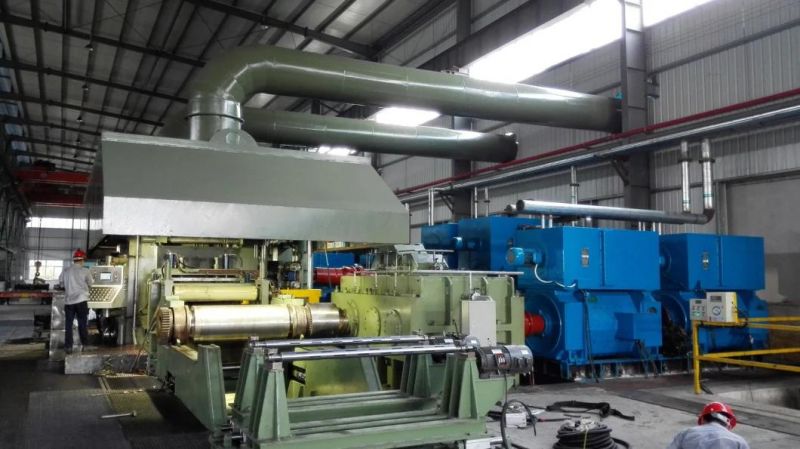

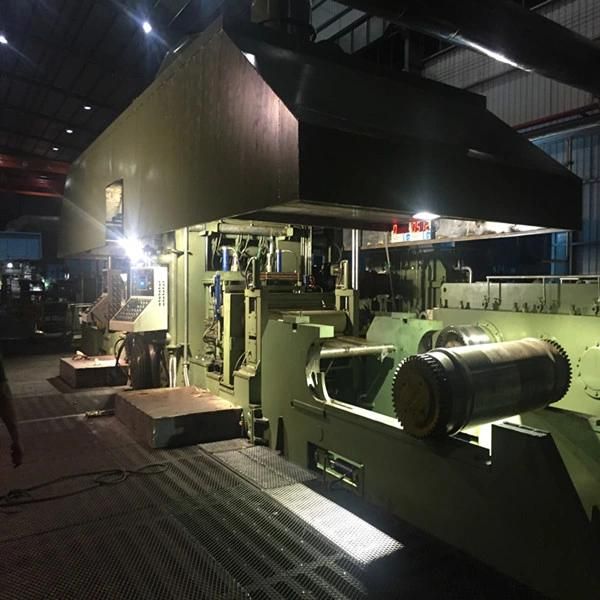

The production of this unit is to roll picked stainless steel coils with the thickness of 1.5~3.5mm into high precision cold rolled coils with the thickness of 0.3~1.0mm through several time of rolling. It adopts single-stand MKW reversible cold rolling mill, The large tension coiler and thickness gauge etc, which can realize large tension rolling and guarantee high-speed and stable production with specified thinness.3. Technical data of the stainless steel Mill
No | Specification | Data |
1 | Specification of Rolling Mill | F160/F145/F260/F1050´1450 mm |
2 | Drive Mode | Support Roll drive |
3 | Max Rolling Pressure | 12000KN |
4 | Max Rolling Speed | 360m/min-220m/min(high gear/low gear) |
5 | Max coiling tension | 300KN-460KN(high gear/low gear) |
6 | Max coiling speed | 380m/min |
7 | Work roll size | F160×1450 mm |
8 | Intermediate roll size | F145×1450 mm |
9 | Back roll size | F1050×1400 mm |
10 | Backing bearing | F260 mm |
11 | Solid core diameter of mandrel of coiling machine | F600 mm |
12 | Rolling line elevation | +1000 mm |
13 | Housing section | 50cm×60cm=3000 cm2 |
14 | Working pressure of hydraulic system | General hydraulic transmission: 10 Mpa Press-down system pressure: 21 Mpa |
15 | Unit mechanical equipment electrical installation capacity | DC:1250*2KW+900*4KW =6100KW AC: ≈300 KW |
16 | Maximum Lifting component weight | ≈15 t(supporting roll device) |
17 | maximum installation part weight | ≈30 t( housing section) |
18 | Unit dimensions | ≈22x20x6 m |
Material quality | 400 series stainless steel |
Mechanical Properties | σs≤400 N/mm2 |
Thickness | 1.5~3.5mm |
Width | 900-1300mm |
Rolling diameter(interior /exterior) | Φ600/(Φ2000)mm |
The maximum rolling weight | 25t |
Thickness | 0.3-1.0mm |
Width | 900-1300mm |
Rolling diameter(interior/exterior) | Φ600/(Φ2000)mm |
The maximum rolling weight | 25t |
- The main rolling mill and coiler drive system adopts Siemens 6RA80 full digital DC speed regulation, thyristor power supply and unit PLC control.
- The basic automation system of the unit is composed of Siemens S7-400 series PLC as the main controller, which is combined with the corresponding remote I/O (ET-200M) to control the operation of the rolling line and auxiliary equipment.
- The AGC is an automated thickness control system with FM458 function modules. Full hydraulic pressure. It has constant roll gap control, constant rolling force control, adjustment control, automatic prepressure control, thickness precontrol AGC, thickness monitoring AGC, tension / speed AGC, acceleration and deceleration AGC compensation control, roll eccentricity compensation and so on, as well as rolling process database, data display and operation control, product quality tracking function, high speed rolling Process management functions such as automatic data recording, automatic report generation, fault alarm and recording.
- The upper and lower support rollers are separately driven to reduce the consistency of the roller diameter.
- The rolling mill electrical system has safety protection measures such as overload protection, broken belt protection and emergency stop; the unit has automatic deceleration with tail, accurate parking and multi-point parking function; the coiler has lap number memory, belt length calculation, and accurate support roller shaft GPS.
- The unit has functions of presetting process parameters, detecting process parameters and key parameters of equipment, displaying, alarming and storing records.
- The main operation console is equipped with man-machine interface, which completes the rolling mill status screen display (winding tension value, current value, speed value and other main process parameters) and manual adjustment, rolling process parameter setting, fault alarm and printing report.
- The gear adopts five grade precision 20CrMnMo alloy steel carburized quenching gear and oil injection cycle lubrication.
- Low-voltage hydraulic system components are well-known products produced by domestically introduced technologies; key components of high-pressure AGC systems use imported products.
No | Year | Clients | Production Line Specification |
1 | 2016 | Guangdong RX Industrial Investment Co., Ltd. | 1450mm partial 8 Hi stainless steel cold rolling mill |
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
For More information about the stainless steel cold rolling mill, Please offer the following information and feel free to contact us!
NO | Items | Specification requirements | Items | Specification requirements | Remarks |
1 | Metal grade of incoming material | Purpose of use | |||
2 | Thickness of incoming material | Thickness of finished products | |||
3 | Width of incoming material | Inner diameter of finished products | |||
4 | Inner diameter of incoming material | Outer diameter of finished product | |||
5 | Outer diameter of incoming material | Annual capacity | |||
6 | Incoming Coil weight | Max speed requirements |
Contact Person: Cindy Liu
