• Model NO.：TZJD-4040M
• Milling Cutter Diameter：6mm
• Feeding Height：200mm
• Certification：ISO9001, CE, SGS FDA BV
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Color：Blue White, Also as Demands
• Working Area：400mm*400mm*180mm
• Structure：Germany Ballscrew
• Machine Body：Cast Iron Whole Body
• Guide：Hiwin Square Linear Bearings
• Controller：Ncstudio
• Motor：Stepper
• Driver：Leadshine
• Inverter：Fulling
• Software：Original Type3 Artcam
• Transport Package：Fumigating Wooden Packaging
• Specification：CE FDS SGS ISO BV
• Trademark：TZJD
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：200 Sets,Month
• Package size per unit product：112.00cm * 112.00cm * 168.00cm
• Gross weight per unit product：350.000kg

Description
Parameter
TZJD-4040M
Working Area (X*Y*Zmm)
400mm*400mm*180mm
Max Engraving Speed
6000mm/min
Frame
Cast Steel
Spindle power(KW)
2.2KW/3KW/4.5KW/5.5KW constant torque spindle
Max. Power Consumption(Without spindle)
1.2KW
Spindle Speed
Maximum cutting thickness
Maximum operating speed
6000-24000rpm
30mm
10000mm/min
Resolution
0.005mm
Repeatability
0.01mm
Voltage
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor
Stepper(option:Servo motor)
Working Dictate
G Code*.u00*.mmg*.plt
Operating system
Nc-studio/DSP optional
Software environment
Windows98/2000/xp/7/8/10
Interface
USB
Flash memory
8GB(U Disk)
Software Compatability
Type3,,Ucancam,Artcam Software)
Diamerer of cutter
3.175mm, 6mm, 12.7mm, 2mm,1mm, etc.
Running Environemt
Temperature: 0ºC~45ºC
Relative humidity: 30%~75%
Machine necessary
Dust collector system,
spindle cover,
Japan Panasonic Servo motor(optional),
Auto-oiling system,
Tool-sensor,
water tank system,
water-cooled system,
spray mist cooling system.

2. Applicable materials:

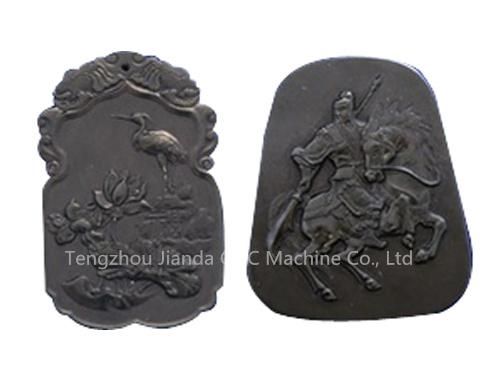

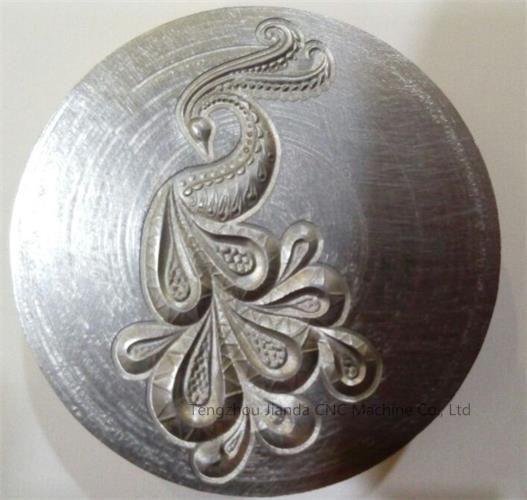

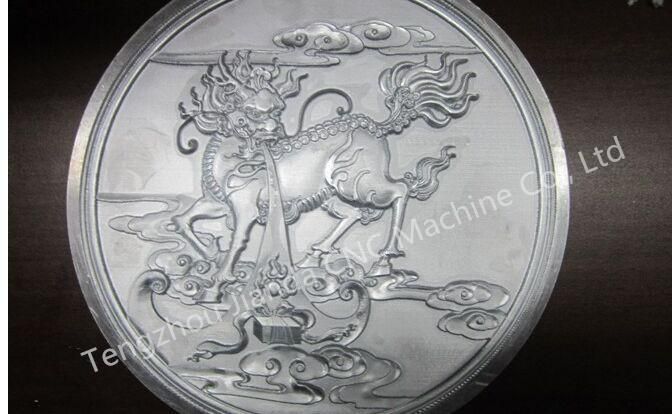

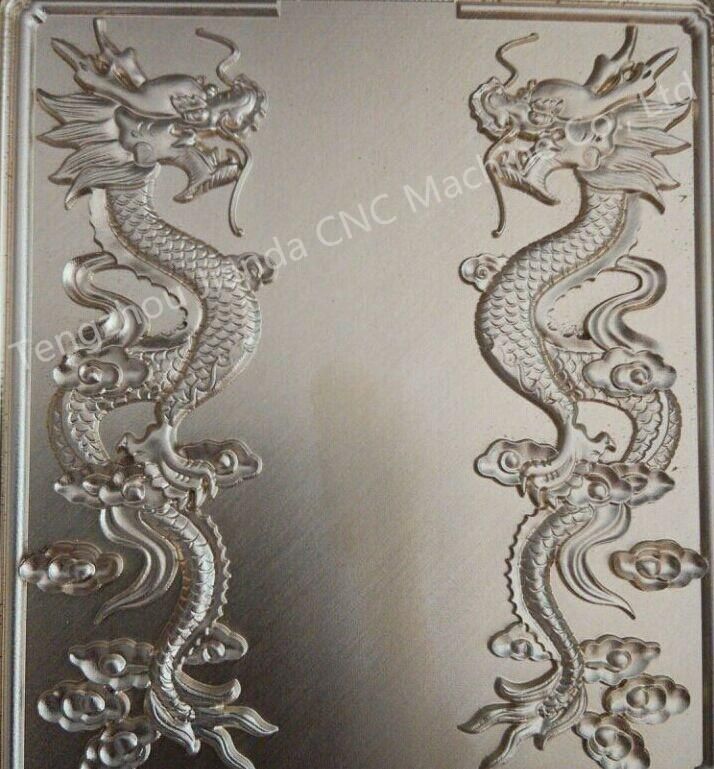

Jade,Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.







3. Product Features:
(1) Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
(2) The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
(3) Tool sensor system, save extra time to adjust the machine.
(4) Use high speed drive motor, also servo motors for optional.
(5) Memory function ensures the processing point when the blade is broken or having to postpone the process.
(6)With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.

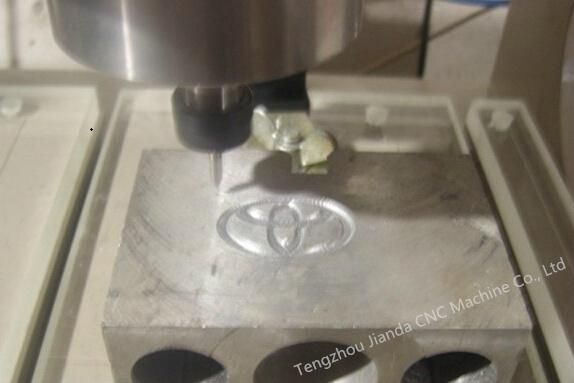

(7) This type machine can support these functions: drilling/milling, engraving/carving, cutting.
(8) Many gear speed regulation and control function & Curve and linear speed independent control.
9) Water tank system on the body & water-cooled system automatically.

4. Packages: Solid seaworthy wood box package with steel belt.

5. Guarantee and After-sales service:
(1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
(2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
(3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

6. Traning to use:
(1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
(2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

7. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

8. FAQ:
(1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

(2) How about the payment terms?
T/T, West Union, L/C

(3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

(4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

(5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

9. Contact information:
Mobile: +86-18615627569

10. Machine accessories:

Name	Specification	Quantity	Unit
NC-studio control software CD	In CD	1	piece
NC-studio control card		1	piece
Data wire		1	piece
Spanner	19-22	1	piece
Spanner	27-30	1	piece
Allenwrench		1	suit
Cutting tools (2mm, 3mm, 3.175mm, 4mm, 6mm, 8mm, 12.7mm.....etc these different size cutters. ER16 ER20 these size collets)		1	suit
Water pump	WP3550	1	piece
Power line	2*2.5	3	meters
Artcam/ Artcam software	In CD	1	suit
Type3/ Type3 software	In CD	1	suit
Water tank		1	piece
Brush	3#	1	piece
Emergency button		1	piece
Limit switch		3	piece
clamps		6	piece
User manual	In CD	1	piece
