• Model NO.：O12
• Transport Package：Wooden Case
• Specification：X
• Trademark：WATT
• Origin：China
• HS Code：84619090
• Production Capacity：200

Model

Working Range

Wall Thickness

RotatingMotor PowerOD mmSingle mmMulti mmrpmCuttingClamping kwUp/down kwFeeding kwOM1250-3254-25500-505.51.5 0.55  2.0OM18130-4505-25500-427.51.5 0.55  2.0OM24323-6105-25500-35111.5 1.5  2.0OM36610-9146-25500-25111.5 2.0  3.0

*Above parameters just for reference only, not acceptance criteria

Power requirement:380V,50-60Hz,3P
Up/down travel:200mm
 Feeding travel:100mm
 pipe length limit:300mm
 Tool post quantity.:2 or 4
 Angle deviation:±0.5
 Vertical deviation:±0.5mm @300mm pipe OD

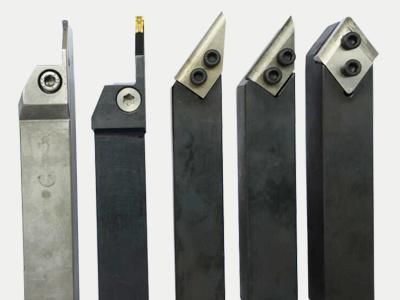

 TOOLING
 Insert Type
 Tool holder:40Cr
 Insert:Carbide
 kinds:Cut off,beveling,Double beveling,Compound beveling
 Angle:0°,30°,37.5°,double 30°/37.5°,37.5°+10°
