Spiral Flexible Aluminum Duct Making Machine (PAD-300 /ZHLF-300B)

BOBO Machine Co., Ltd.
  • Type：Spiral Duct Forming Machine
  • Diameter：80-500
  • Cooling Method：Direct Cooling
  • Transport Package：Wooden Package
  • Specification：GB
  • Trademark：BOBO

Base Info

  • Model NO.：PAD-300 series
  • Origin：China
  • HS Code：8455229090
  • Production Capacity：2 Sets,Month

Description

Basic Info.

Model NO. PAD-300 series Origin China HS Code 8455229090 Production Capacity 2 Sets/Month

Product Description

Aluminum flexible conduit making machine

Aluminum flexible duct foming machine

Flexible aluminum duct forming machine

Flexible ventilation duct machine

Spiral flexible duct making machine

This machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost.

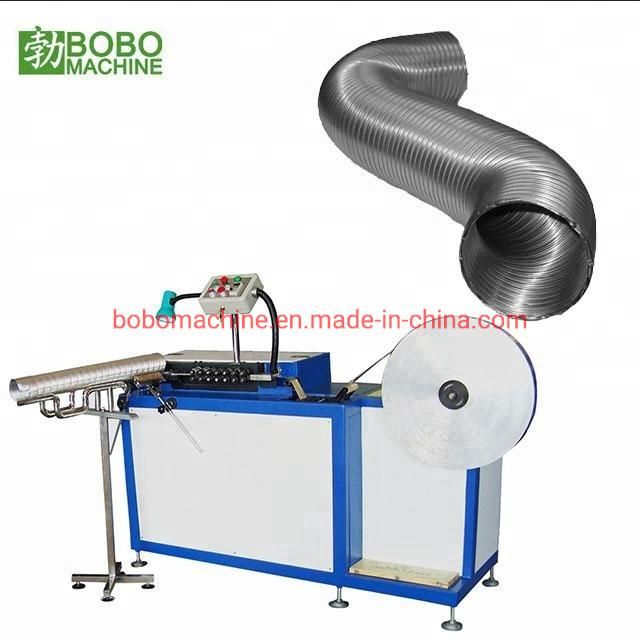

Spiral Flexible Aluminum Duct Making Machine (PAD-300 /ZHLF-300B)Spiral Flexible Aluminum Duct Making Machine (PAD-300 /ZHLF-300B)
Main technical data

Diameter: 80---500mm
Length: 100---4000mm
Material Thickness: 0.06---0.15mm(Aluminum foil strip)
Raw material width: 60mm
Compression ratio: 1: 3.5( means make the 3.5m tube to 1m)
Surface corrugation: 4-7 corrugation (as per your requirements)
Lock way: Double-decked tabby locking
Feeding speed: 0---46m/min
Electricity control: PLC
Refrigeration system: Emulsified liquid cooling
Electrical power: 380V, 3pH, 50Hz
Main motor power: 1.5kw
Power of Pump: 0.04kw
Power of cutting: 0.12kw
Diameter of raw material coil: 70-500mm
