- Model NO.：M-serise and R-serise
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Transport Package：Plywood
- Trademark：Huarui
- Origin：China
- Production Capacity：200PCS,Min
| Model | Max. Screw Dia. (mm) | Max. Screw length (mm) | Capacity
(pcs/min) | Motor
(kw) | Weight
(Ton) | Overall size (m) |
| ZM3-18A | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| ZM3-18B | 3 | 18 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| ZM3-28A | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| ZM3-28B | 3 | 28 | 160-180 | 0.75/0.37 | 0.6 | 1.3*0.75*0.9 |
| ZM4-28B | 4 | 28 | 120-160 | 1.5/0.37 | 0.97 | 1.5*0.9*0.9 |
| ZM4-28D | 4.5 | 28 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1*1.2 |
| ZM4-40B | 4 | 40 | 120-150 | 1.5/0.37 | 0.97 | 1.6*1*1.2 |
| ZM4-40D | 4.5 | 40 | 180-200 | 1.5/0.37 | 1.2 | 1.6*1.1*1.1 |
| ZM4-60D | 4 | 60 | 110-160 | 1.5/0.37 | 1.5 | 2*1*1.2 |
| ZM5-40B | 6 | 40 | 120-150 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
| ZM5-60B | 6 | 60 | 110-140 | 2.2/0.37 | 1.8 | 1.8*1.1*1.1 |
| ZM5-80B | 6 | 80 | 80-100 | 2.2/0.37 | 1.9 | 2*1.1*1.2 |
| ZM5-100B | 6 | 100 | 60-80 | 3/0.18 | 2.1 | 2.4*1.2*1.2 |
| ZM5-120B | 6 | 120 | 50-70 | 3/0.37 | 2.3 | 2.8*1.3*1.3 |
| ZM6-60B | 8 | 60 | 80-110 | 4/0.37 | 2.8 | 2.3*1.3*1.3 |
| ZM6-100B | 8 | 100 | 60-90 | 4/0.37 | 2.7 | 2.3*1.3*1.3 |
| ZM6-120B | 8 | 120 | 60-70 | 4/0.37 | 3 | 2.4*1.3*1.4 |
| ZM6-170B | 8 | 170 | 40-70 | 4/0.37 | 3.7 | 3*1.3*1.5 |
| ZM6-200B | 8 | 200 | 40-55 | 4/0.37 | 3.7 | 3*1.3*1.5 |
| ZM6-320C | 8 | 320 | 25-30 | 7.5/0.37 | 4.5 | 5.2*1.8*2.1 |
| ZM8-90B | 10 | 90 | 70-90 | 5.5/0.37 | 4.2 | 3.4*1.5*1.5 |
| ZM8-90C | 10 | 90 | 70-90 | 5.5/0.37 | 4.2 | 3.4*1.5*1.5 |
| ZM8-130B | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.5*1.5 |
| ZM8-130C | 10 | 130 | 50-90 | 5.5/0.37 | 4.6 | 3.4*1.5*1.5 |
| ZM8-150C | 10 | 150 | 40-50 | 5.5/0.37 | 5 | 3.5*1.7*1.7 |
| ZM8-200B | 10 | 200 | 25-60 | 7.5/0.37 | 6 | 3.8*1.6*1.7 |
| ZM10-120B | 12 | 120 | 40-70 | 11/0.75 | 7 | 3.3*1.71.7 |
| ZM10-170C | 12 | 170 | 40-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
| ZM10-220C | 12 | 220 | 35-60 | 11/0.75 | 7.5 | 4.2*1.81.7 |
| ZM10-250C | 12 | 250 | 30-45 | 11/0.75 | 8.5 | 5*1.8*1.7 |
| ZM10-300C | 12 | 300 | 25-35 | 15/0.75 | 9 | 5*1.9*2.1 |
| ZM10-360C | 12 | 360 | 20-30 | 15/0.75 | 12 | 6.7*2*2.6 |
| ZM12-150C | 14 | 150 | 40-50 | 15/0.75 | 10 | 3.9*1.9*1.8 |
| ZM12-250C | 14 | 250 | 35-50 | 15/0.75 | 11 | 5.3*2.2*1.9 |
| ZM14-150C | 16 | 150 | 40-50 | 11/0.75 | 10 | 4.5*2.2*2.15 |
| ZM14-250C | 16 | 250 | 35-45 | 15/0.75 | 11 | 5*2.2*2.15 |
| ZM16-160C | 18 | 160 | 45 | 18.5 | 15 | 4.2*2.6*1.8 |
| Model | Max. Screw Dia (mm) | Max. Screw length (mm) | Motor (kw) | Capacity (pcs/min) | Weight (Ton) | Overall size (m) |
| HR3-20A | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| HR3-20B | M2.6 | 20 | 1.1 | 350 | 0.3 | 1.1*0.53*1.2 |
| HR4-25A | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| HR4-25B | M4 | 25 | 1.5 | 320 | 0.45 | 1.3*0.63*1.32 |
| HR4-40A | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| HR4-40B | M4 | 40 | 2.2/0.37 | 280 | 0.97 | 1.5*1.15*1.35 |
| HR5-55A | M5 | 55 | 3+0.37 | 170 | 1.2 | 1.6*1.35*1.7 |
| HR5-55B | M5 | 55 | 3+0.37 | 170 | 1.2 | 1.6*1.35*1.7 |
| HR5-65A | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| HR5-65B | M5 | 65 | 3+0.37 | 130 | 1.3 | 1.75*1.4*1.65 |
| HR6-60A | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| HR6-60B | M6 | 60 | 4/0.37 | 180 | 1.5 | 1.7*1.65*1.3 |
| HR6-100B | M6 | 100 | 5.5+0.37 | 110 | 1.9 | 2.7*1.3*1.3 |
| HR8-80B | M8 | 80 | 5.5/0.37 | 110 | 1.8 | 2.1*1.55*1.3 |
| HR8-100B | M8 | 100 | 7.5+0.37 | 100 | 2.1 | 2.7*1.7*1.3 |
| HR8-120B | M8 | 120 | 5.5 | 100 | 2.1 | 2.4*1.8*1.4 |
| HR10-120B | M10 | 120 | 7.5 | 80 | 1.8 | 2.35*1.95*1.4 |
| HR12-120B | M12 | 120 | 11 | 60 | 3 | 2.45*2*1.45 |
| HR12-160B | M12 | 160 | 13 | 60 | 3 | 2.45*2*1.45 |
| HR12-220B | M12 | 220 | 15 | 50 | 3.5 | 2.5*2*1.45 |
| HR16-120B | M16 | 120 | 15 | 50 | 3.8 | 2.5*2.1*1.45 |
| HR16-160B | M16 | 160 | 15 | 50 | 4 | 2.5*2.1*1.45 |
| HR16-220B | M16 | 220 | 15 | 45 | 4.8 | 3.7*1.9*1.7 |
3. Automatic nuts making machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
| No. | Model | | HR11B6S | HR14B6S | HR17B6S | HR19B6S | HR24B6S |
| 1 | Dies | | 6 | 6 | 6 | 6 | 6 |
| 2 | Forging Power | Ton | 60 | 95 | 120 | 150 | 250 |
| 3 | Cut-off Dia.(max) | mm | 11 | 16 | 18 | 20 | 24 |
| 4 | Cut-off Length | mm | 7 | 11 | 13 | 20 | 30 |
| 5 | Making Size | DIN | M6 | M8 | M10 | M12 | M16 |
| 6 | Output | Pcs/Min | 260 | 180 | 160 | 130
(adjustable) | 110
(adjustable) |
| 7 | Slide Ram | mm | 50 | 70 | 80 | 100 | 110 |
| 8 | Kick-out Length(max) | mm | 11 | 18 | 20 | 30 | 35 |
| 9 | Dies Pitch | mm | 50 | 60 | 70 | 80 | 100 |
| 10 | Main Motor | Kw | 11 | 15 | 22 | 37 | 45Kw |
| 11 | Lubricant Motor | Kw | 1.5 | 1.5 | 3 | 3 | 3 |
| 12 | Lubricant oil | Litre | 540 | 720 | 900 | 1080 | 1440 |
| 13 | Weight | Ton | 4 | 8 | 10 | 15 | 25 |
| 14 | Dimention | M | 2.15*1.55*1.06 | 2.8*2.05*1.3 | 3.67*2.05*1.4 | 4.0*2.45*1.45 | 5.0*3.0*1.7 |

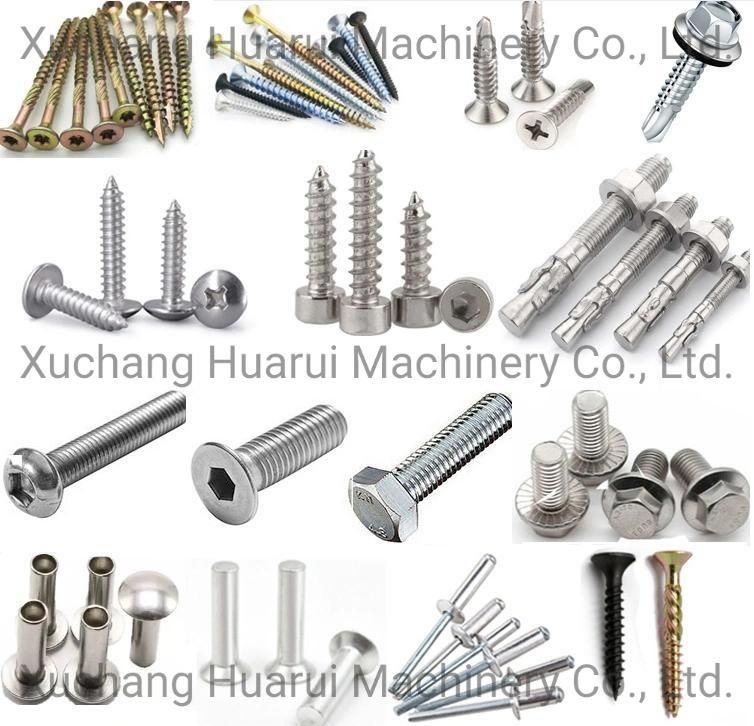

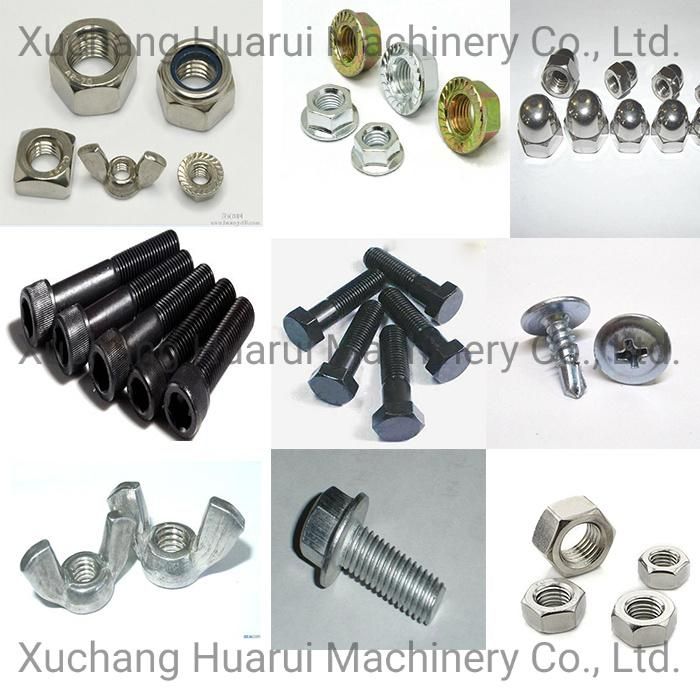

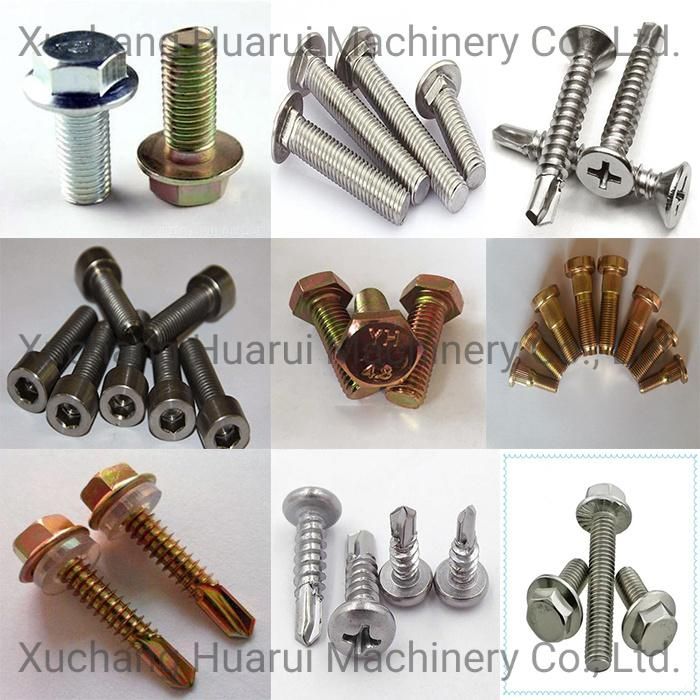

Photos of finished screws, bolts and nuts

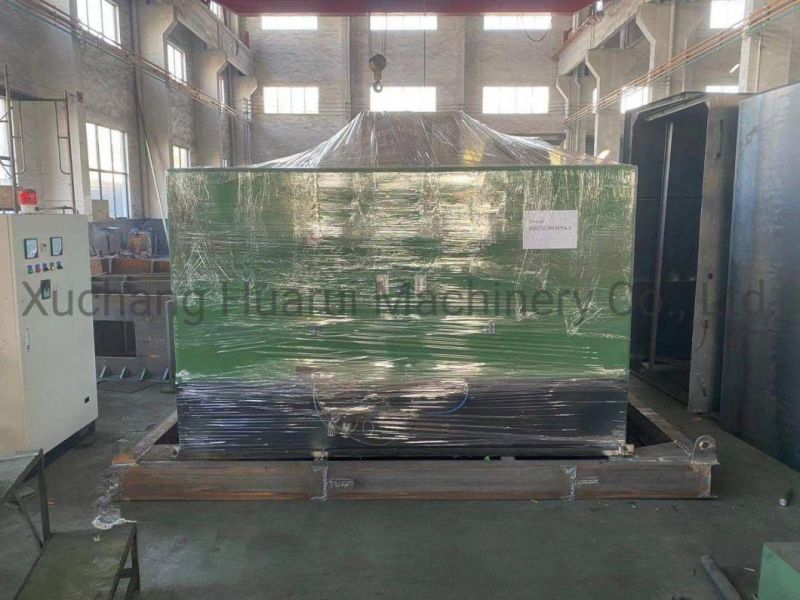

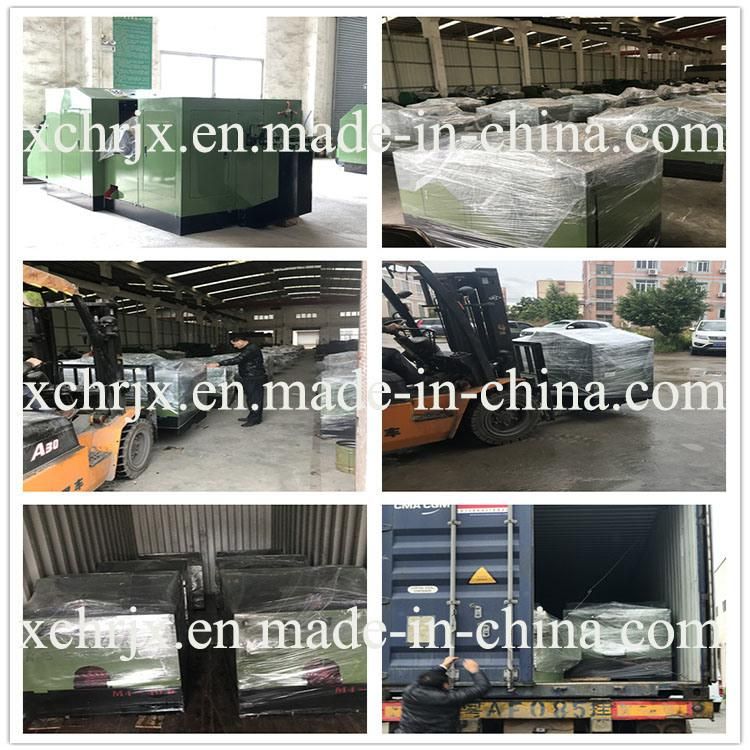

Loading photos
Photos taken with customers
Q&A
1. Make response to customer's inquiry or requirement within 24 hours.
2. Assist customer to select the most suitable machine and give them our professional suggestion.
3. Produce machine by our experienced team according to customer requirement.
4. Provide customer operation manual or video for machine to help them operate machine more efficiently.
5. Provide customer layout of workshop with machine to help them install machine.
6. Assign engineer to assist customer to install machine.
7. Offer 2 year guarantee for our machines.
