Drywall&Ceiling Profiles Width&Height Automatic Adjustable Roll Forming Machine with Automatic Packing Machine
Tianjin Longlong Metal Products Factory- Warranty：One Year
- Width：Full-Automatic Adjustable, Don′t Change Rollers
Base Info
- Model NO.：LL-LM16-55
- Height：Full-Automatic Adjustable, Don′t Change Rollers
- Automatic Grade：Full-Automatic
- Operation：1woker
- Production Speed：40~70m,Min, Customized
- Shape：Uw,Cw,Ud,Cu
- Transport Package：Main Machine Bulk and Spare Parts by Wooden Box
- Specification：Light Steel Series
- Trademark：LONGLONG
- Origin：Tianjin China
- HS Code：84552210
- Production Capacity：50sets,Month
- Package size per unit product：800.00cm * 150.00cm * 150.00cm
- Gross weight per unit product：3500.000kg
Description
Main components list -- Whole LineNo. Item Unit Qty 1 Decoiler Set 1 2 Roll rolling machine Set 1 3 Servo tracking cutting or cut off under stop Set 1 4 Collecting rack or Automatic packer Set 1 Detailed Description Name No. Item Parameters
Decoiler1 Roll material Galvanized steel sheet,Cold rolled steel sheet 2 Roll width Max 800mm, 3 Length tolerance ±1mm 4 Uncoiling Tension adjustable,unpowered 5 Load weight 3Ton Forming machine 1 Motor power About 7.5KW AC 2 Frame structure Overall welding structure 3 Forming step About 8~14steps 4 Dia. of shaft ¢40~50mm 5 Shaft 45#,220-250HB thermal refining 6 Driving method Gear drive 7 Speed About 50m/min 8 roller Cr12, HR58-62 Cutting device 1 Cutting Type Servo tracking 45 degree Bevell cutting 2 Power About 4KW, Hydraulic Electric control 1 PLC Delta Collecting rack 1 Length About 3m, asyour neeed
Sample Photo

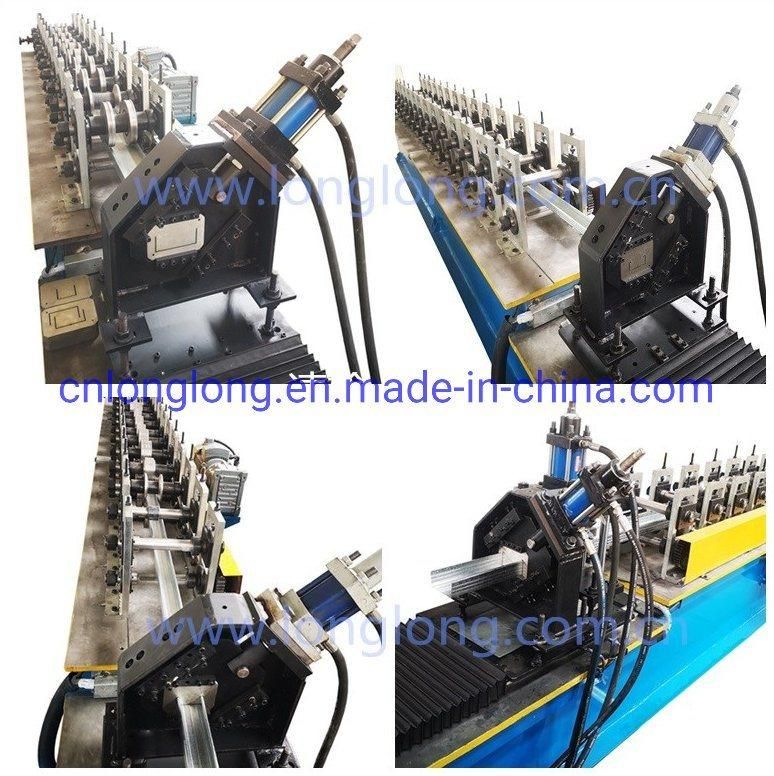

1.Main machine:

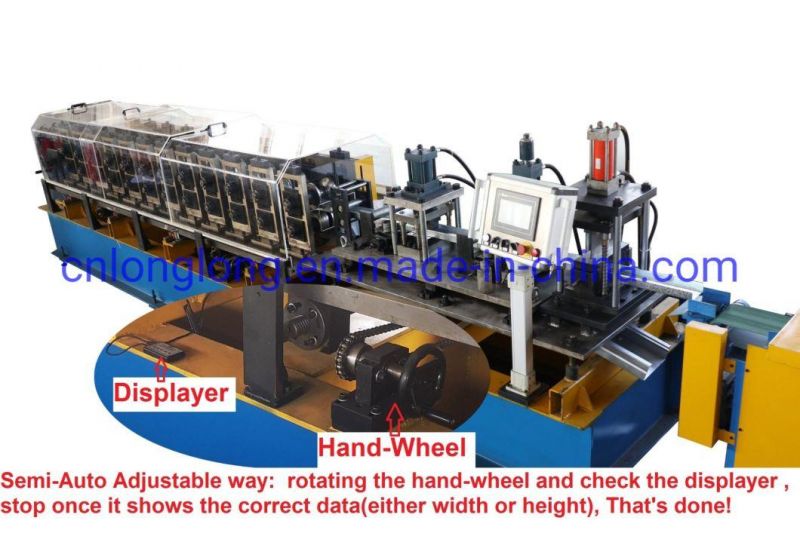

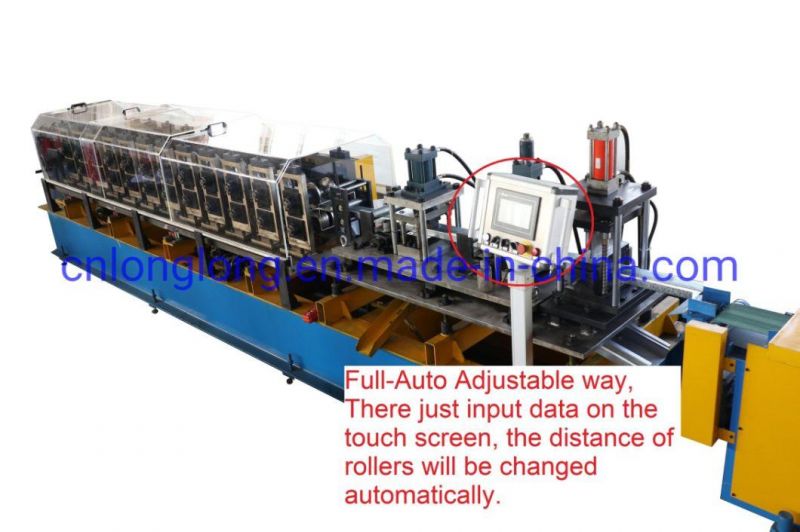

2.Width and Height Adjustbale way:

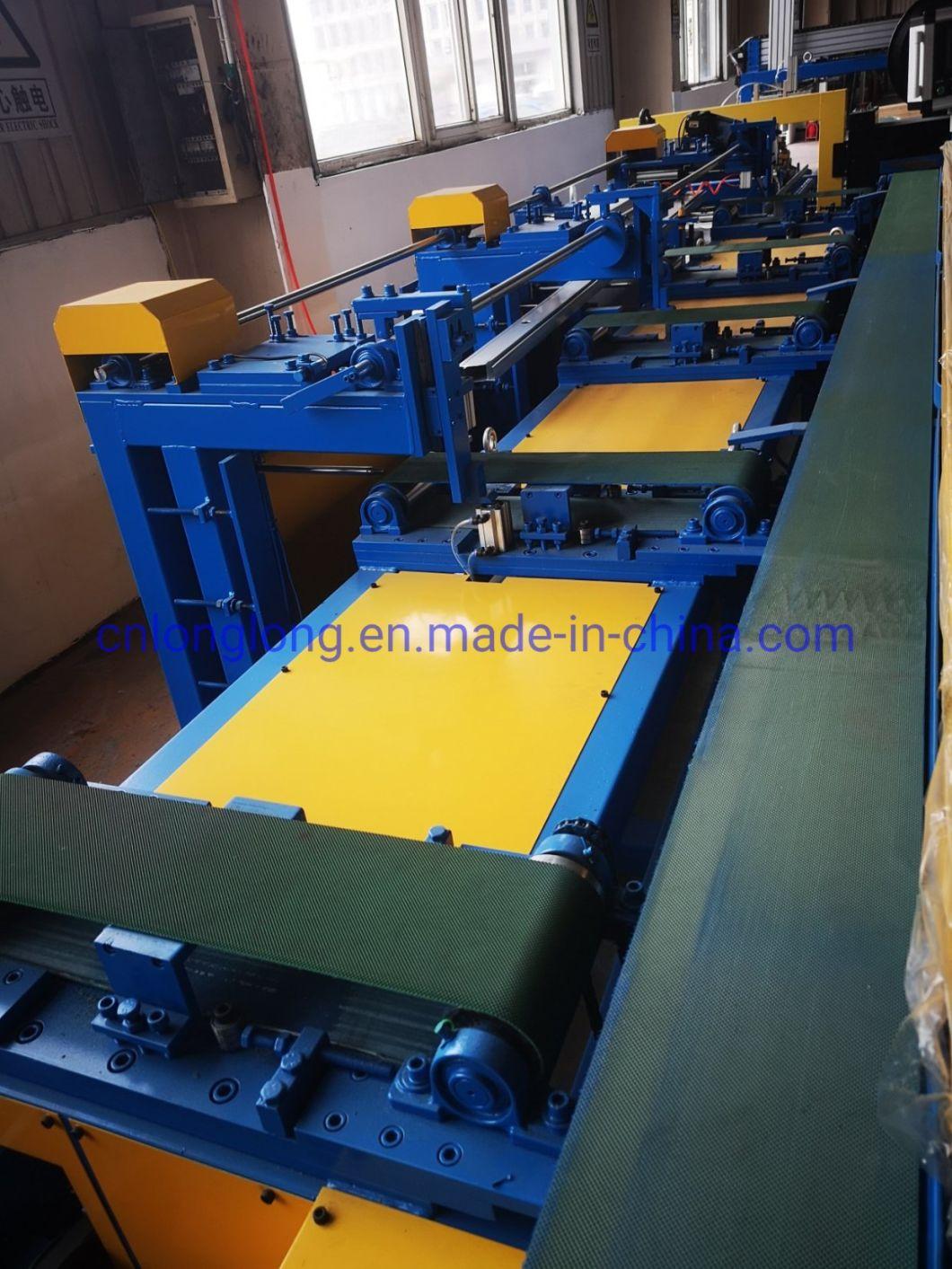

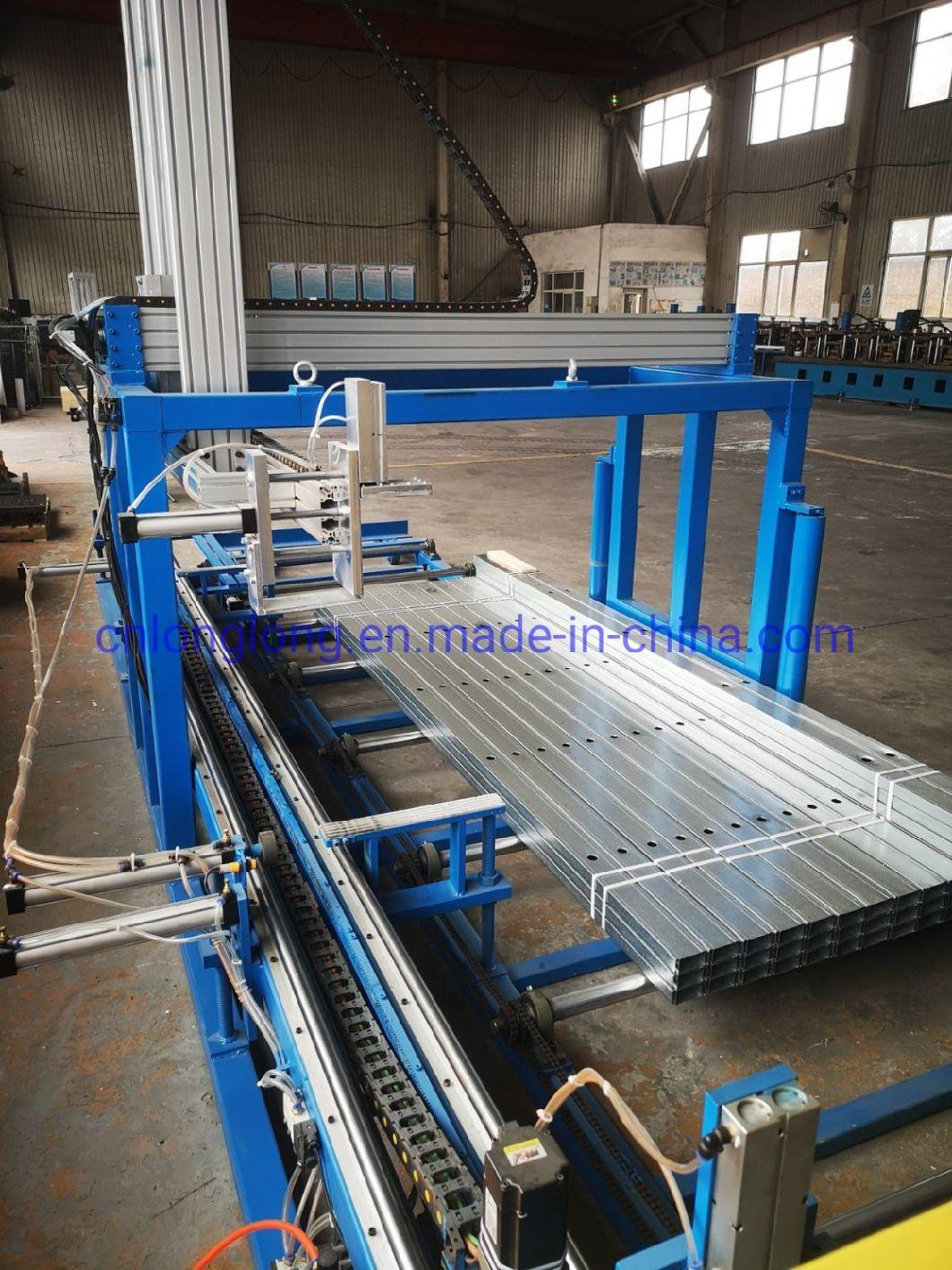

3.Automatic Packer
Patent Certificate
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
