China Supplier Powder Spray Booth/Powder Paint Booth
Shandong Leantro Green-Tech Co., Ltd.- Type:Powder Coating Booth
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO, SGS
- Condition:New
- Circulation Fan:1 Set of 7.5kw Fan
Base Info
- Model NO.:ZC-PCB25001
- Filter Qty:6 Sets
- Solenoid Valve:6 Sets
- Lights:6 Sets
- Controller:Digital Pulse Controller
- Transport Package:Carton or Wooden Box
- Specification:2500*2500*2200mm
- Trademark:Leantro
- Origin:China
- HS Code:8424899990
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. ZC-PCB25001 Filter Qty 6 Sets Solenoid Valve 6 Sets Lights 6 Sets Controller Digital Pulse Controller Transport Package Carton or Wooden Box Specification 2500*2500*2200mm Trademark Leantro Origin China HS Code 8424899990 Production Capacity 100 Sets/MonthProduct Description

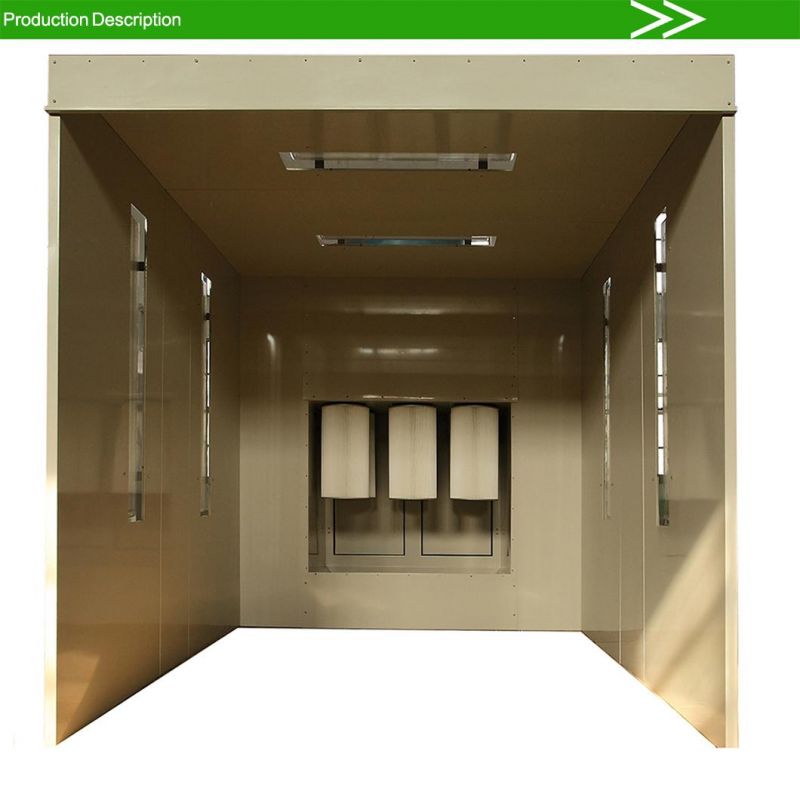

China Supplier Powder Spray Booth/Powder Paint Booth>> This kind of powder spray paint booth allows painting workers to walk in and do the painting on surface of workpiece. After painting, workers also could move the trolley with workpieces directly into the powder curing oven, much more suitable for long workpieces.
>> The main parameters of standard model are as followings:
Structure | Assembling structure, easy to transport Ground type, staff could go inside for painting |
External Size(mm) | 2580(W)*3355(D)*3040(H) |
Internal Size(mm) | 2500(W)*2500(D)*2300(H) |
Entrance Size(mm) | 2500(W)*2300(H) |
Cabin System | Made by galvanized steel, powder coated on the surface with high glossy powder coating. |
Powder Recovery System | Dust filter cartridges*6 sets, each size 600mm*Ø320mm Solenoid valves*6 sets, the holeØ20mm, DC24V Automatic pulse blowback to recovery the powder |
Circulation System | 1 set of centrifugal blower, 7.5kW motor, air flow 6000~9000m³/h The blower is connected with cabin by anti-flame flexible tube. The exhaust vent of the blower could be adjusted in four directions |
Blower Holder System | Made by 80*80 square tubes Independent from the booth to prevent the resonance and reduce the noise. |
Power Supply | 380V/3phase/50Hz or customized |
Lighting System | 6 sets of LED lights, high brightness and energy saving, 18W each, long lifetime and could reach the rated brightness within 1s. |
Control System | 1 set, control the fan, lights and powder recovery system |

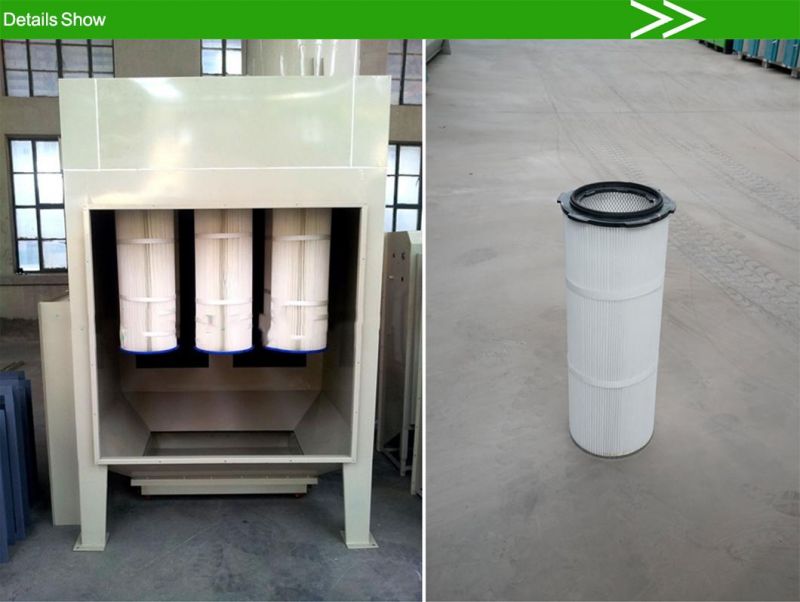

>> Powder Recovery System:
-With dust collecting drawer, easy to clean.
-Dust filter cartridges*6 sets, each size 600mm*Ø320mm
-Solenoid valves*6 sets, the holeØ20mm, DC24V
-Automatic pulse blowback to recovery the powder

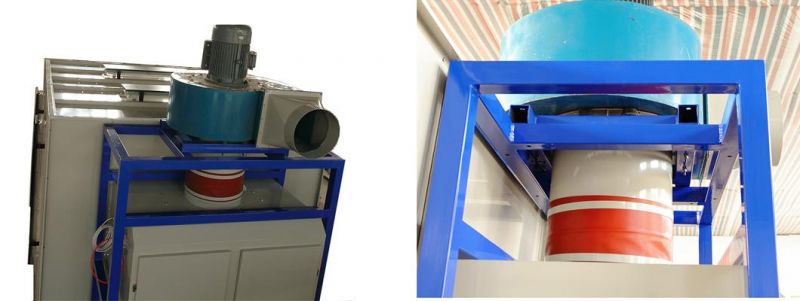

>> Circulation System:
-1 set of centrifugal blower, 7.5kW motor, air flow 6,000 ~ 9,000m³/h
-The blower is connected with cabin by anti-flame flexible tube.
-The exhaust vent of the blower could be adjusted in four directions
>> Blower Holder System:
-Made by 80*80 square tubes.
-Independent from the booth to prevent the resonance and reduce the noise.
>> Lighting System:
6 sets of LED lights, high brightness and energy saving, 18W each, long lifetime and could reach the rated brightness within 1s.

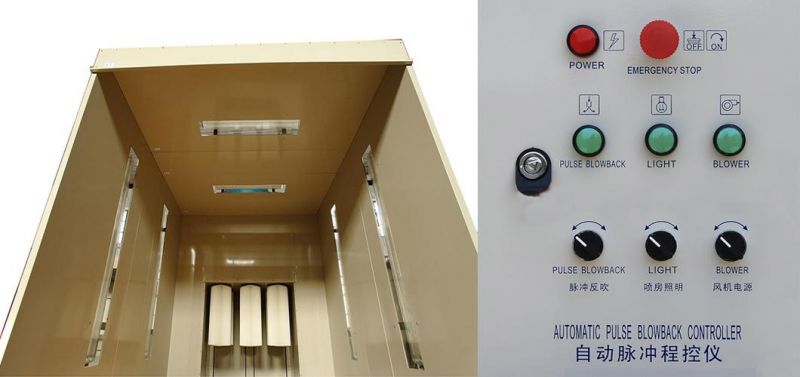

>> Control System:
1 set, control the fan, lights and powder recovery system.
Shandong Leantro Green-Tech Co.,Ltd is located in Zouping County, one of China's top 100 counties. Since its establishment, the company has been committed to the research and development of spray paint booth, dust collector, electrostatic powder spraying equipment and waste gas treatment and relevant production work.
We has always pursued and implemented the business philosophy of "innovation, green, environmental protection, energy saving", and developed high-end products in strict accordance with international standards of ISO9001 and CE. In the fierce competition market, it has established a mature professional sales and after-sales team. Its products are exported to Australia, Saudi Arabia, Oman, Qatar, Russia, Germany, the United Kingdom, the United States, Brazil and many other countries and regions.
