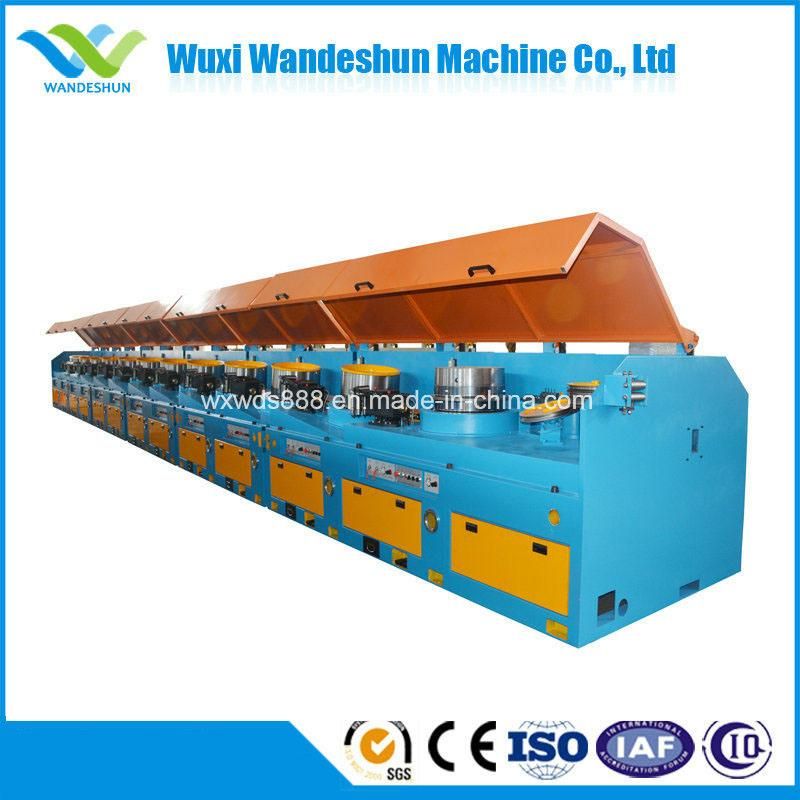

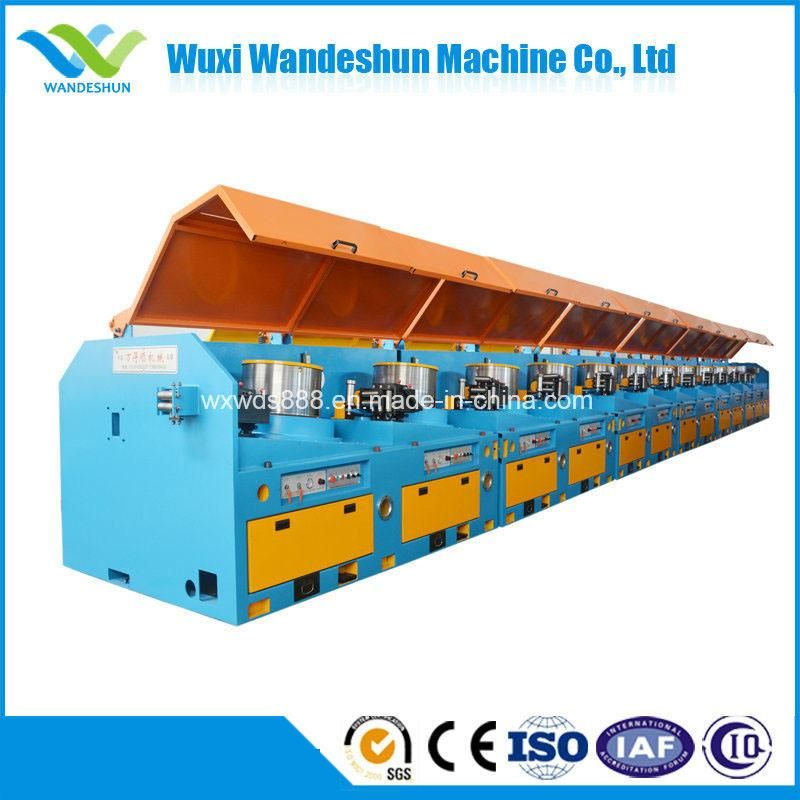

Wuxi Famous Brand Dry Type Carbon Steel Wire Lz10/560 Straight Line Wire Drawing Machine

Wuxi Wandeshun Machine Co., Ltd.
  • Type：LZ Straight-Line Metal Drawing Machine
  • Metal Material：Steel
  • Outlet Diameter：0.4-3.5mm
  • Max.Inlet Wire Dia.：6.5mm
  • Block Dia.：560mm
  • Max. Number of Block：12

Base Info

  • Model NO.：LZ-560
  • Certification：REACH, RoHS, ISO
  • Condition：New
  • Coulor：Any
  • Voltage：380,415,440,220
  • Drawing Material：High, Medium, Low Carbon
  • Warranty：One Year
  • Market：All of The World
  • After Sell Service：Engineers Available to Service Outside
  • Power：18.5-30kw
  • Technology：Complete Program in Offer
  • Transport Package：PE
  • Trademark：wandeshun
  • Origin：Wuxi
  • HS Code：8463102000
  • Production Capacity：300 Set One Year

Description

ItemsUnitLZ9-12/1200LZ10/800LZ9/700LZ10/560LZ10/400Reel diametermm900800700560400Draw passagetime9-121091010Incoming diammΦ14-8Φ10-8Φ8-6.5Φ6.5-5.5Φ14-8Outgoing diammΦ5-3Φ4-3Φ3-2.5Φ2-1.8Φ1-0.8Wire darwing linem/min300360480720840Incoming strengthMpa≤1300≤1300≤1300≤1300≤1300Total compressibility%87.24-85.9484-85.9485.94-85.2190.53-89.2987.24-84Average compressibility%20.48-19.5818.42-19.5819.58-19.1321.00-20.0218.61-16.74Single motor powerKw110-9090-5575-5537-2215-7.5
