High Quality Metal Iron Steel Plate Coil Slitting Machine
Tianjin Haixing Imp. & Exp. Co., Ltd.- Type：Slitting Machine
- Usage：Sheet
- Voltage：380V
- Automatic Grade：Non-Automatic
- Principle：Rolling and Slitting
- Certification：TUV, CCC, ISO9001, CE
Base Info
- Model NO.：HX-S
- Warranty：24 Months
- Customized：Customized
- Condition：New
- Name：1250mm Simple Slitting Slitter Machine for Sale
- Material of Frame：(High Grade) 80mm H Shape Steel Welding
- Thickness of Middle Plate：14mm
- Step of Forming Roller：4steps
- Diameter of Shaft：65mm
- Drive Type：by Chain
- Chain：19.05 mm (High Grade)
- Bearing：6210 (High Grade)
- Reducer：5# (High Grade)
- Line Speed：10-12m,Min
- Feeding Width：914-1250mm
- Suitable Coil Thickness：0.3-1mm
- Cutter：3 Blades or According to Customer′s Need
- Size：1350*1500*1200mm
- Weight of Machine：450kgs
- Transport Package：Export Standard Package for Container or According
- Specification：1350*1500*1200mm
- Trademark：HX
- Origin：China
- HS Code：84552210
- Production Capacity：50set,Year
Description

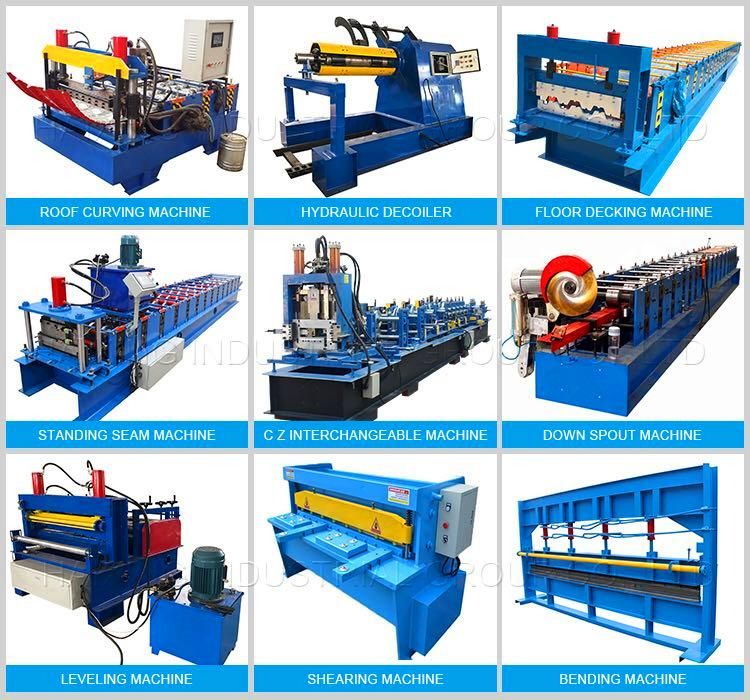

♥ Our Company Main Roll Forming machines

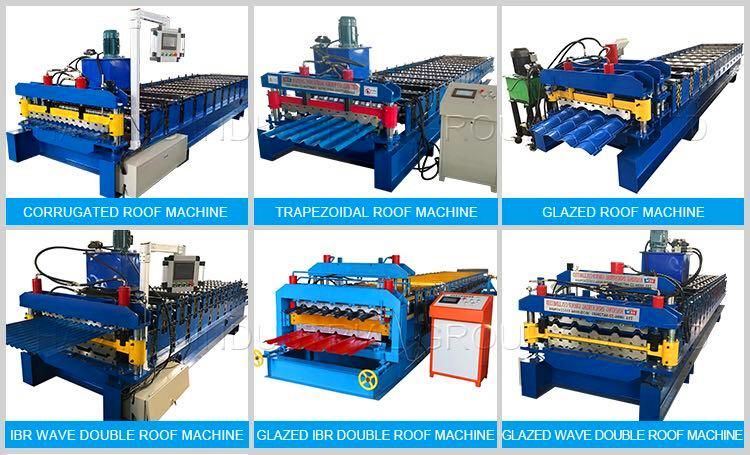

1.Different types roof profile drawing forming machine ;
2.Curve roof roll forming machine ; 3.Ridge cap roll forming machine ;
4.Floor deck roll forming machine ; 5.Rain gutter roll forming machine ;
6.Down pipe roll forming machine ; 7.Highway guardrail roll forming machine ;
8.Roller shutter door forming machine ; 9.Door frame roll forming machine ;
10.CZU purlin roll forming machine ; 11.Light keel roll forming machine ;
12.Slitting machine (lines); 13.Shearing/bending machine ;
14.Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils) and so on .
