• Model NO.：W12S-12X3200
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：30 Units,Month

Basic Info.

Model NO. W12S-12X3200 Trademark HAVEN Origin China HS Code 8459 Production Capacity 30 Units/Month

Product Description

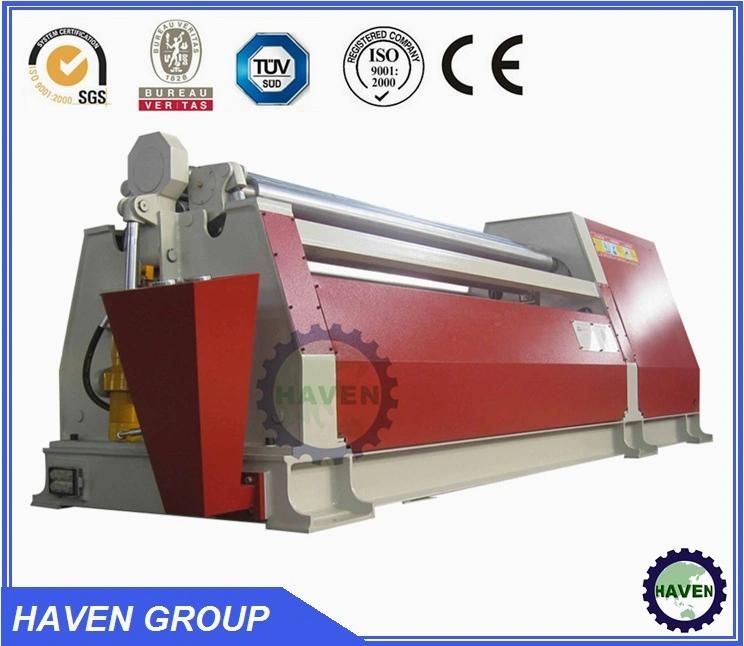

                            W12S Series 4-Roller Plate Bending Machine Plate Rolling Machine





Main functions:
The machine is with 4 Rollers.
Top roller can only rotary movement, can not up-down.
Bottom rollers can move up-down and Rotary, to clamp the steel plate.
2 Side rollers can move up-down in ARC-Line type movement.
Hydraulic motor driving system,2 rollers ( Top roller and Bottom roller ) powered drive movement
Can do pre-bending and Cone bending.
PLC + Touch screen.
Main electric parts are SIEMENS.
Other parts are from China famous brand.

Main specification:

Model	Working Length (mm)	Max. Thickness (mm)	Pre- Bending (mm)	Upper (Φmm)	Under (Φmm)	Side (Φmm)	Motor Power (km)	dimension(cm)
W12S-4x2000	2000	4	3	160	140	120	2.2	392x86x114
W12S-4x2500	2500	4	3	190	170	150	3	402x125x138
W12S-4x3200	3200	4	3	210	190	170	7.5	466x132x137
W12S-4x4000	4000	4	3	270	250	210	5.5	600x143x152
W12S-6x2000	2000	6	4	190	170	150	3	402x125x138
W12S-6x2500	2500	6	4	210	190	170	7.5	466x132x137
W12S-6x3200	3200	6	4	230	210	190	7.5	516x132x137
W12S-6x4000	4000	6	4	300	270	210	5.5	592x149x173
W12S-8x2000	2000	8	6	210	190	170	7.5	416x132x137
W12S-8x2500	2500	8	6	230	210	190	7.5	466x132x137
W12S-8x3200	3200	8	6	270	250	210	11	551x143x152
W12S-8x4000	4000	8	6	330	300	240	7.5	597x161x184
W12S-10x2000	2000	10	8	230	210	180	7.5	416x132x137
W12S-10x2500	2500	10	8	270	250	210	11	500x143x152
W12S-10x3200	3200	10	8	300	270	210	11	542x146x173
W12S-10x4000	4000	10	8	360	330	250	11	605x168x190
W12S-12x2000	2000	12	9	270	250	210	11	451x143x152
W12S-12x2500	2500	12	9	300	270	210	11	492x146x173
W12S-12x3200	3200	12	9	330	300	240	11	547x161x184
W12S-12x4000	4000	12	9	390	360	300	18	605x198x210
W12S-16x2000	2000	16	12	300	270	210	11	442x146x173
W12S-16x2500	2500	16	12	330	300	240	11	497x161x184
W12S-16x3200	3200	16	12	360	330	250	15	554x168x190
W12S-16x4000	4000	16	12	430	390	330	15	628x218x220
W12S-20x2000	2000	20	16	330	300	240	11	440x200x212
W12S-20x2500	2500	20	16	360	330	250	15	504x168x190
W12S-20x3200	3200	20	16	390	360	300	18.5	552x198x210
W12S-20x4000	4000	20	16	460	420	360	18.5	664x258x230
W12S-25x2000	2000	25	20	360	330	250	15	447x161x184
W12S-25x2500	2500	25	20	390	360	300	18.5	502x198x210
W12S-25x3200	3200	25	20	430	390	330	22	578x218x220
W12S-25x4000	4000	25	20	510	460	390	22	664x296x300
W12S-30x2000	2000	30	25	390	360	300	22	479x218x220
W12S-30x2500	2500	30	25	430	390	330	22	528x218x220
W12S-30x3200	3200	30	25	460	420	360	30	614x258x230
W12S-30x4000	4000	30	25	540	510	440	30	700x305x300
W12S-35x2000	2000	35	28	430	390	330	30	430x250x245
W12S-35x2500	2500	35	28	460	420	360	30	564x258x230
W12S-35x3200	3200	35	28	510	460	390	37	630x258x230
W12S-35x4000	4000	35	28	650	550	480	45	650x300x300
W12S-40x2000	2000	40	32	460	420	360	37	450x250x245
W12S-40x2500	2500	40	32	510	460	390	45	480x250x245
W12S-40x3200	3200	40	32	540	500	440	45	650x305x300
W12S-50x3200	3200	50	40	650	550	480	55	650x360x350
W12S-60x3200	3200	60	48	760	680	580	75	750x450x415
