• Model NO.：LT
• Transport Package：with Film in Safe Packing
• Specification：2300*1220*1400
• Trademark：CANDID
• Origin：China
• HS Code：84633000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. LT Transport Package with Film in Safe Packing Specification 2300*1220*1400 Trademark CANDID Origin China HS Code 84633000 Production Capacity 10 Sets/Month

Product Description

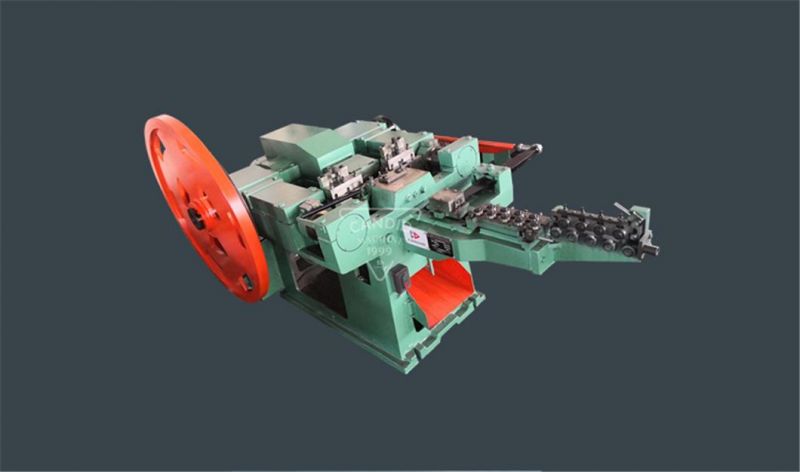

High speed nail making machine with CE certificate


Machine introduce


High speed automatic nail making machine is applied to requirements for making nails with large batch, high precision and high production capacity. High speed automatic nail making machine is featured by outstanding safety performance, stable quality, high reliability, convenient use and maintenance. PLC control and equipped with full-range optically controlled wire disorder shutdown system.
.

Nail Length: 10-100mm
Nail Diameter:1.1-4.0mm
This machine adopts plunger type stricture so as to ensure the features such as high

Speed, low noise and less impact. Especially, it can make the high quality of nails.

Each nail making machine supply related nail mould, nail knife and punch pin ect spare parts



Main Technical Parameter


Specifiction/Model	LT-2D	LT-3D	LT-4D	LT-4E
Dia.range of nail	1.1-2.4mm	1.8-3.4mm	2.5-4.1mm	2.5-4.0mm
Length range of nail	10-50mm	13-75mm	50-100	40-95mm
Designed Output	700pcs/min	550pcs/min	800pcs/min	720pcs/min
Motor power	5kw	7kw	10kw	7.5kw
Weight	2200kg	2500kg	3100kg	3000kg
Dimension(mm)	1700*1000*1300	2300*1220*1400	2900*1800*1250	2000*1400*1100

Product Show
